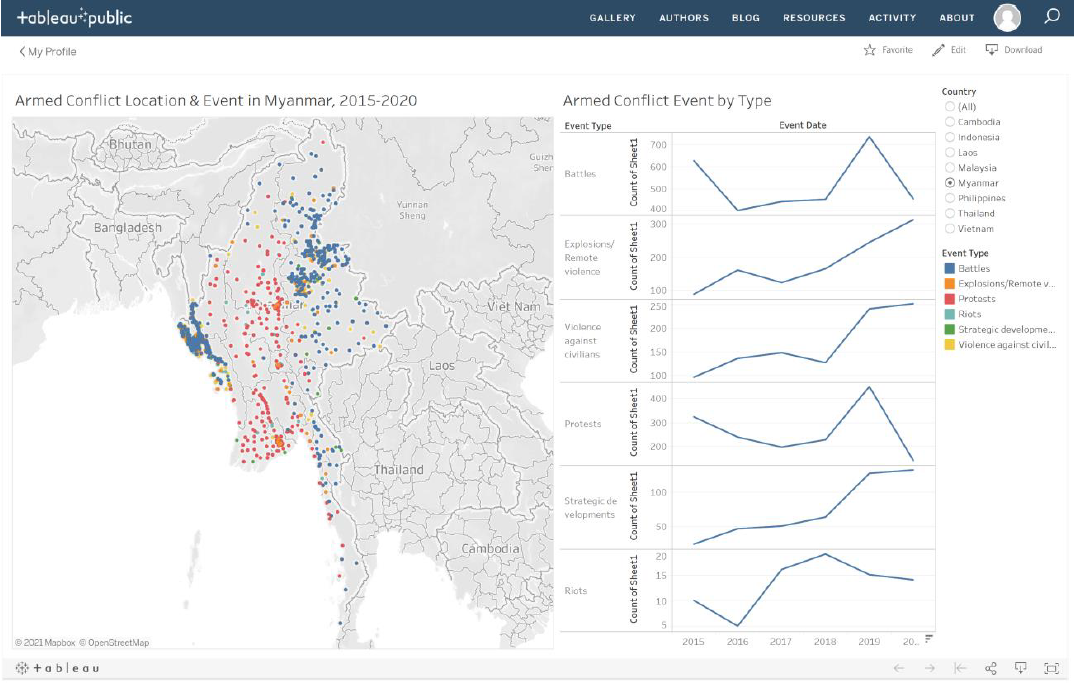

The original visualization using the data available is appended below:
Section A: Critique of Original Viz
This section provides a critique of the original visualization and comments on clarity, aesthetic, and interactivity aspects that could be further improved on. A total of 8 clarity issues, 7 aesthetic issues and 4 Interactivity issues were identified.
Clarity
| S/N | Issue | Comments |
|---|---|---|
| 1 | Cluttered Opaque Dots | This is both an aesthetic and clarity issue - dots overlapping covers other underlying dots that may be overlooked as the dots appear to be 100% opaque, this means useful information is lost, and may even mislead viewers into thinking there are lesser conflicts than really were |
| 2 | Missing Magnitude of Impact | While each dot represents one conflict event, not all events are of equal impact. A peaceful protest would likely have lesser impact in the form of lives lost than a battle, but even this is not always the case. It would be useful to also visualize the number of fatalities on the map to get a sense of the deadliness of the event. |
| 3 | Uninformative Titles | Titles for both the viz and the legend are accurate, which is commendable. However, more information could be provided (e.g. clarify how many events do each dot represents on the map; what is the unit of measure for the time series viz |
| 4 | Confusing Repeated Color | Both the geospatial map and the time series viz uses the same shade of blue, together with the fact that the legend was placed beside the time series viz, at first glance, it appears as if the time series is only plotting changes for Battles events, which are denoted by the same shade of blue on the map. |
| 5 | Unclear Axes for Time Series Viz | It is unclear what “Count of Sheet1” is referring to, and what exactly is the count for and what ‘Sheet1’ is. |
| 6 | Inconsistent Y-Axis scale | The Temporal viz in the trellis panes also differ from each other: from the counts for Battles from around 400 to 700 to the counts for Riots lesser than 20, they all look similar in scale. The changes are also exaggerated for those in smaller scales, distorting a realistic sense of comparison |
| 7 | UnInformative Temporal Viz | The time series viz, in itself, does not provide any informative insights, other than the actual changes in the count of each types of conflict event. There is no clear patterns or trends observed in the trellis view, and with the inconsistent Y-Axis, we cannot even formulate meaningful comparison between the event counts or comment much about the trends (since events with smaller counts would have flatter lines with more minute changes if the scales are aligned) |
| 8 | Missing Credit for Source of Data | The source of data is mysteriously missing. This reduces the reliability of the data used (and could also get the viz producer into trouble, given the terms-and-condition for use of the data from ACLED) |
Aesthetic
| S/N | Issue | Comments |
|---|---|---|
| 1 | Cluttered Opaque Dots | As mentioned earlier, this is both an aesthetic and clarity issue; apart from the lack of clarity, the cluttered dots also made it visually annoying when some dots are partially or fully hidden and it is difficult to pinpoint the exact event even when we attempt to hover over |
| 2 | OVerly-striking Map Background | Dark background for the land masses makes it less contrasting with the dots and the boundary lines |
| 3 | Inappropriate Placement of Legend for Map | While the color scheme is meant for the geospatial map, it is placed far away, separated by the time series viz. Beyond confusing, it also requires viewers’ eyes to track across the time series viz to see what color on the map corresponds to what event on the legend - viewers may even get distracted while doing that, or worse, frustrated. |
| 4 | Ugly Y-Axis for Temporal Viz | Other than the fact that the inconsistent Y-Axiss distort the sense of comparison, it is also ugly when there are different “gaps” between the tick marks. More critically, the repeated “Count of Sheet1” in itself is redundant, it could have been combined together as one. And lastly, the orientation of the “Count of Sheet1” means viewers have to tilt their head to read it - not as user friendly. |
| 5 | Lack of Grid Lines | There is also a lack of vertical grid lines to help guide viewers to map the count values to the years. |
| 6 | X-Axis Abruptly Cut-Off | X-Axis of the time series viz is cut-off at the end, with the year ‘2020’ appearing chopped up. |
| 7 | Disproportion of the Visualizations | The geospatial map takes up half the canvas, whereas the temporal viz had to share real estate with the legend and filter - this makes the overall visualization appear lopsided. |
Interactivity
| S/N | Issue | Comments |
|---|---|---|
| 1 | Unable to Toggle Year of Event | While the geospatial map plotted out the conflict locations, it does not offer the option to zoom in to individual year to see how situation developed through the years |
| 2 | Uninformative Tooltip | Tooltip was left as default without proper phrasing and explanation on the values of the variables. Which does not help with enhancing the clarity of the two visualizations (viewers would not have very applicable use of the longitude and latitude information provided, for example). |
| 3 | Lack of Interactivity | Other than the toggling of Country, the viz does not allow changing other variables such as Actors involved or the type of conflict event. |
| 4 | Unable to Have Reactive Response to Selected Data | When data on one viz (especially the temporal viz) is selected, the other visualization does not highlight the corresponding data (e.g. when Myanmar is selected on the temporal viz, the geospatial vis does not highlight only the Myanmar dots |
Section B: Suggested Improvement
This section provides some suggested improvements that could be implemented to resolve issues discussed in Section A.
Clarity
| S/N | Issue | Suggested Improvement |
|---|---|---|
| 1 | Cluttered Opaque Dots | Increase the alpha / Decrease the opacity of the dots, so as to allow overlapped dots to be visible |
| 2 | Missing Magnitude of Impact | Incorporate the Fatalities numbers as one of the variables in the visualization. In this case, it will be a multiple-variable visualization, where dot can continue to represent one event count, color as the event type, and size as the deadliness / number of fatalities |
| 3 | Uninformative Titles | Include subtitles to better inform viewers of the visualization that they are looking at, especially key critical information, such as what each dot on the map represents. |
| 4 | Confusing Repeated Color | Avoid using repeated color to represent elements of totally different nature to prevent unnecessary confusion. |
| 5 | Unclear Axes for Time Series Viz | Provide clear axes title to make sure viewers are able to identify with the data being presented. Unit of measure should also be specified if need be. |
| 6 | Inconsistent Y-Axis scale | Axes in trellis panes should be consistent as much as possible to aid comparison. If not possible, alternative presentation approaches should be explored |
| 7 | UnInformative Temporal Viz | The trellis pane viz does not have any value-add in the story told - perhaps a simple get-around is to just put all the different types in on continuous axis and differentiate the lines by different colors (consistent with what is on the map). However, authors should be mindful of the story they are interested to tell - if the changes within two particular years are not important to the viewer (i.e. how the lines change), having many kinks in the line creates more confusion. In this case, since conflict events are more ad-hoc in nature, it is more likely for viewers to be interested to know how the numbers changed from one timeframe to another (e.g. 2010 to 2020), instead of all the changes in between. A slopegraph would provide that clearer picture without additional encumbrances. If user really wants to, an option to change the start and end year may be provided to allow users to toggle between the start and end timeframe that they wish to look at. |
| 8 | Missing Credit for Source of Data | Include a source note to credit data owner! |
Aesthetic
| S/N | Issue | Suggested Improvements |
|---|---|---|
| 1 | Cluttered Opaque Dots | Increase the alpha / Decrease the opacity of the dots, so as to allow overlapped dots to be visible |
| 2 | OVerly-striking Map Background | Reduce the washout of the background map |
| 3 | Inappropriate Placement of Legend for Map | Place legends where they are easy to be referred by viewers. Legends are meant to enlighten, not create more confusion. |
| 4 | Ugly Y-Axis for Temporal Viz | Make sure axes are consistent and tick marks evenly spaced out. Titles should also be horizontally oriented to reduce the need for uncomfortable head-tilts. Bottomline is: elements that are not useful in improving the story the viz is telling should be removed. |
| 5 | Lack of Grid Lines | If need be, grid lines or point dots should be provided to guide viewers track the data points along the x and y axes. Or, clever redesigning of the viz can be done to side-step the issue by removing the need for guiding grid lines (hint: perhaps we do not need all the years on the x-axis) |
| 6 | X-Axis Abruptly Cut-Off | Make sure axes marks are properly spaced out and visible; if needed, ensure flexibility is incorporated to allow viewers to change the size according to the size of their screen (in Tableau, change the view to “Entire View”). |
| 7 | Disproportion of the Visualizations | Ensure real estate of the dashboard is maximized and visualizations are evenly-spaced and proportionate to one another |
Interactivity
| S/N | Issue | Suggested Improvements |
|---|---|---|
| 1 | Unable to Toggle Year of Event | Create additional filters to allow toggling of year. In fact, to better visualize changes, animation may be considered. |
| 2 | Uninformative Tooltip | Tooltip provides a good opportunity to better inform viewers of the story behind each data point, and should be put to good use. |
| 3 | Lack of Interactivity | Include other variables as filters/parameters to better aid users/viewers decipher and gain insights from the visualization |
| 4 | Unable to Have Reactive Response to Selected Data | Include reactive response to allow selected data to highlight on the other visualization |
Discussion on Geospatial Visualization
There are several commonly-used geospatial visualization techniques available, these include Cartograms, Choropleth maps, Proportional Symbols, and Dot Density Maps. The original viz adopted the latter technique. Amongst them, the former (Cartograms) is the least popular, as “their use is often more for their theatrical value (i.e. to grab the attention of an audience) and less for their ability to help folks understand subtle details of geographic datasets”
The dot density maps is useful in showing “diferences in georaphic distributions across a landscape”. In the original viz, a one-to-one dot density map (one dot represents one count) is used. The dot density map has the following advantages:-
- Raw data and simple counts or rates/ratio can all be mapped (as opposed to Choropleth maps which requires the latter)
- Data need not be tied to enumeration units (that is, it does not require the variable of interest to be conceptually measurable anywhere in space)
- It works fine with black and white when color is not an option (and if color is available, it can be used to represent other variable of interest)
Points 1 and 2 are particularly important considerations in the context of our visualization - to visualize incidence of conflict events, further processing of the data (e.g. divide it by the population) would be required in order to adopt the Choropleth technique. Point 3 is an added bonus (given that Tableau has color functions available), since a Choropleth will rely on colors to represent the incidence of conflict event (in this case, potentially event per population), it loses the option to add on another dimension that a dot density map allows using color. In this case, one plausible measure to include, is the type of conflict event. In this case, each dot not only tells us that a conflict occur, but can very intuitively inform us whether it is a protest or a battle.
In fact, proportional symbols may be added onto the dot density map (in fact, it is also possible to add proportional symbols on Choropleth maps - but that is, at this juncture, besides the point). Size of each dot can also be varied to represent another added dimension - one interesting variable is “Fatality”, which allows viewers to appreciate the deadliness of each of the event. With the combination of the size and color use, it is also possible to spot types of events that generally lead to more fatalities (i.e. bigger dots) and whether they concentrate in particular regions/countries. One limitation of proportional symbol, though, is that it could lead to congestion on the map; however, it is a small issue and worthy trade-off for the added information. In fact, increasing the transparency could help alleviate part of the problem Another shortcoming is that readers generally do not estimate the areas of symbols very well - however, for the purpose of this visualization, the sizes are to give general sense of fatalities, especially between different event types, extraction of actual numbers are secondary, and can be complemented by incorporation of useful Tooltips.
In parallel, this is also one major limitation of dot density maps - they are terrible for retrieving numbers from the map, people are generally not patient in manually counting the number of dots in a region to derive the total number of events in the particular region. Similarly, the purpose of the visualization is to give a broad overview of the concentration of a particular conflict type geographically, to extract further detail, useful Tooltips would need to be added. To extract the total number of conflict in the country for the selected years, a complementary viz would be needed (see Discussion on Visualizing Changes below).
In conclusion, a dot density map with each dot representing one event, the color of the dot representing the event type, and the size of the dot representing the number of fatalities, with appropriate filters for users to toggle would serve the visualization objective of this makeover.
Further Discussion on Animating Changes on Geospatial Visualization
According to Daassi, Nigay & Fauvet (2005), Ed Chi’s Visualization Process are structured into four steps, “namely: (1) data, (2) point of view of the data, (3) visualization space and (4) point of view on the visualization space.” Temporal data visualization can be classified based on the different anchoring points between the visualization processes of the temporal domain (i.e. the time element), and the structural domain (i.e. the factor/variable that we are interested in). Hence, the author’s taxonomy are categorized into four main groups, based on the anchoring point between the temporal and structural domains at the four different steps as described at the start of this paragraph. The authors, however, does not explicitly discuss the merits and shortcomings of each of these visualization frames.
The authors, however, did provided a further discussion on the difference between static and dynamic techniques. Dynamic techniques, as defined by the authors, have visual representation that changes automatically, and animation is frequently used to visualize spatio-temporal data. Static techniques, on the other hand, does not change automatically over time. The author of this makeover explored both the static and dynamic techniques with the existing data on hand.
In the exploration of the two models, one trade-off became apparent: dynamic animation allows for viewers to appreciate the shifts in patterns (in this case, location and deadliness of conflict events) without the need for manual toggling; however, in exchange, viewers surrender the autonomy to explore the data on their own terms. In the context of the subject ACLED dataset, with the Year set as the animating factor (i.e. for the viz to dynamically move forward through the years), viewers will not have the option to view the distribution for other time period beyond the yearly frame. In the context of conflict that can drag on through different years and for length of more than years (or decades, for the matter), having the temporal frame fixed at one calendar year may compromise on contextual nuances.
Furthermore, the benefit of having the changes dynamically animated is not strong in the context of conflict events, which occurrences are more ad hoc in nature than other events, such as child mortality or basic education, where changes in their rates are more meaningfully tracked through its temporal progression. In contrast, conflict events are more “opportunistic” - indeed, they may increase or decrease through particular periods of interest, but these are consequently also periods of particular interest - it is unlikely for people to be interested in knowing the number of conflict events in Singapore between 2010 to 2020 simply because it is not a period of any particular interest. Conversely, it is interesting to know the number of conflict events, say, in the Phiippines from Jun 2016, when President Rodrigo Duterte assumed office and declared its “war on drgs” - this is a particular period because it is of particular interest (versus infant mortality rate or education rate, which is more actively tracked and hence the changes year-on-year is more meaningfully analysed).
All in all, the costs to having a dynamic visualization in this context heavily outweighs its benefits. While the author has made an attempt to incorporate an animated dynamic visualization, the eventual decision is for a static model with appropriate filters that allow users to toggle for the time period that they wish to examine freely to be adopted.
Discussion on Visualizing Changes
Temporal plots are aplenty. Candlestick charts, Sunburst diagram, Horizon graph, Calendar Heatmap, or even the Animated Bubble Plot made famous by the Gapminder foundation and Hans Roslings in what is now his classic TED talk, are all examples of temporal plots that data scientists use to visualize change.
One of the most commonly used ones, though, is the line chart that we see in the original visualization. Such line charts are useful to depict seasonal, cyclical, outliers or even co-variation between different series. While the line charts are useful, it does become visually complicated when there are several lines altogether (and if the lines are separated by different panels and axes, it creates other problems such as those discussed in our critque of the original viz). When minor variations between two time periods are not of major concerns or interests, it may be beneficial to remove the complexity by visualizing only the general trend of the series without the volatility within.
Animation come easily to mind when talking about visualizing changes and depicting trends - recall the immortalized story of countries around the world escaping short-lives and poor health as we progress altogether on the income scale. However, as discussed in the section above, they are not without their shortcomings. In fact, one added “inadequacy” of a, say, Gapminder-style animated bubble plot a la Hans Rosling, is the fact that we are not comparing the change in one variable with another along time (i.e. bivariate temporal relationship) - for the purpose of this dataset, we are really interested in only an univariate temporal relationship of the count or fatality of conflict events with time. This is further vindicated by the earlier conclusion we had drawn on the fact that conflict events are more random and ad-hoc in nature, as compared to, for example, infant mortality or education rates.
Another feasible and even simpler method is Slopegraphs. Edmund Tufte explains that Slopegraphs “compare changes usually over time for a list of nouns located on an ordinal or interval scale”. Tufte argues that the advantages of Slopegraphs are as follows:-
- the two columns allows easy reference on how numbers in general have changed over the years;
- the paired comparison allows readers to read down each line to identify how the variable has changed for each of the category/“noun” (in the case of this data set - each country). With added labels, the number associated with each of the nouns is also visibly displayed;
- it shows how two “nouns” (i.e. countries) differ in their rates of change;
- unusual slope stands out from the overall patterns; and
- most importantly, the information is both integrated through the connected contents, and separated in that “the eyes follows deveral different and uncluttered paths in looking over the data”. He argues that this allows organization of complex information hierarchically.
In addition to the above, there is also very minimal (in fact, zero!) non-data ink involved.
Tufte’s use of Slopegraph first came about in 1983, in his book The Visual Display of Quantitative Information. Andy Kirk, in 2013, agrees with Tufte, concurring that slopegraph is the “best way to visually expose the big stories” between two contrasting time period, with Ben Jones adding on shortly after, providing a how-to tutorial, for which some of the methods used in this visualization were referenced from.
Charlie Park, in his posts on 11 July 2011, provided yet a very comprehensive list of various slopegraph-like visualization from the past, and compared them with other alternatives - in summary, his key points were that slope graphs are more layman-friendly than scatter plots and slopes are much easier to read, but caution must be given to use the same data type and units of measurement for both the left and and right sides, lest any force-ranking creates “meaning where there might not actually be any” (and hence misleads viewers). He ended off with a guide on when to use slopegraph - Basically: Any time you’d use a line chart to show a progression of univariate data among multiple actors over time, you might have a good candidate for a slopegraph. - this is exactly the situation we have here on hand!
Park then followed up with another post with a discussion on other examples of Slopegraphs and related types of visualization. One example is the Whiskerslopes, that includes a “revised box plot” on each axis. The added lines could better highlight the oddball values especially in dataset with large changes between the years as a whole; in the context of our visualization, however, the small number of countries plus the fact that the general shift in numbers are less systemic, it is less applicable and may add unnecessarily confusing non-data ink. Park also further added more best practices for the creation and visualization of Slopegraphs, which were taken into consideration and adopted where feasible by the author of this makeover.
Makeover Concept

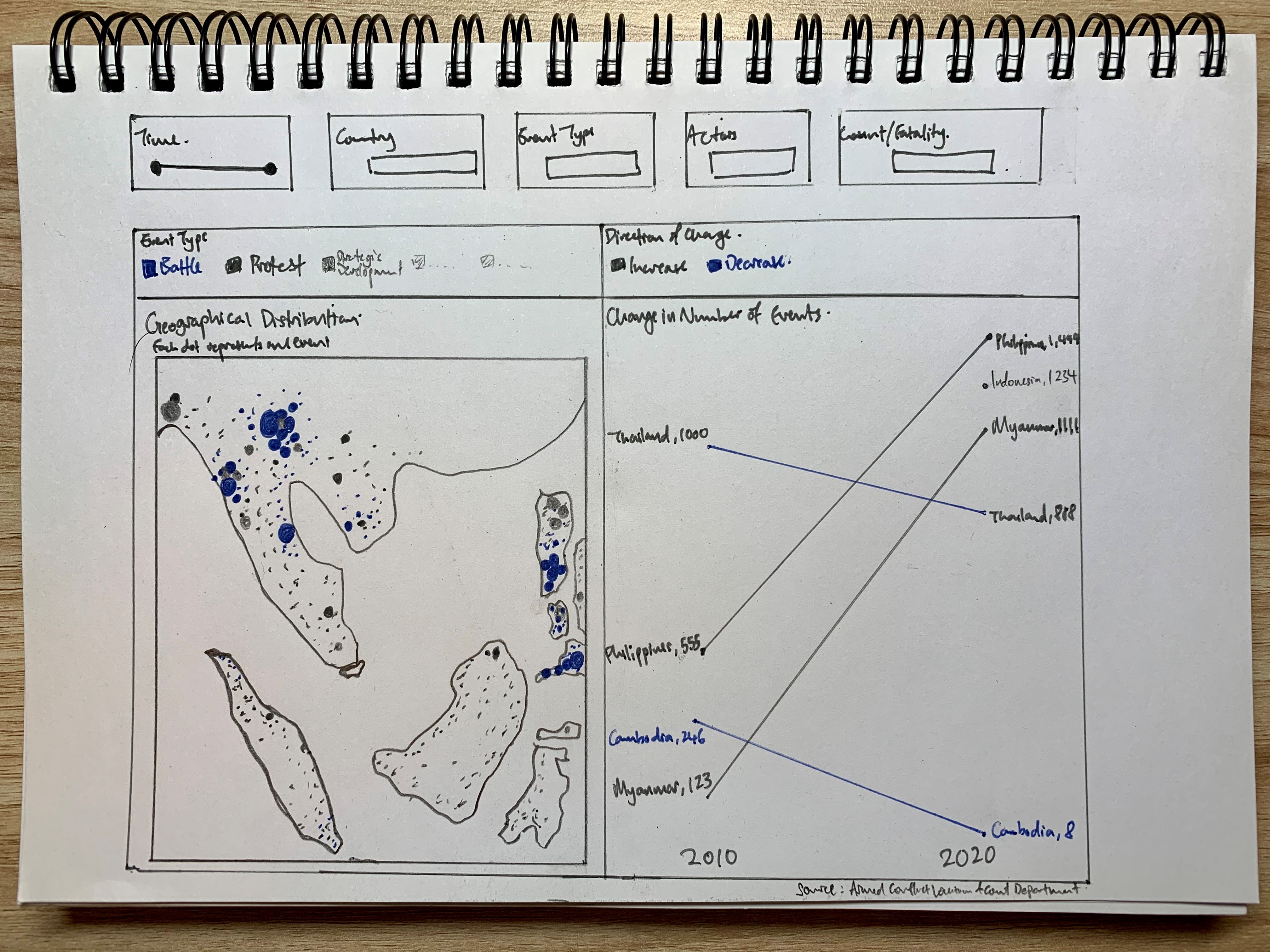

Taking in the points discussed above, a redesigned visualization could look like the following:
Addressing Clarity Issue
| S/N | Issue | Ways in which proposed viz resolve issues identified |
|---|---|---|

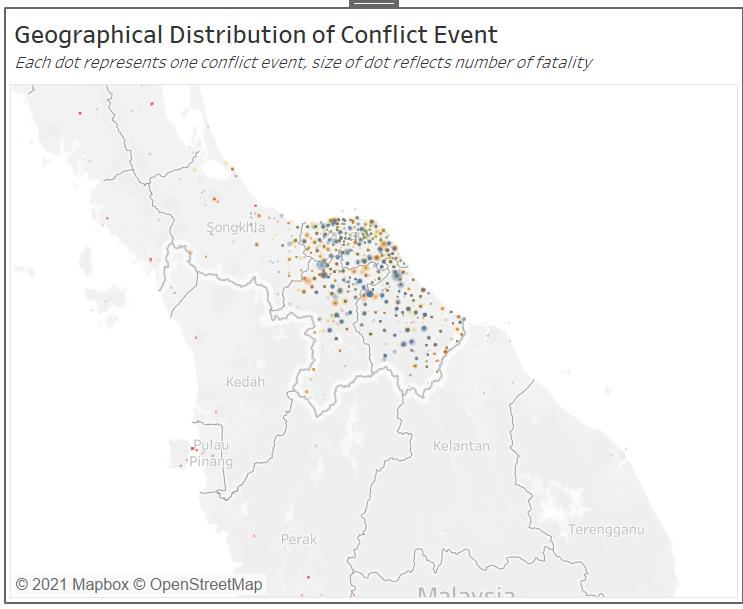

| 1 | Cluttered Opaque Dots | Visualization has appropriate opacity to reduce visual cluttering. Appropriate filters (e.g. year/month, event type) also allow viewers to distill insights based on specific requirements where dots will appear even less cluttered while better achieving viewer’s objective |
| 2 | Missing Magnitude of Impact | Inclusion of Fatality numbers as one additional dimension, taking on the size element, allows the magnitude of impact (or deadliness) of the event to be visualized. peaceful protests and deadly clashes will no longer appear as similar dots. |
| 3 | Uninformative Titles | Titles amended with subtitles included to provide additional critical information about the viz, and hence enhance overall clarity of data presented |
| 4 | Confusing Repeated Color | colors are purposefully chosen and appropriately applied, with repetition avoided as much as possible |
| 5 | Unclear Axes for Time Series Viz | Axes, if provided, should be useful with clear labels and unit of measurement - however, in the case of the slopegraph where labels and measure are presented directly at the start and end of the line, axes are less useful and contributes to redundant non-data ink that may instead confuse, not enlighten, viewers. |
| 6 | Inconsistent Y-Axis scale | Notwithstanding the fact that axes were removed, the trellis layout was altogether revamped to merge the lines (showing just overall changes between two period) onto one common axes, so as to reduce inconsistency in scale when making comparison across country/event types (difference in event types can be found using the filters). |
| 7 | UnInformative Temporal Viz | Line chart was changed to slopegraph for a more informative visualization - more discussion on how it is more informative can be found above. |
| 8 | Missing Credit for Source of Data | Source of data incorporated to add robustness and completeness, while also prevent infringement of intellectual property rights (we read the T&C!) |
Addressing Aethetic Issue
| S/N | Issue | Ways in which proposed viz resolve issues identified |
|---|---|---|
| 1 | Cluttered Opaque Dots | Opacity decreased |
| 2 | OVerly-striking Map Background | Washout of background map reduced |
| 3 | Inappropriate Placement of Legend for Map | Legends appropriately placed and titled to prevent confusion |
| 4 | Ugly Y-Axis for Temporal Viz | Axes removed with labels and numbers directly applied on start/end of lines |
| 5 | Lack of Grid Lines | Grid Lines removed with only 2 points on X-axis remaining (i.e. start and end year) |
| 6 | X-Axis Abruptly Cut-Off | All elements properly spaced out in the entire view, with automatic re-sizing of the viz . |
| 7 | Disproportion of the Visualizations | Real estate of the dashboard is maximized and visualizations are evenly-spaced and proportionate to one another |
Addressing Interactivity Issues
| S/N | Issue | Ways in which proposed viz resolve issues identified |
|---|---|---|
| 1 | Unable to Toggle Year of Event | While animation is rejected based on earlier discussions above, the inclusion of year, and, in fact, month filter, allows viewers to zoom in on specific timeframe of interest |
| 2 | Uninformative Tooltip | Useful tooltips provided in both viz |
| 3 | Lack of Interactivity | Variables as filters/parameters included to better aid users/viewers decipher and gain insights from the visualization |
| 4 | Unable to Have Reactive Response to Selected Data | Reactive response to allow selected data to highlight on the other visualization is included. In fact, the temporal slopegraph viz is used as a filter to allow the geospatial map to zoom into a particular country when the country is seleced in the temporal viz. |
Section C: Redesigned Visualization

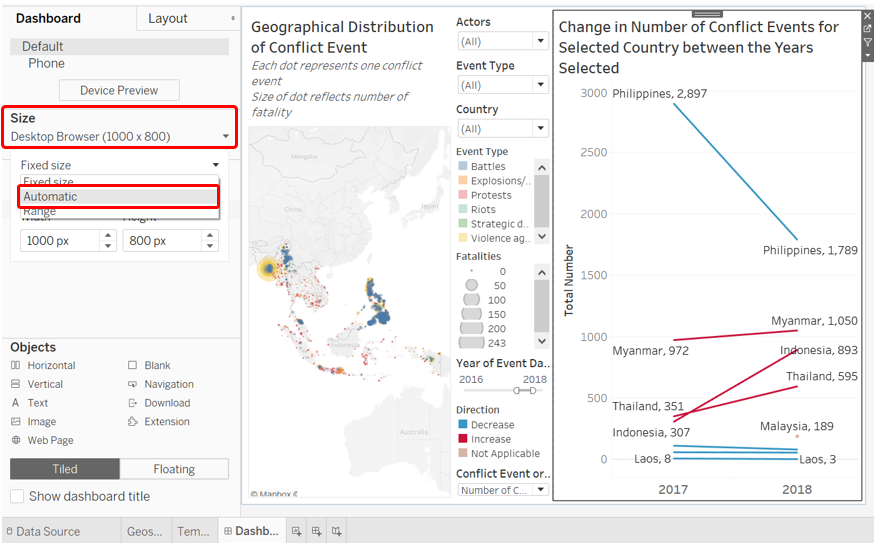

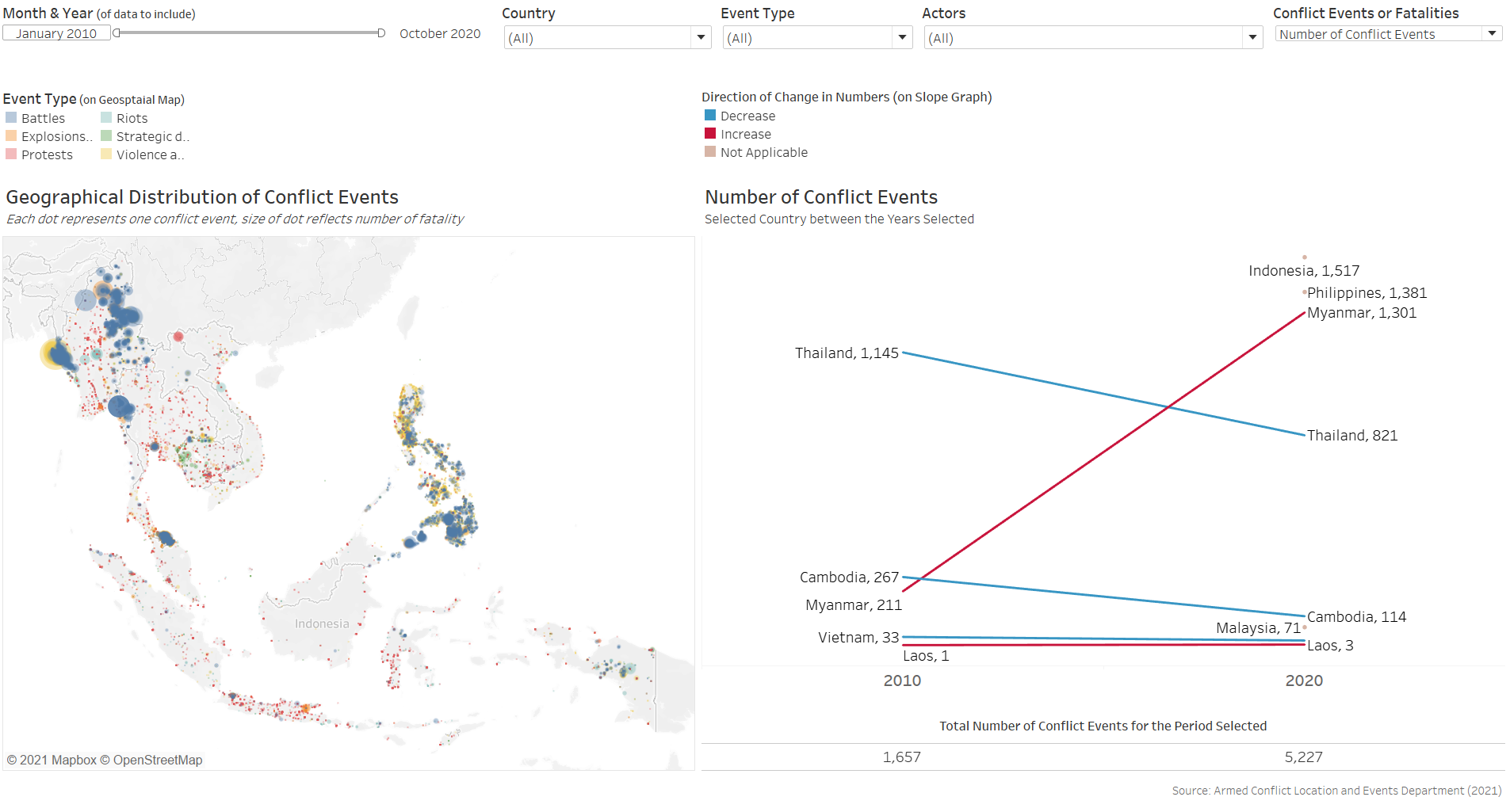

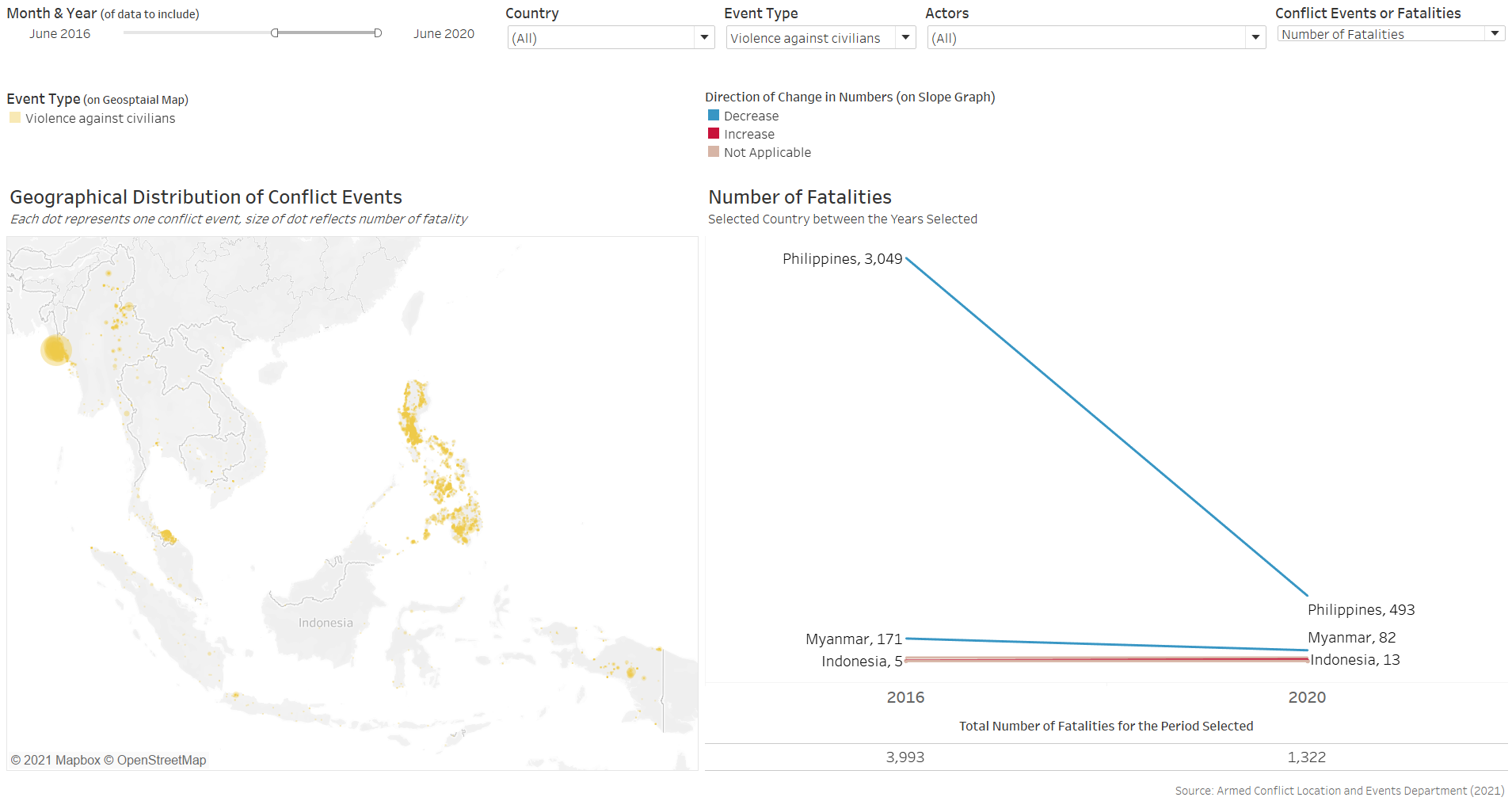

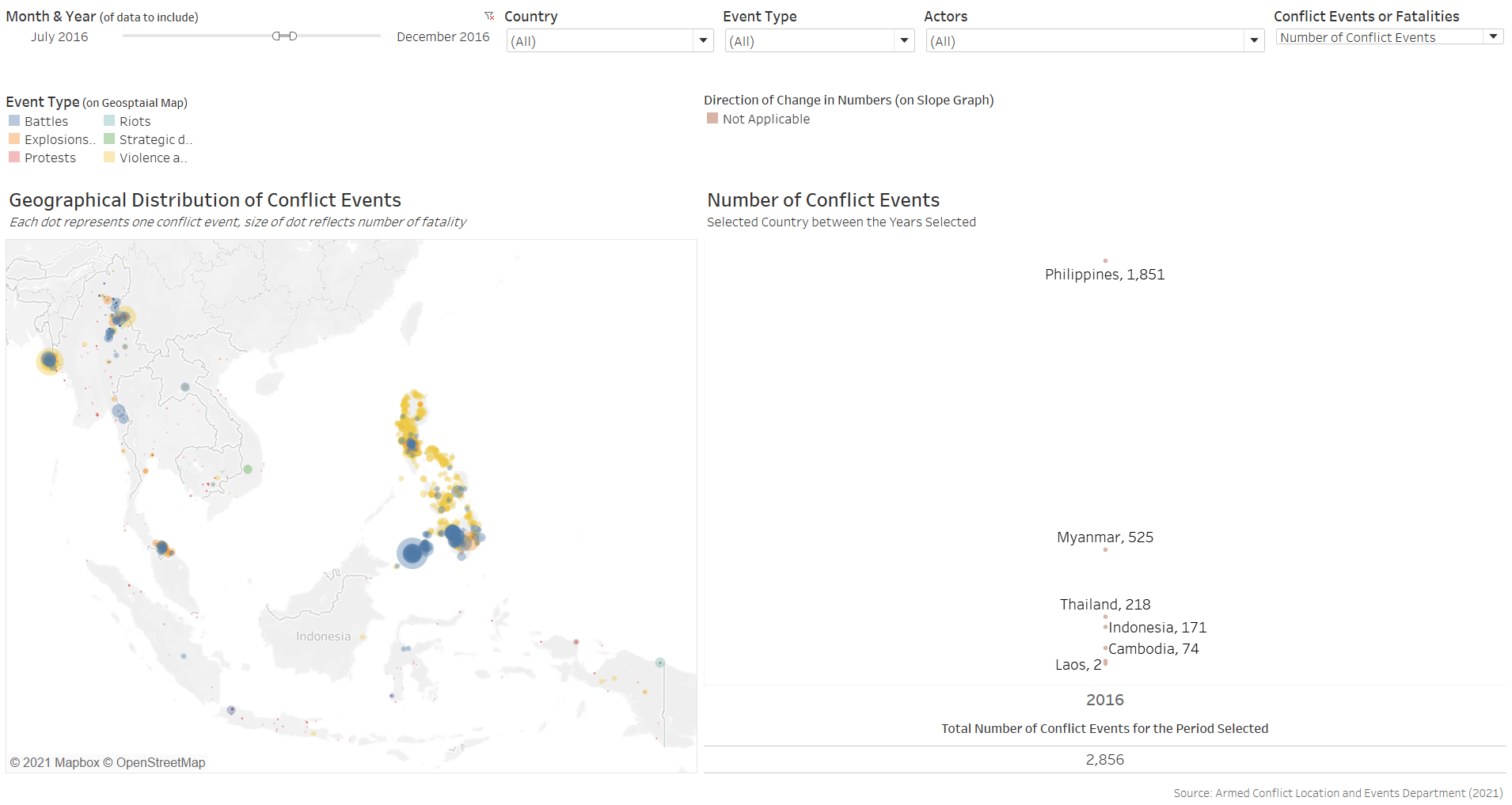

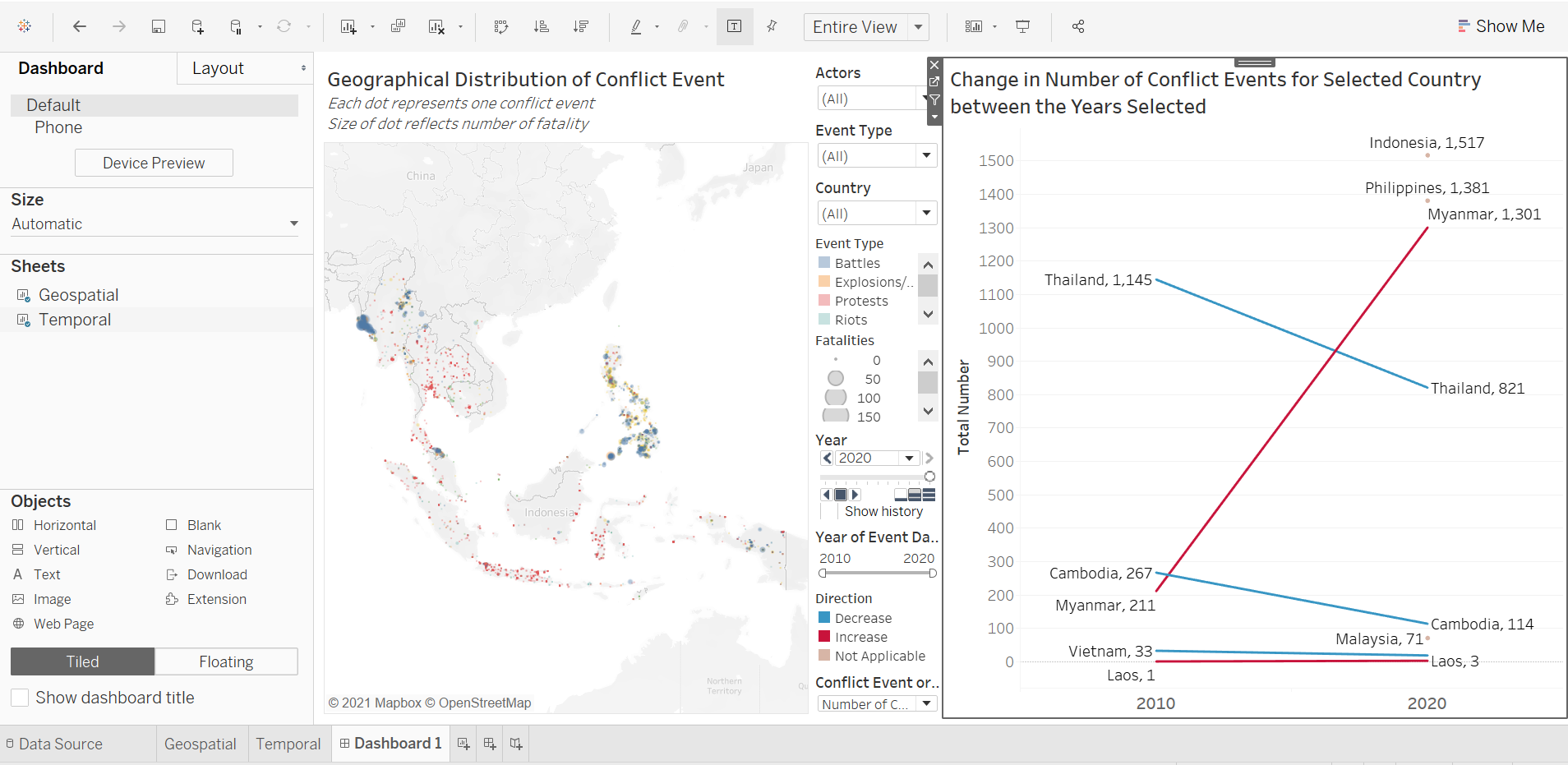

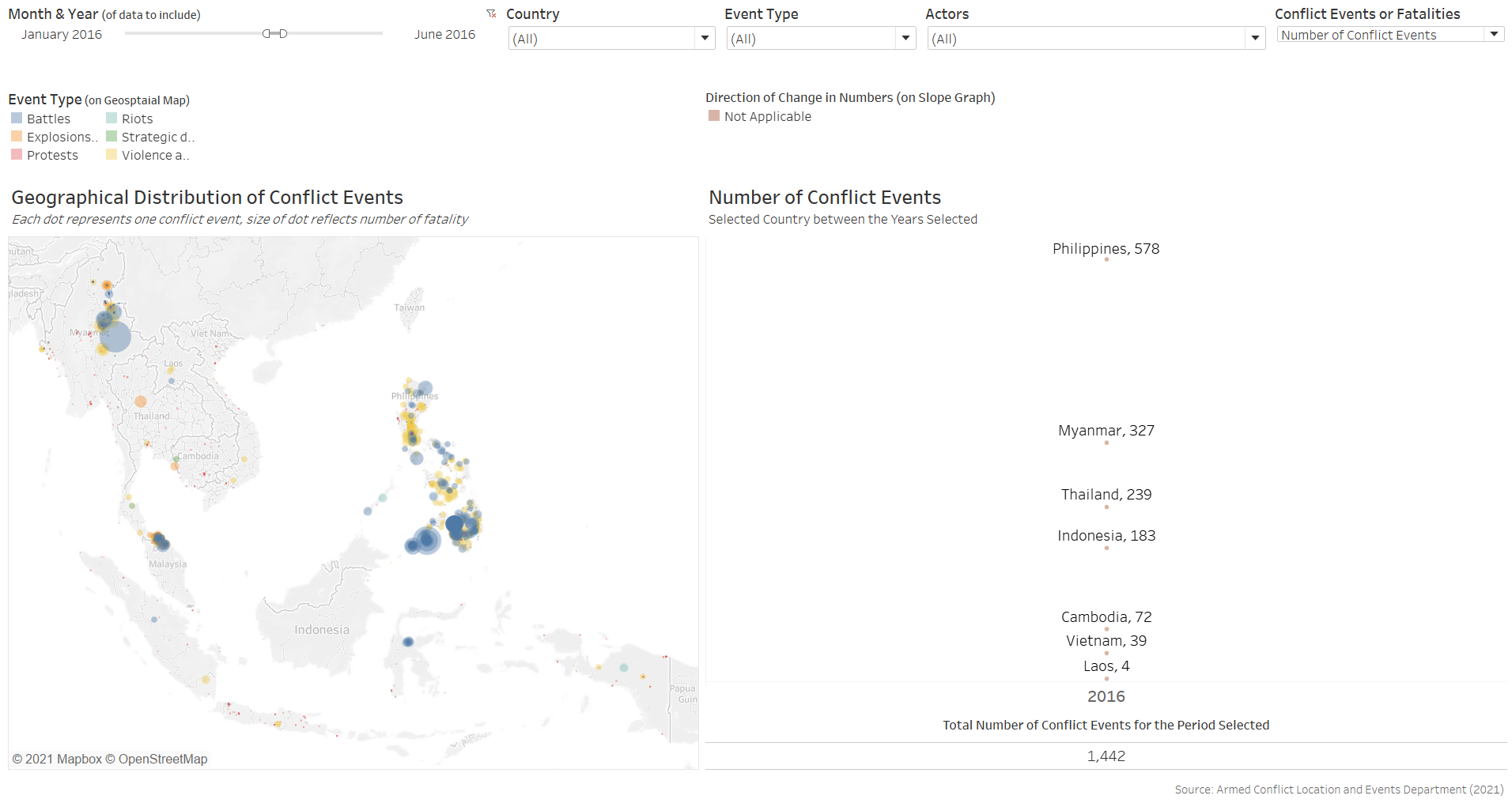

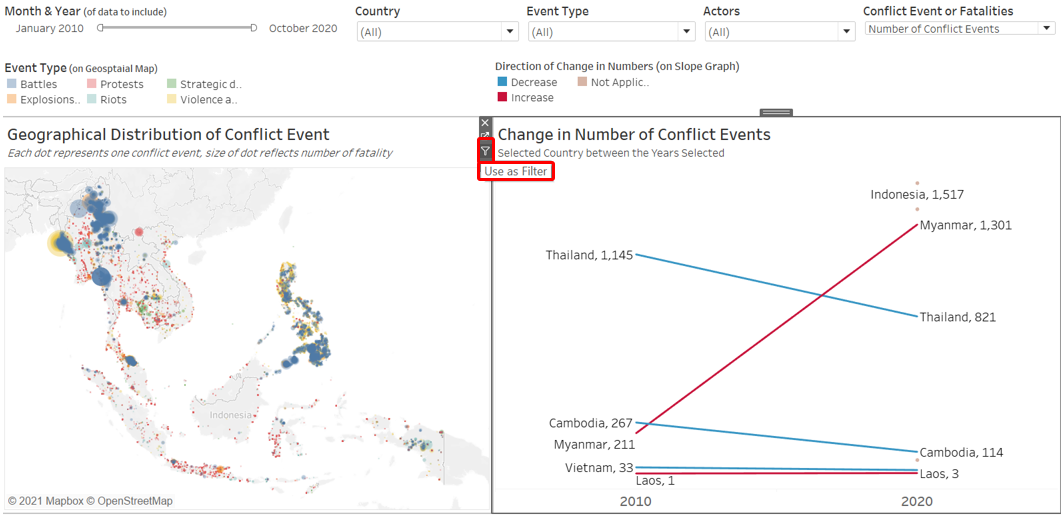

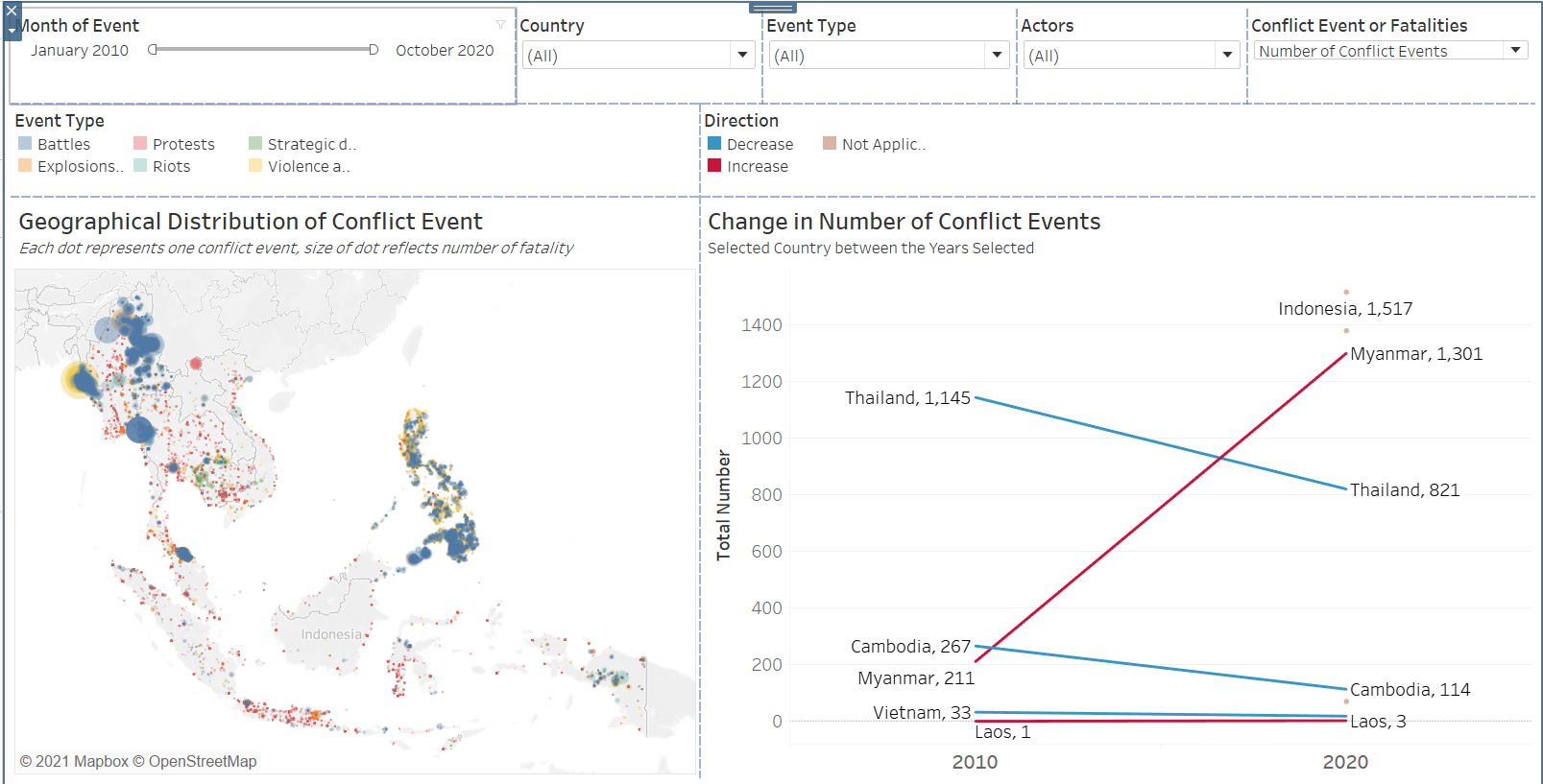

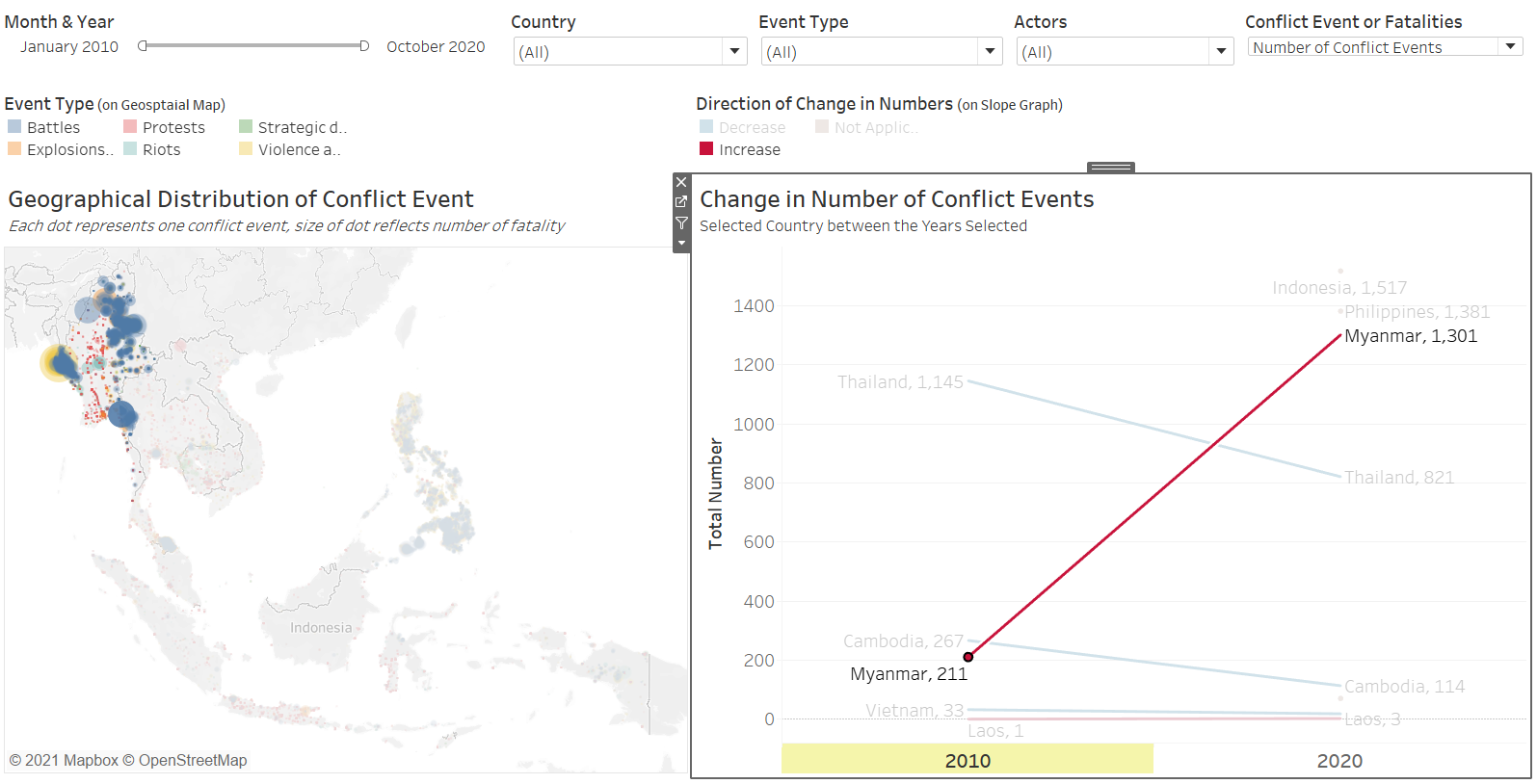

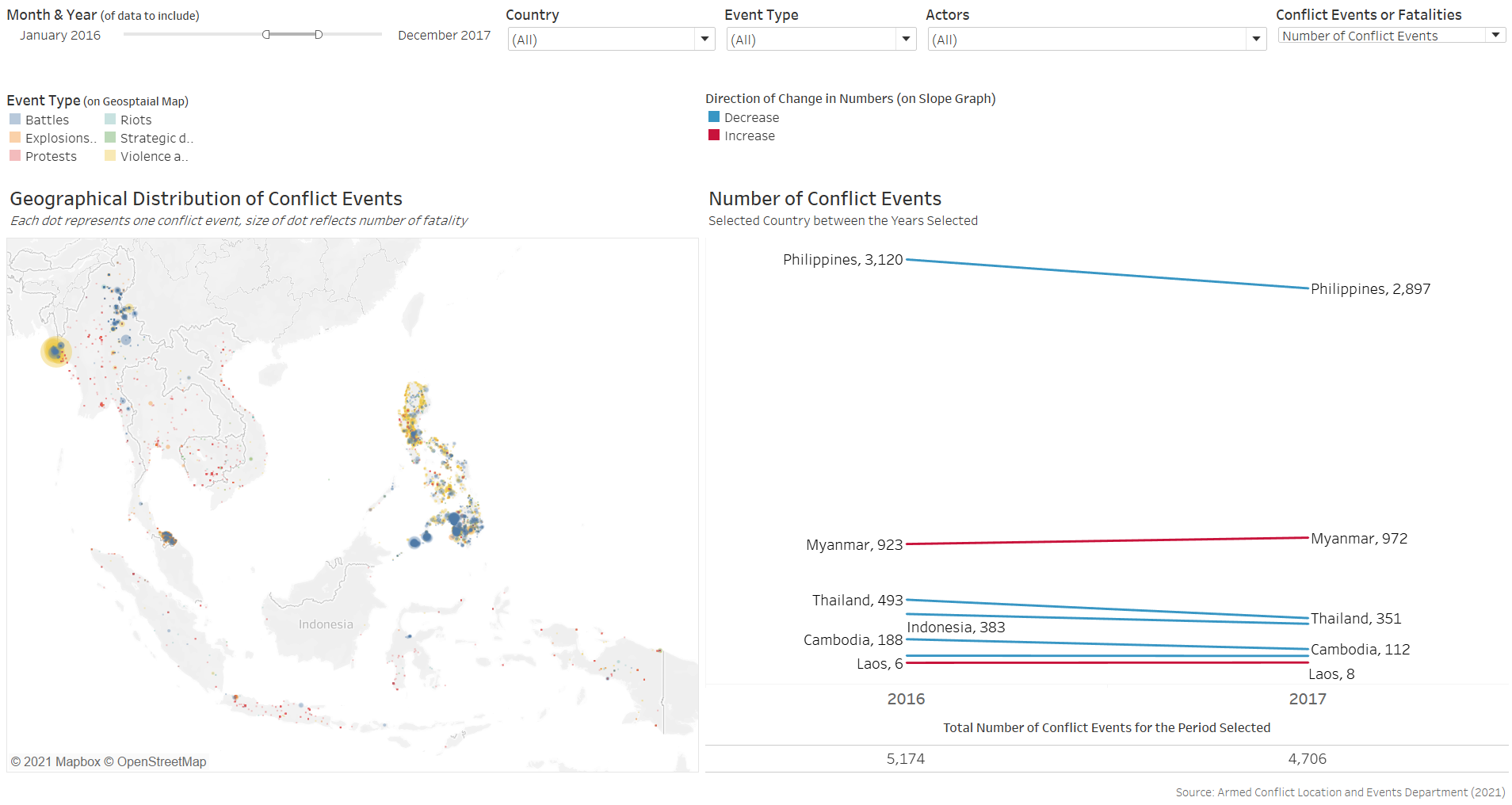

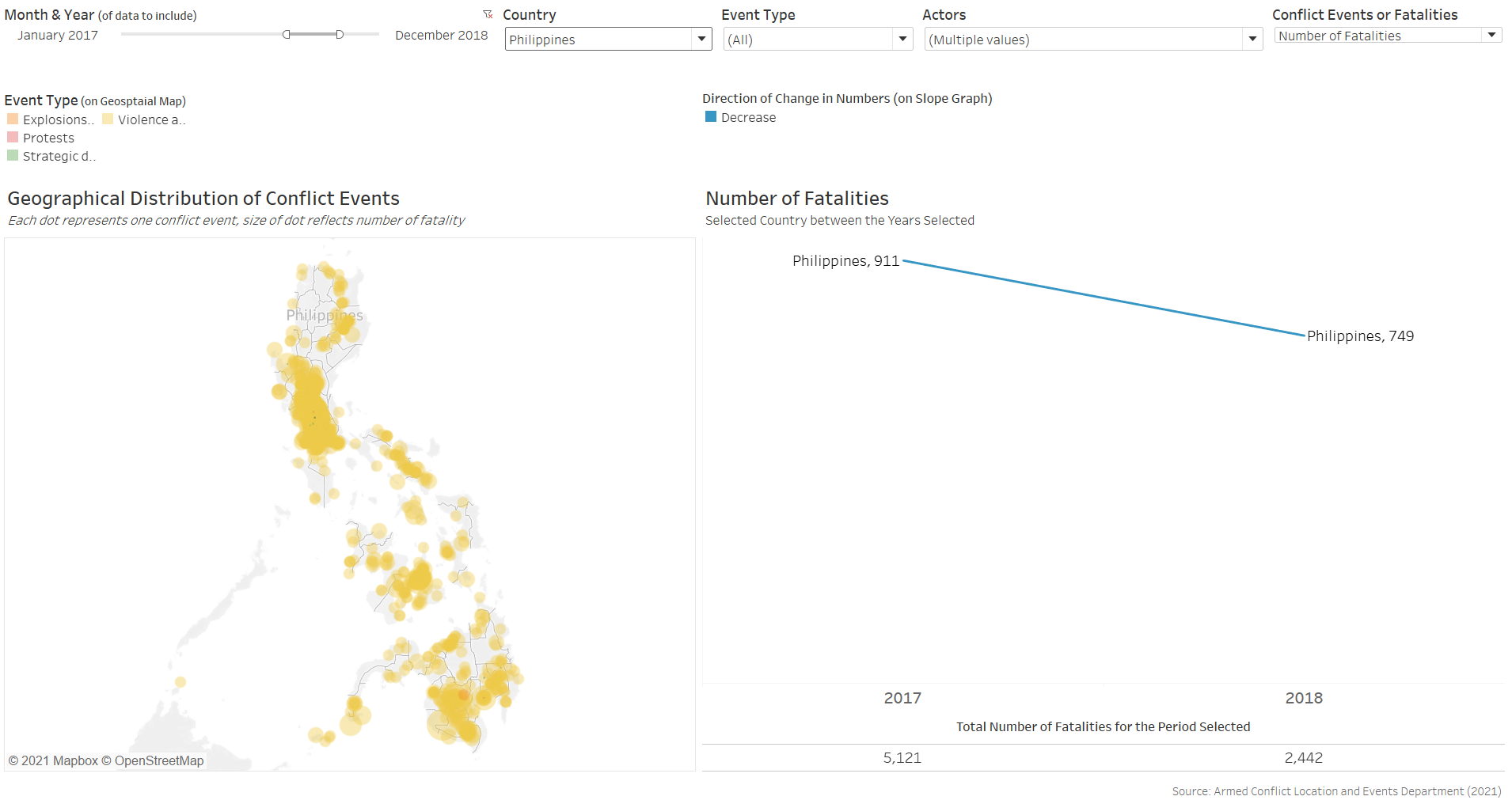

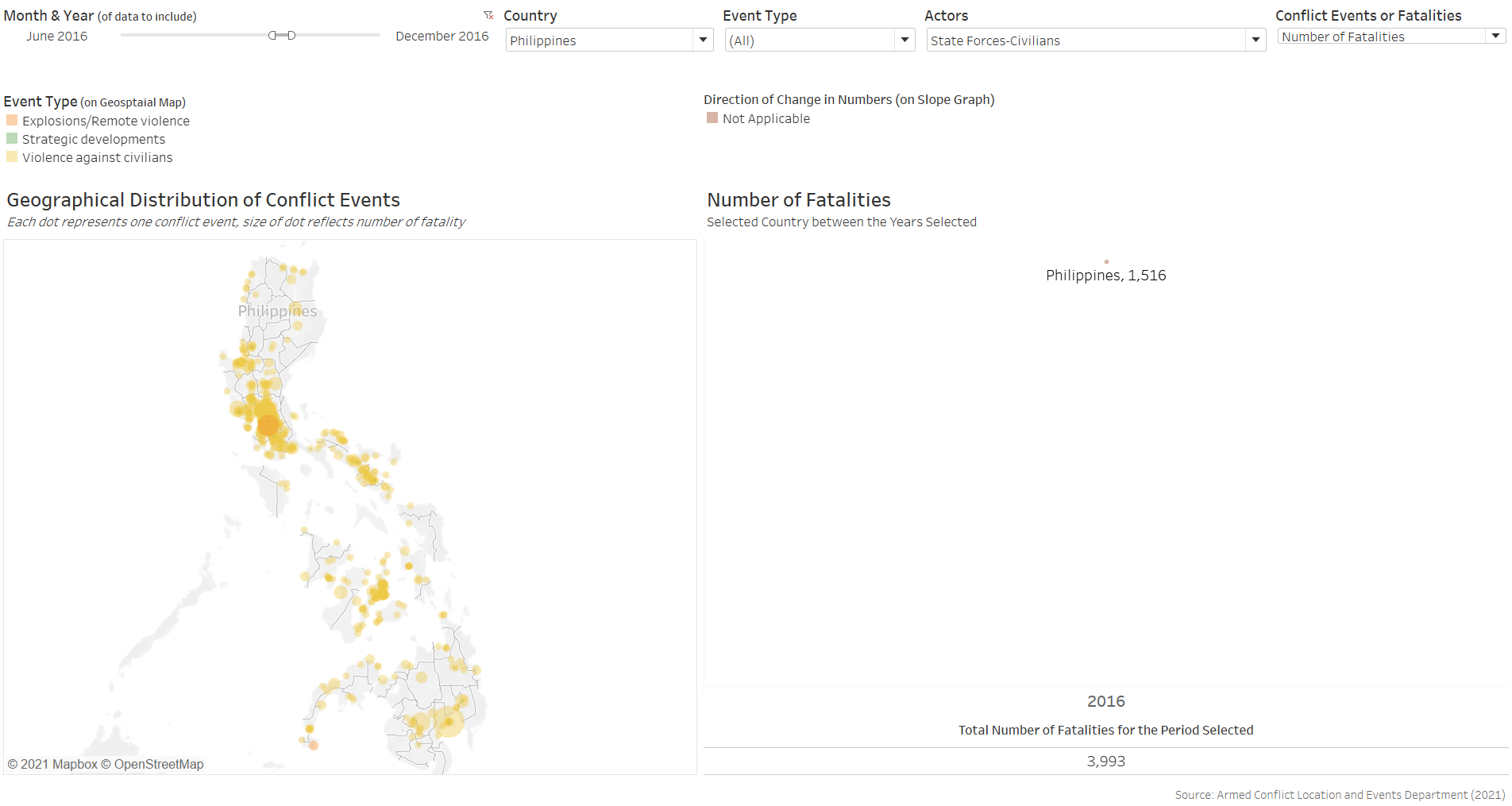

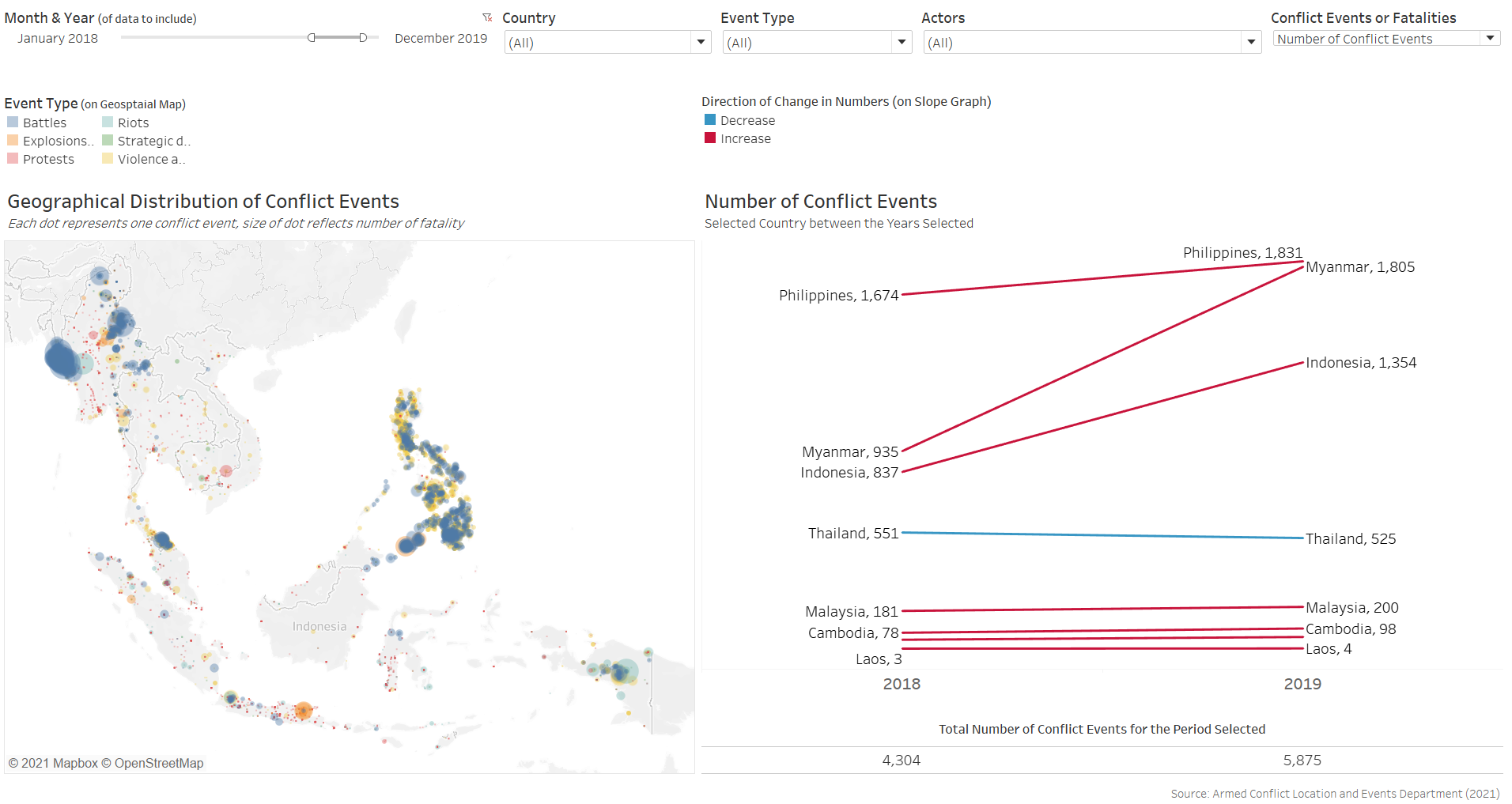

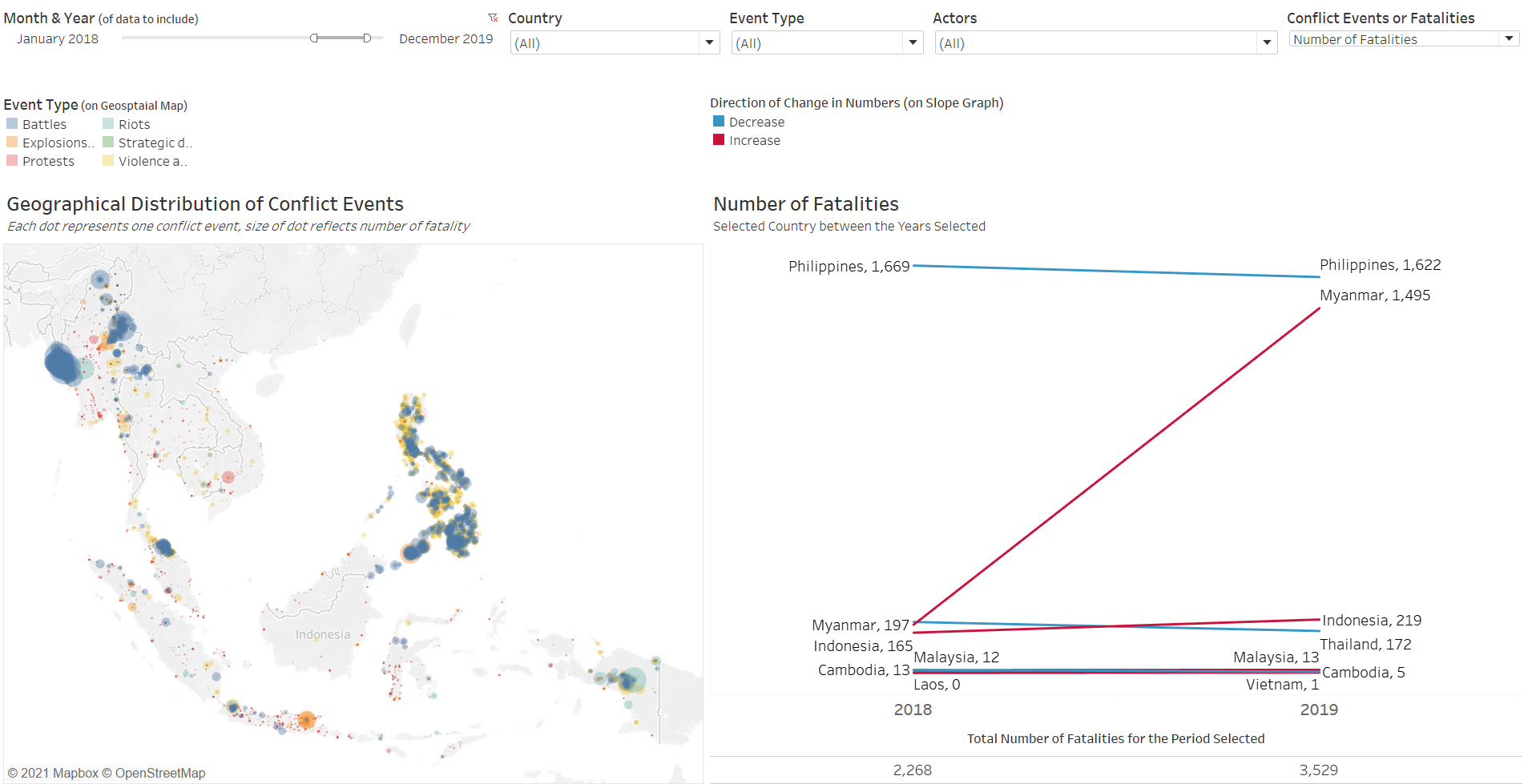

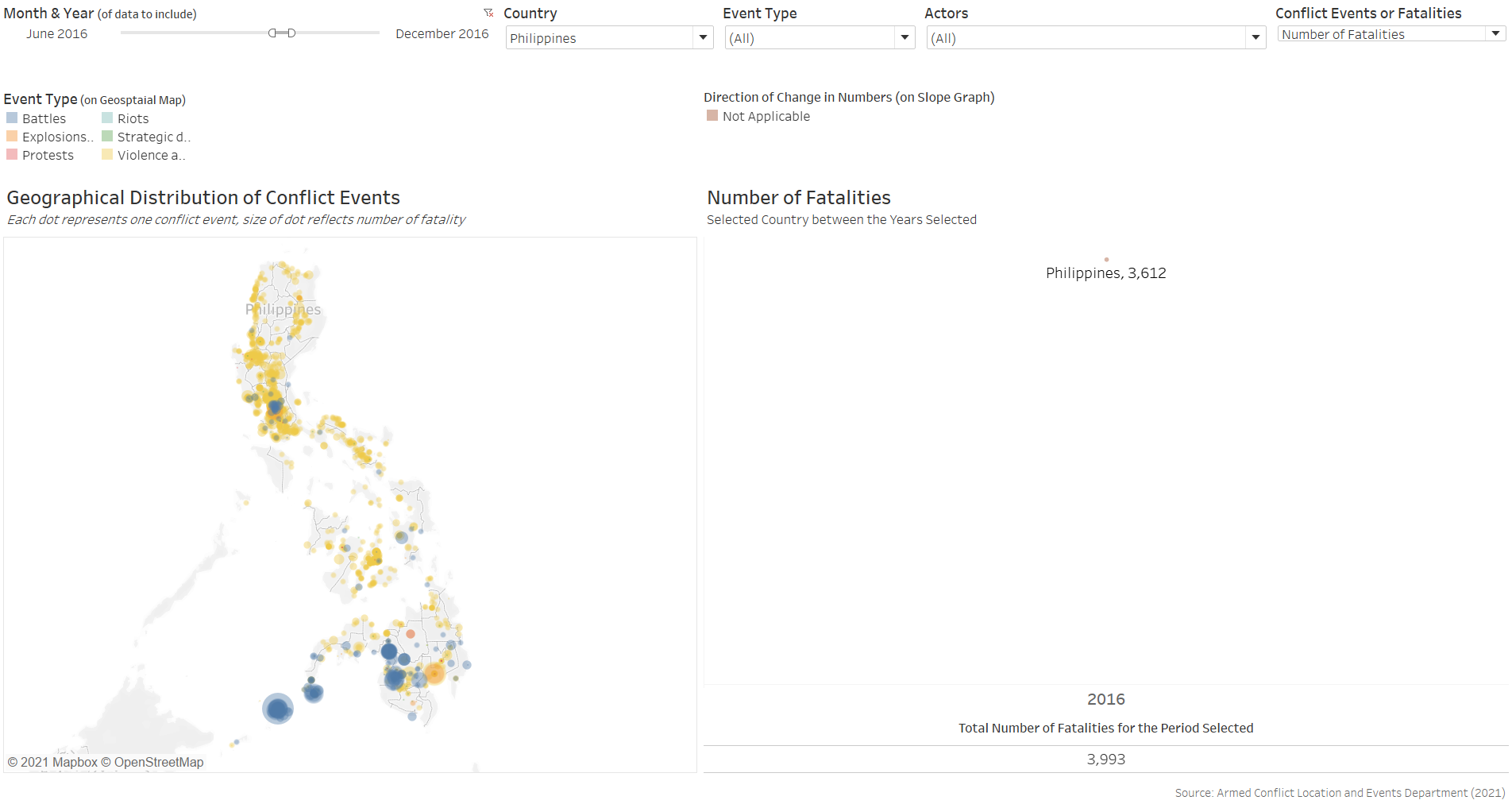

Using Tableau, the redesigned visualization based on the discussion points and concept presented in Section B above is created as follows:
The redesigned visualization can also be accessed via this link
Section D: Step-by-Step for Viz Makeover
This section provides a step-by-step guide to recreate the re-desgined visualization.
Part 1 - Data Preparation

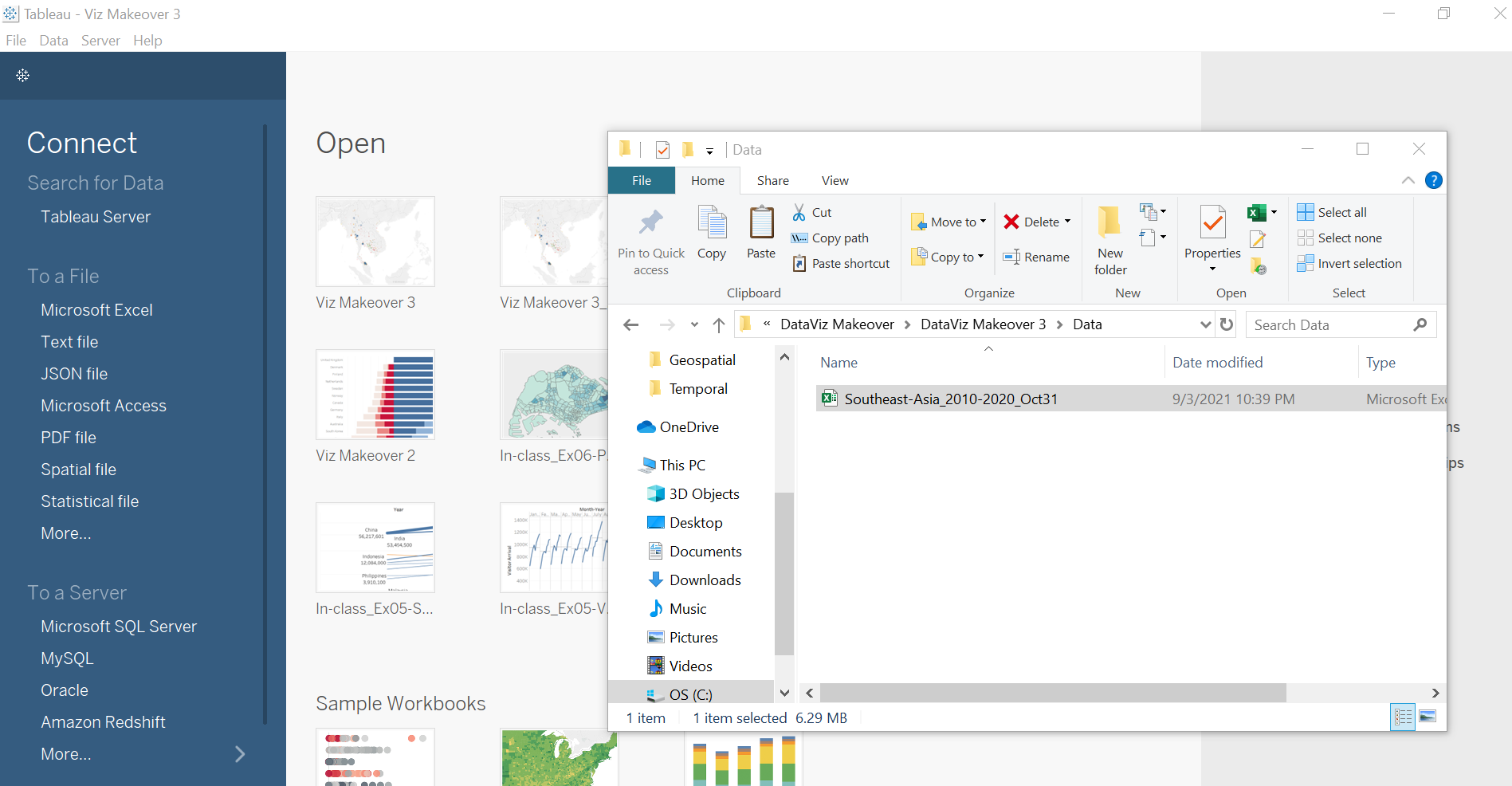

Step 1 - Importing Data
After downloading the Southeast Asian 2010-2020 dataset, open up Tableau Desktop then drag-and-drop the downloaded Excel file onto a new tableau main page.

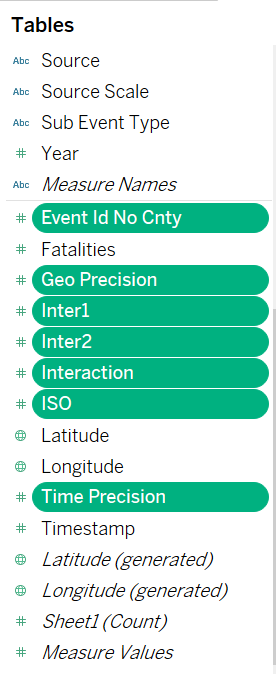

We can leave most of the data as-is, since they are relatively clean. We proceed to open up a new Worksheet in Tableau. Once that is done, we will quickly realize that Tableau automatically classified many of the numerical variables as Measures. We will need to shift these to become Dimensions. click on the following Measures while holding down the Ctrl key:-
- Event Id No Cnty
- Geo Precision
- Inter1
- Inter2
- Interaction
- ISO
- Time Precision
These variables are shifted to Dimension as their numerical values are codes representative of something and their numbers do not have any ordinal or nominal value.
Part 2 - Creating Interactive Geospatial Dot Density Plot with Proportional Symbols
Step 2.1 - Base Map

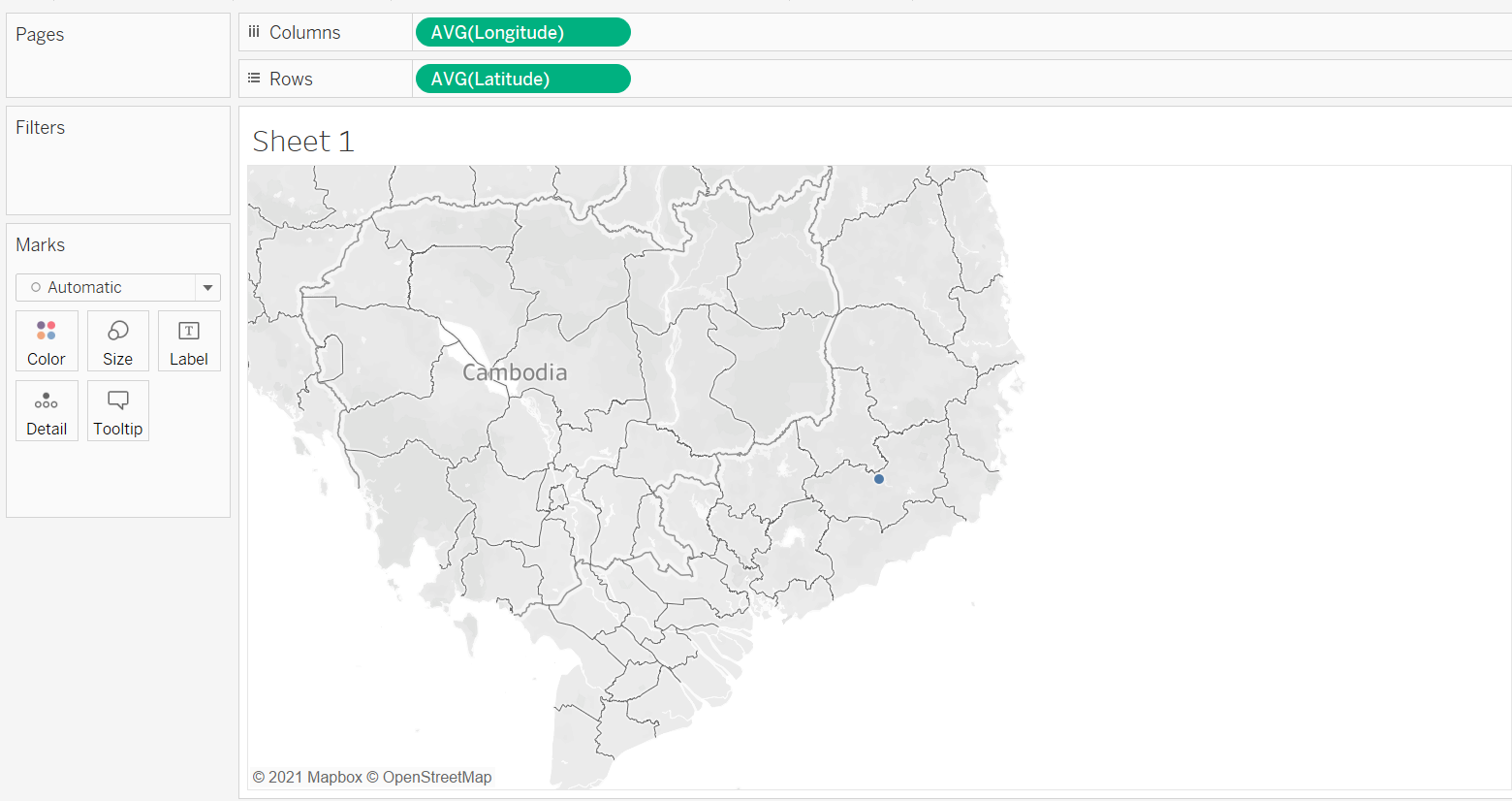

The very first step to creating a geospatial visualization is to create a base map. The dataset conveniently came along with Longitudinal and Latitudinal data to map out where each of the conflict event happened; Tableau on the other hand, made it even easier by automatically recognizing that these variables have geographical role and assigned them to their correct lat-long meaning based on their name. We now drag the Longitude to Columns, and Latitude to Rows.
Step 2.2 - Basic Dot Density Map

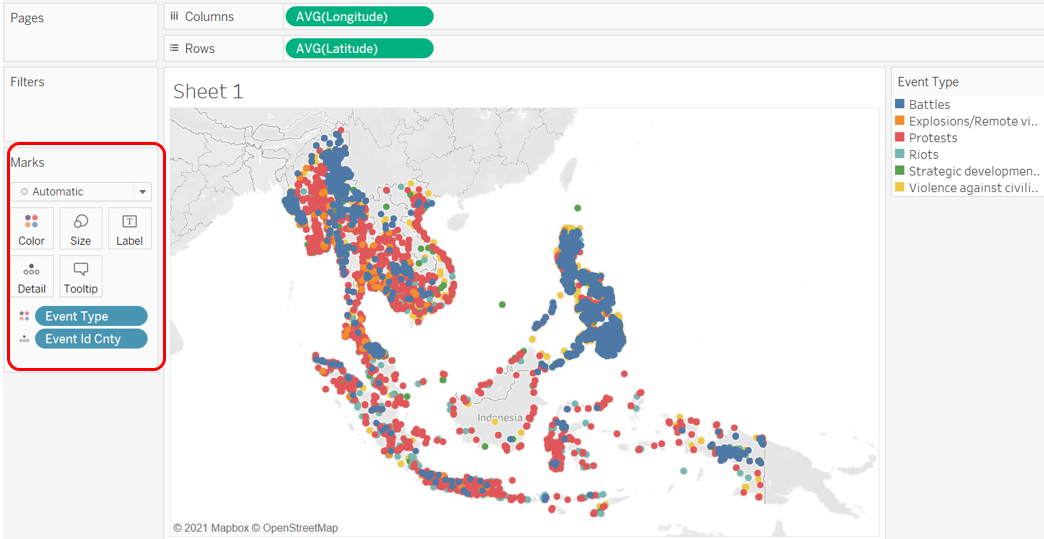

We create a basic dot density map by drag-and-dropping Event Id Cnty onto the Detail tab. As with any one-to-one dot density map, each of the resulting dot represents one count of the variable - in this case, a conflict event. We further enhance the map by introducing another variable - Event Type - onto the Color tab. This added dimension allows viewers to identify the type of event (e.g. Battle, Protest, Riot) associated with each event.

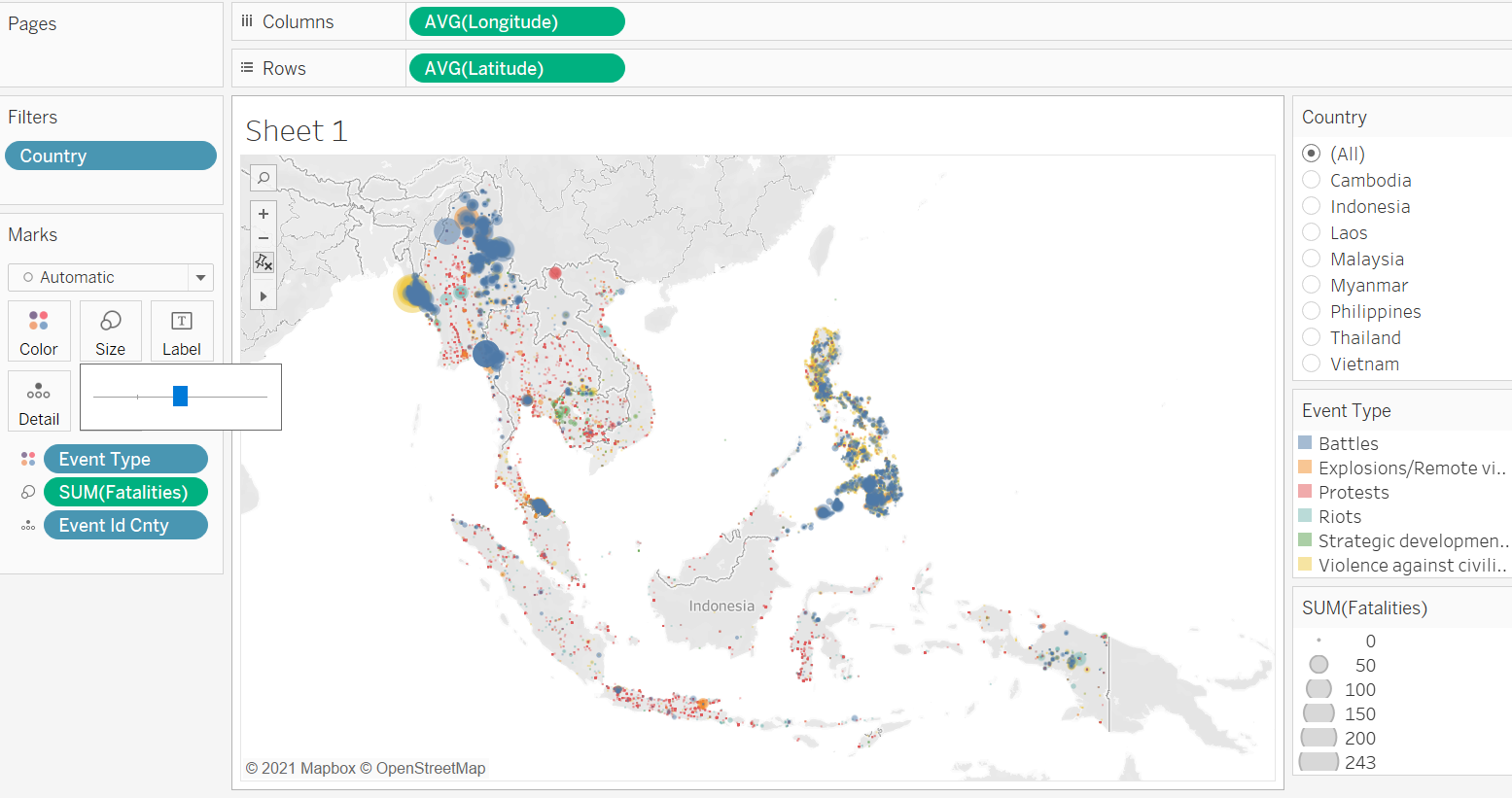

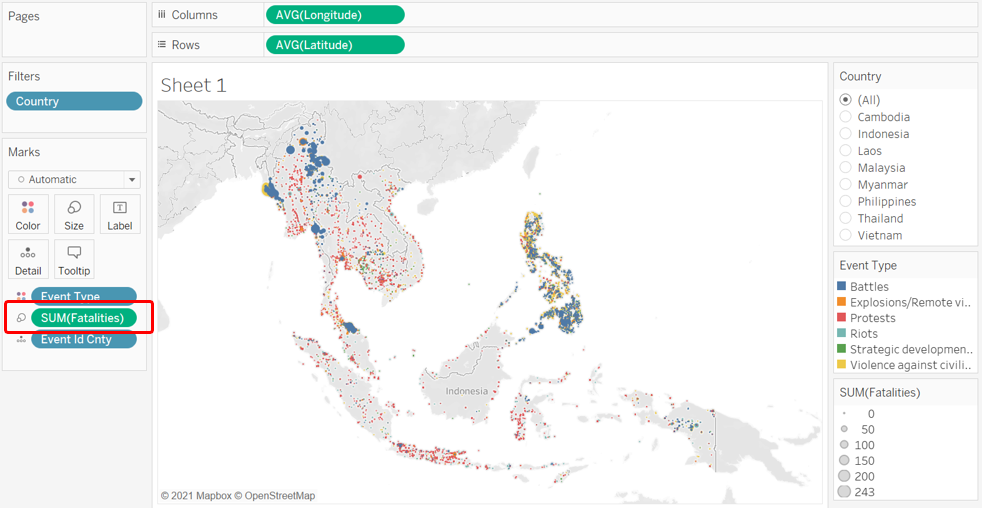

Step 2.3 - Proportional Symbols
Knowing the type of events and their concentration in a particular geo-spatial location is informative - however, not all events are of equal concerns: while some of the dots denotes relatively “civilized” encounters (e.g. peaceful protests, arrests of key politicians without any casualties involved), some are way more violent (e.g. battles, explosions). In this aspect, the dataset provides an appropriate variable - the number of Fatalities. To show the relative impact of each event proxied by the number of people killed during the event, we drag-and-drop the measure Fatalities onto the Size tab - the size of each dot would then provide the relative destruction (in human-life terms) of each event: the bigger the circle, the more lives the event claimed (and hence more impact), and the smaller the inverse, the lesser the impact.
We do note that the circles are still relatively similar in size, and they are all very close together such that we are unable to distinguish dots that are overlapping. We do two further changes to enhance the dots’ appearance:

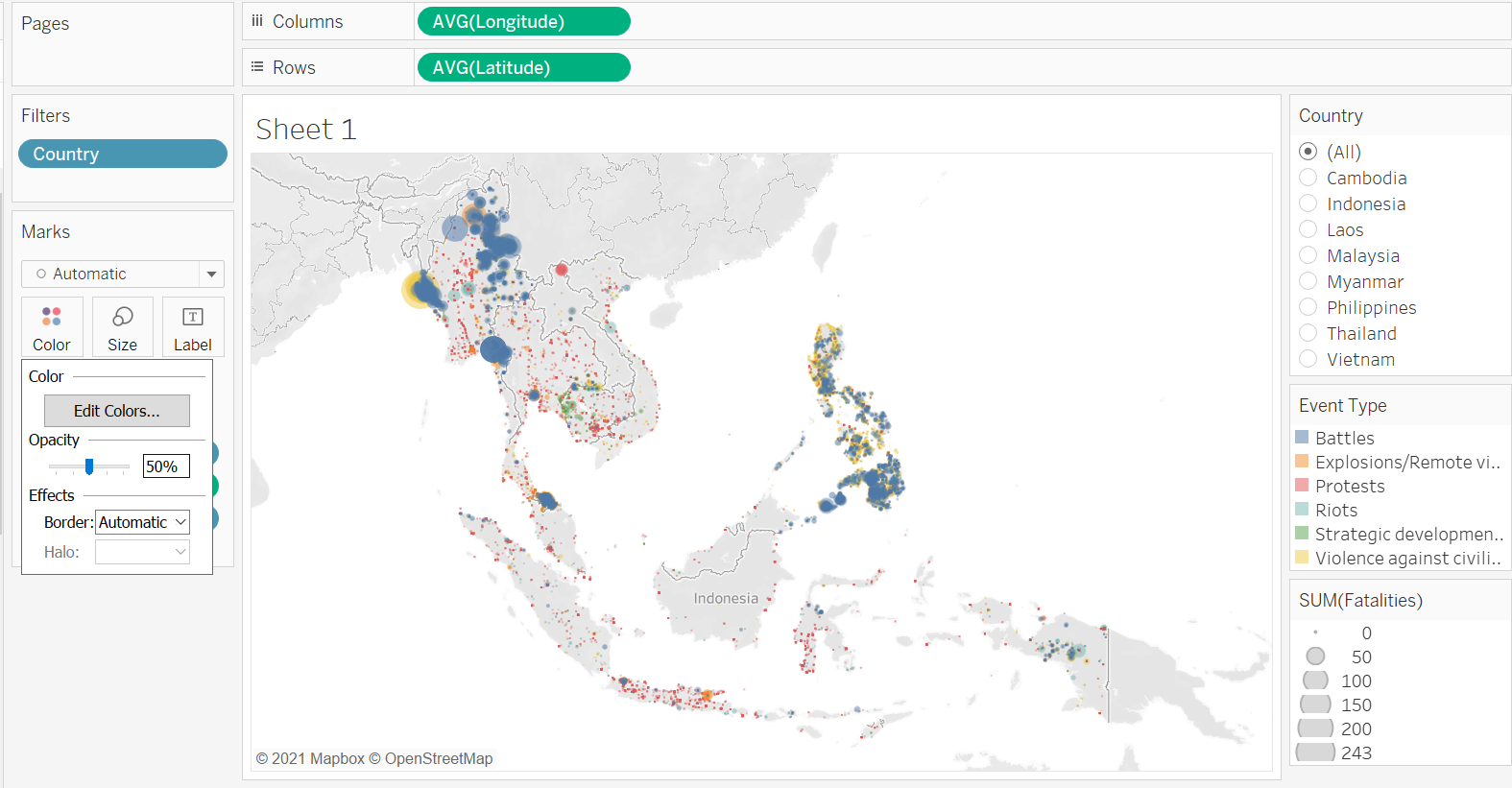

First we enlarge the circle by first clicking on the Size tab, then sliding the slider to the right.

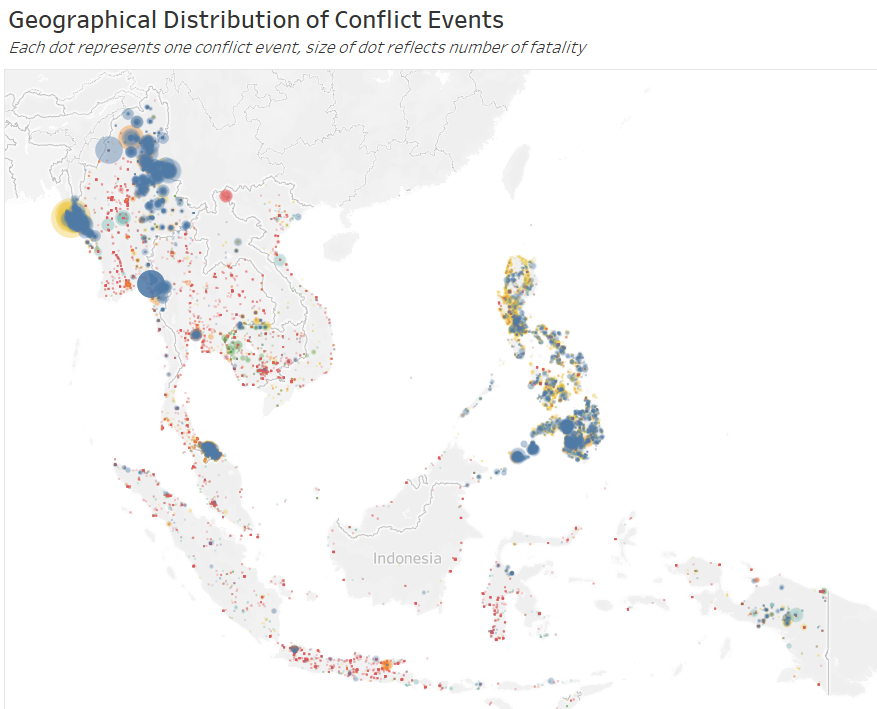

Next, we reduce the opacity by first clicking on the Color tab, then change the Opacity to 50%.
Step 2.4 - Interactivity - Filters
Country
Notice that we have also included Country as a Filter (by drag-and-dropping the Country pill into the Filters tab) at this point, which will be useful later on (remember to click on the small triangle beside the blue Country pill in the Filter tab, then check “Show Filter” for the filter to appear on the right-hand pane).
Event Type

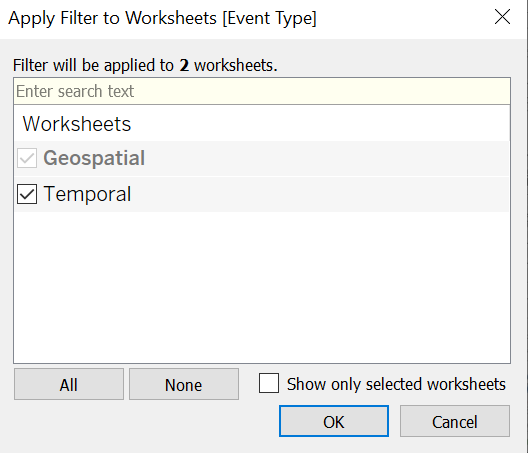

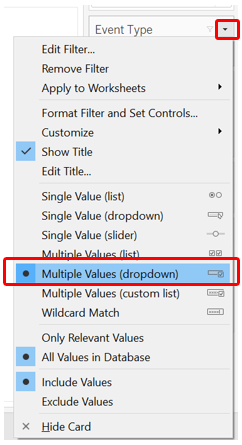

We do the same to Event Type. Then we change both of these filters into Multiple Values (Dropdown) list.
Actors

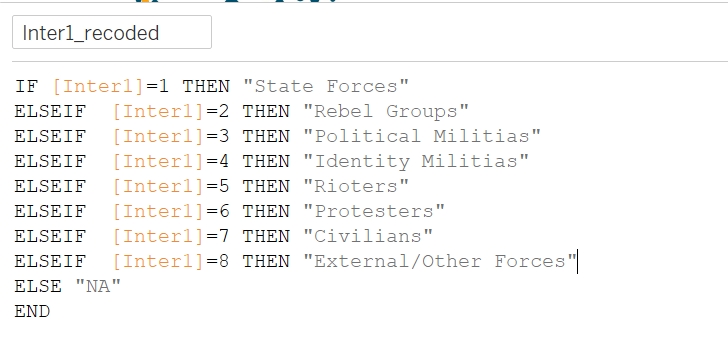

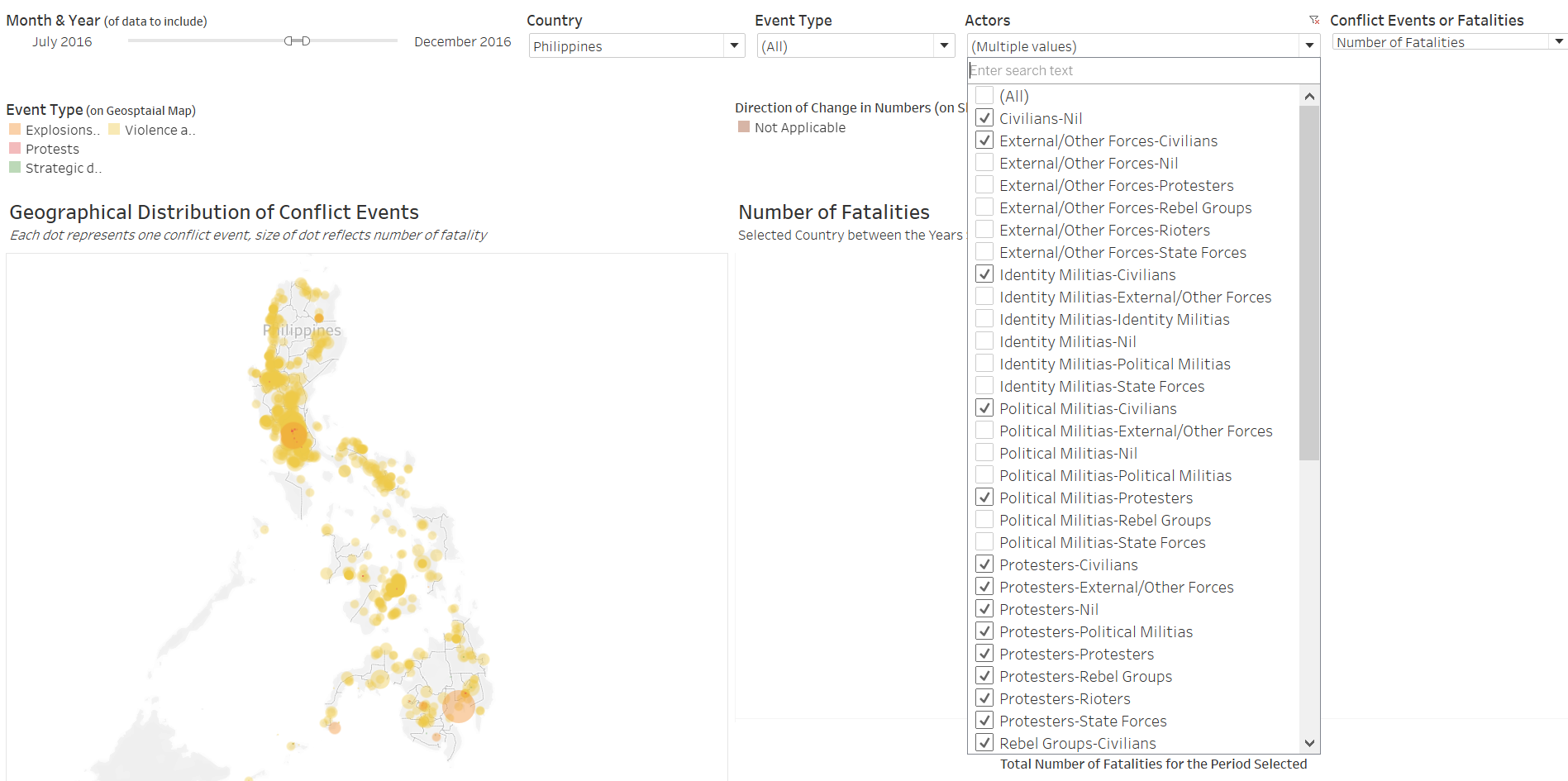

We also want to create a filter based on the interacting actors. To achieve this, we first have to create a few intermediate variables. First, we create a new string field called Inter1_recoded that spells out what each of the coded number in Inter1 means

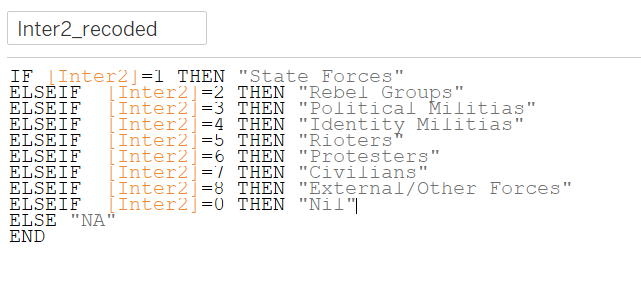

We do likewise for Inter2 to create Inter2_recoded.

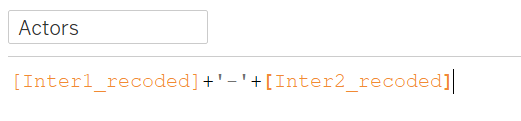

Lastly, we string these two variables together to create variable Actors that tells us the pair of actors in each conflict
Similarly. we then drag-and-drop the Actors variable onto the Filter pane and change the type to Multiple Values (Dropdown).
Step 2.5 - Aesthetics
Map Background

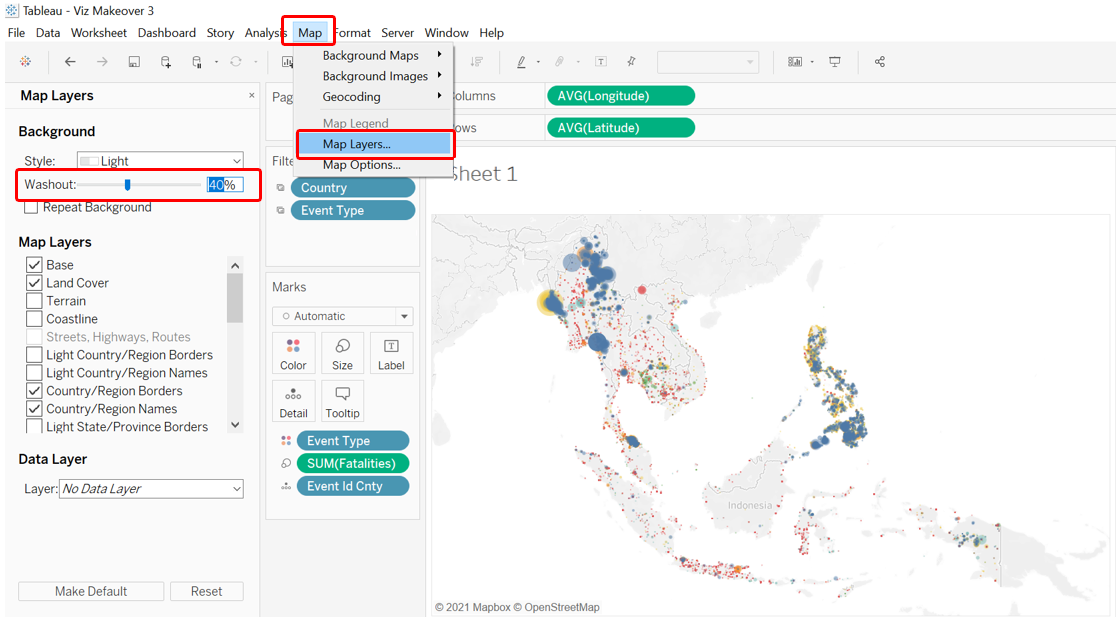

We next work on the aesthetics of the viz. First, the map background. While the default background is alreayd using the Light style, the background can be further faded to enhance the contrast between the various dots and the landmasses. This can be done by first clicking on the Map option on the options bar at the top, then selecting “Map Layers…” from the drop-down list. At the washout option, change the percentage to 40%.

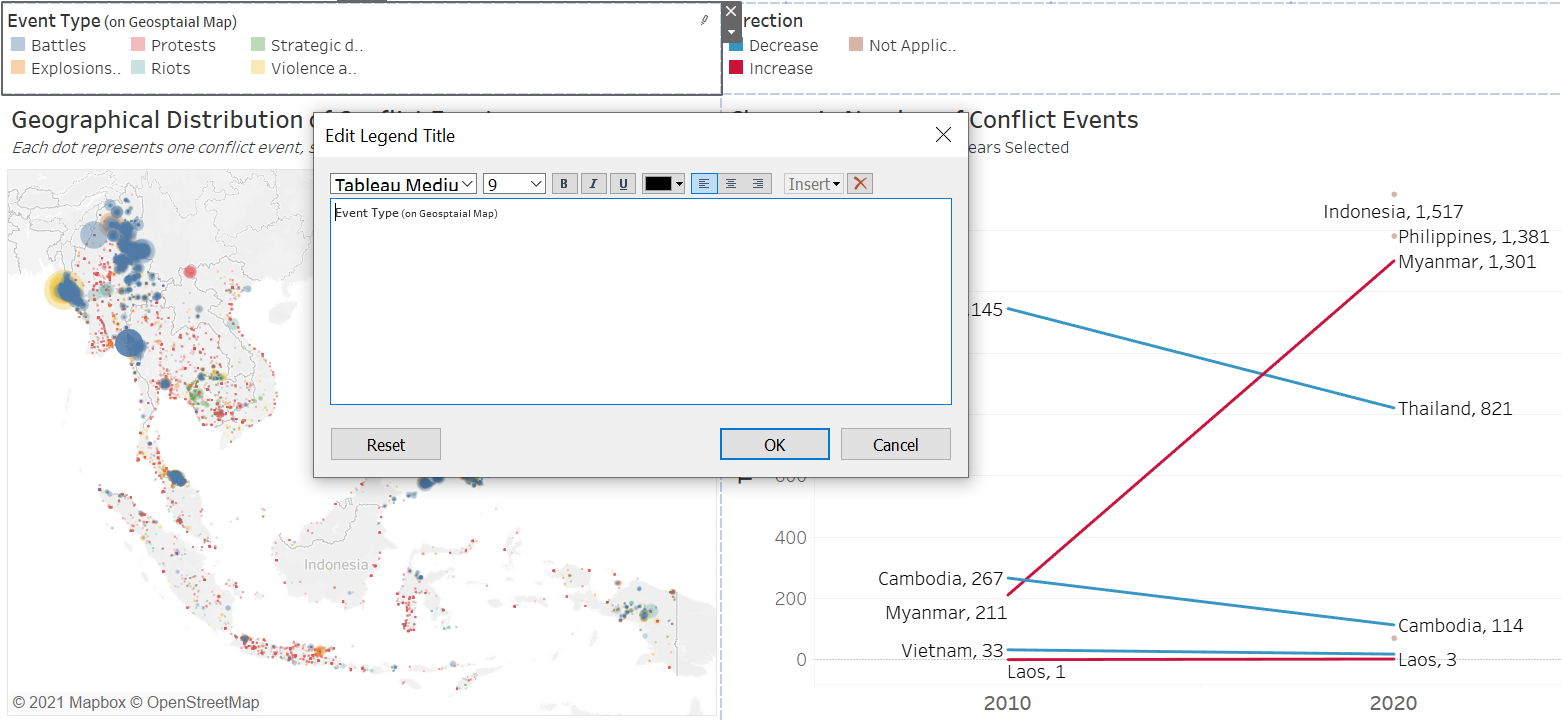

Title

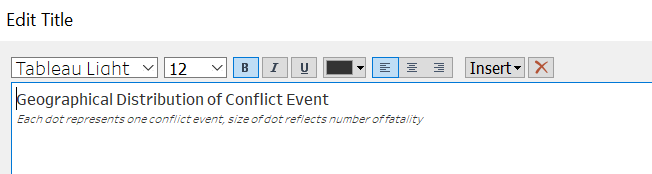

Next, we double click on the title to change it to the following.

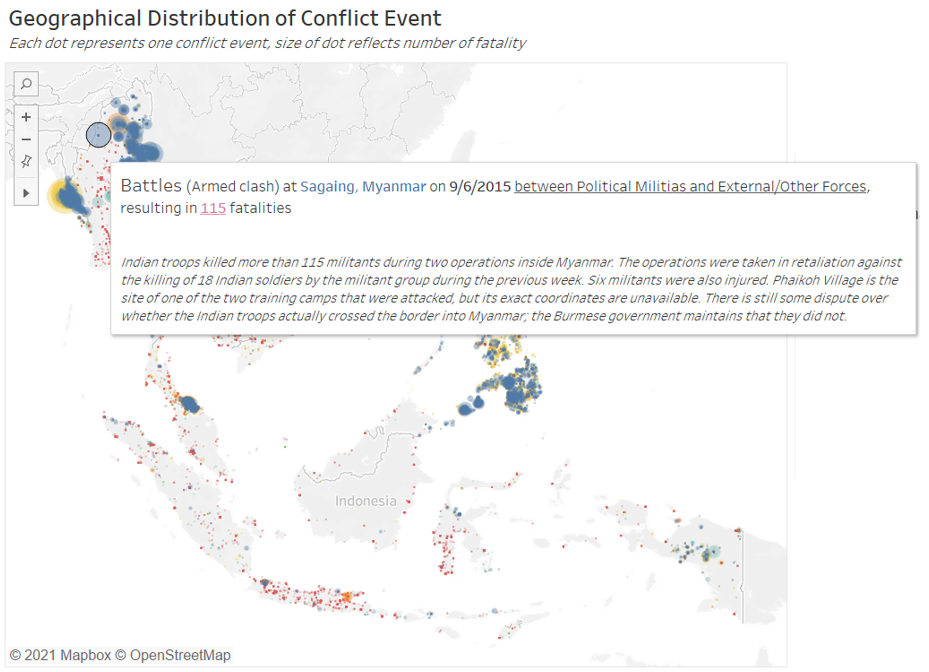

Step 2.6 - Tooltip

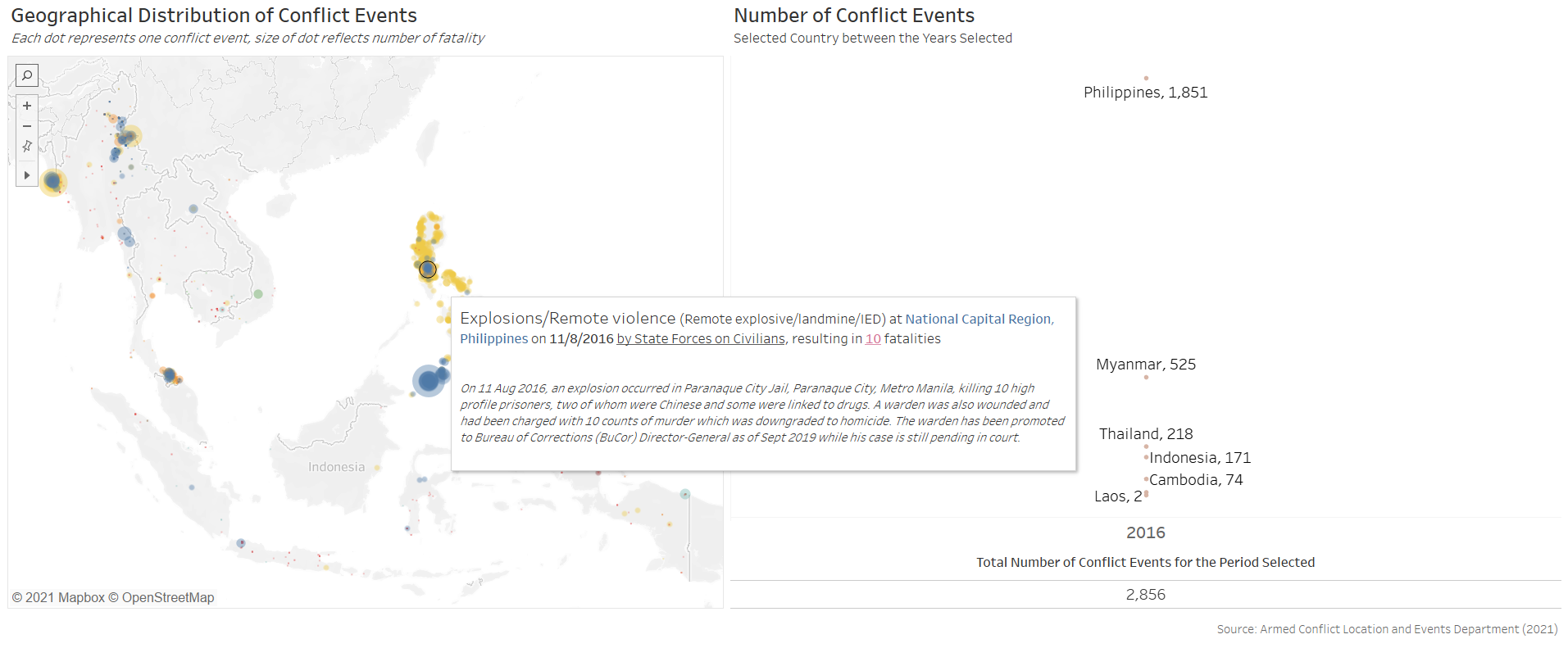

We want viewers to be able to extract more information when they hover their mouse over - so we add in a customized Tooltip that can provide them just that.

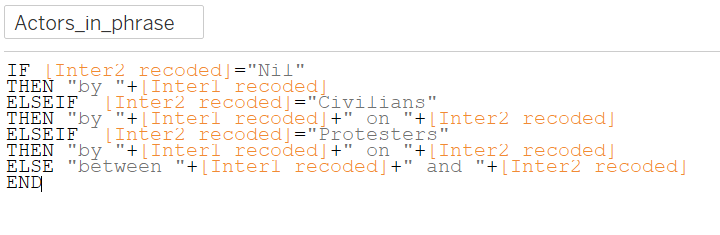

First, we create a new field that forms proper phrases with the parties involved - Actors_in_phrase.
When there are no second actor, the variable will just return that an event was conducted “by
When the second actor is either civilians or protesters, it means someone had done something to these people, and hence, “by
And finally, when there are two non-civilian non-protesters actors (e.g. State Forces and Rebel Groups), the events are conducted by these two actors jointly

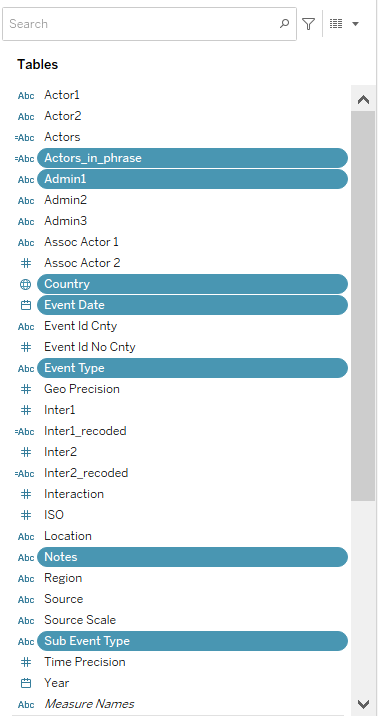

Once that is done, we drag-and-drop the relevant fields into the Tooltip tab - for this Tooltip, we will need the following variables:
- Actors_in_phrase
- Admin1
- Country
- Event Type
- Notes
- Sub Event Type

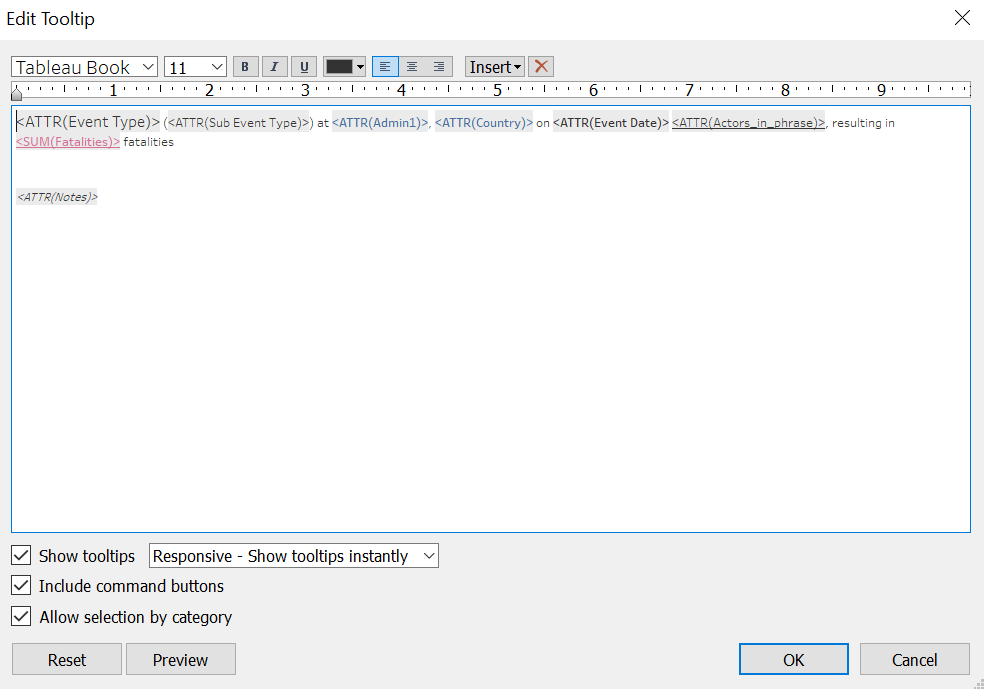

And lastly, we double click on the Tooltip tab, retain the relevant variables, and edit the Tooltip as follows:

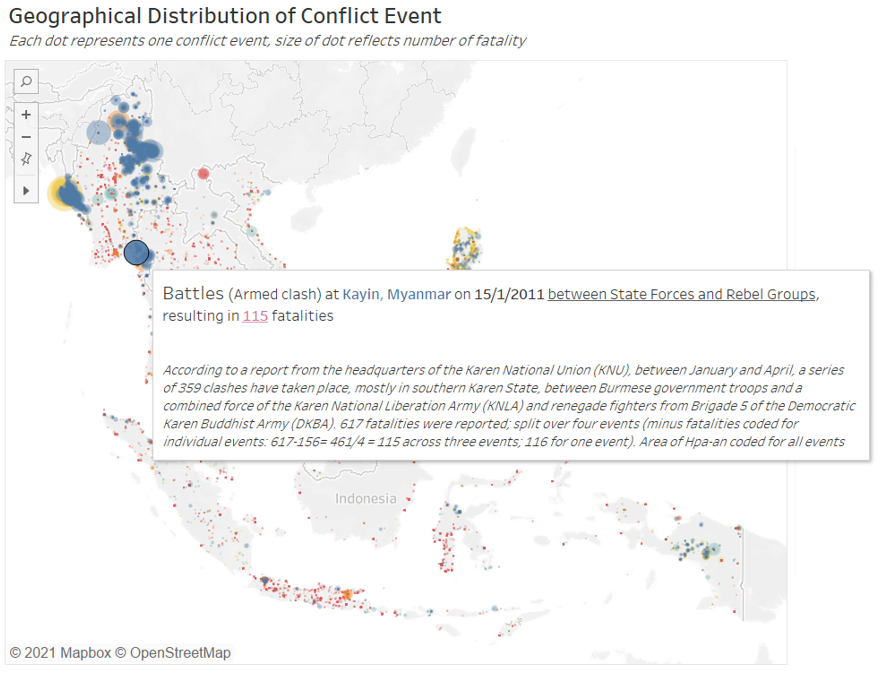

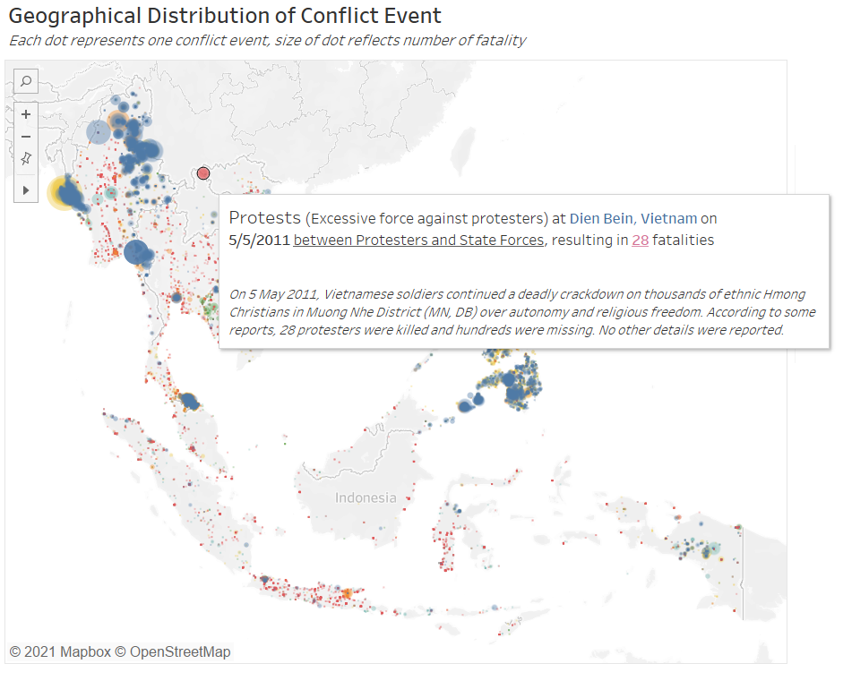

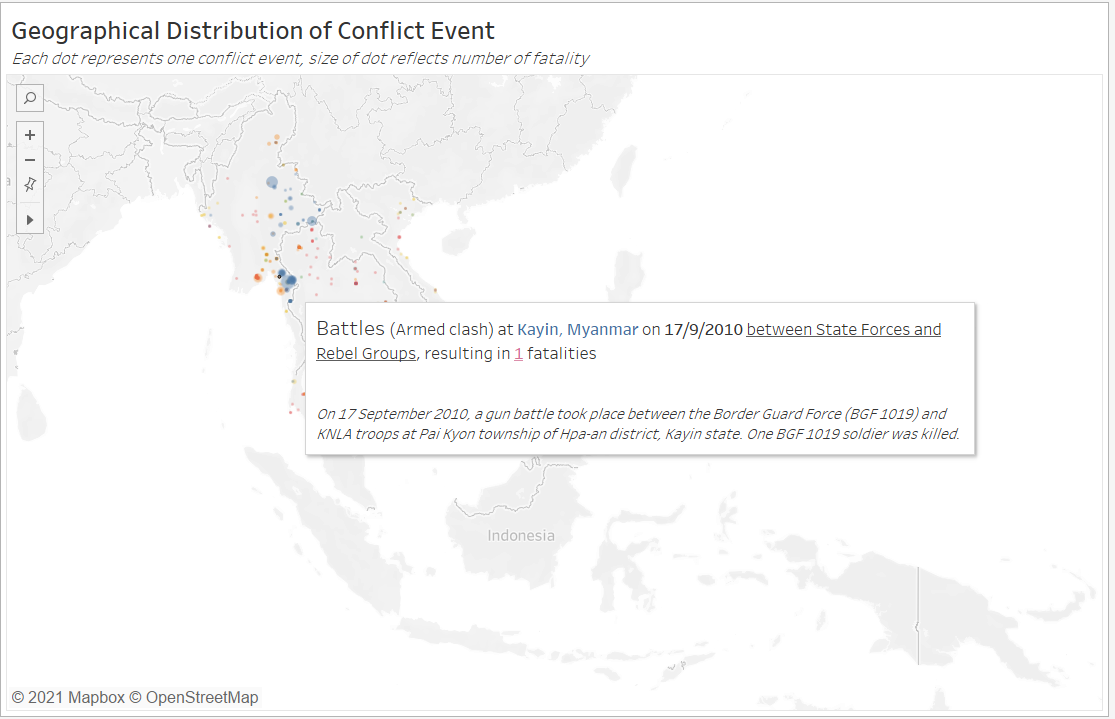

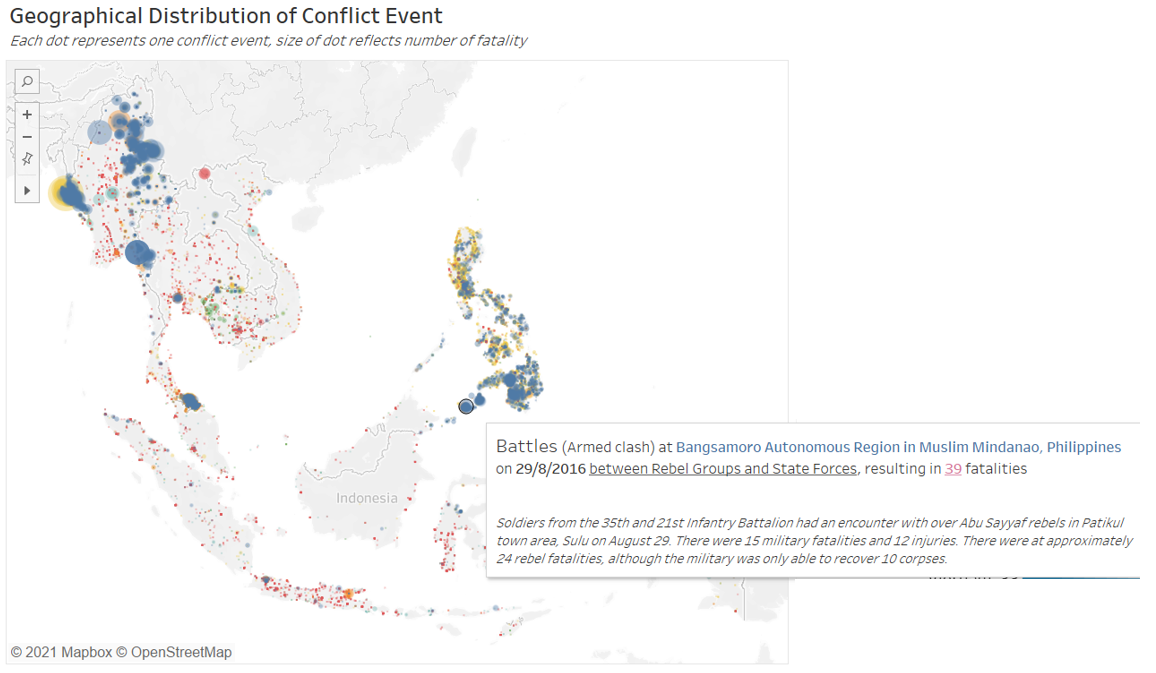

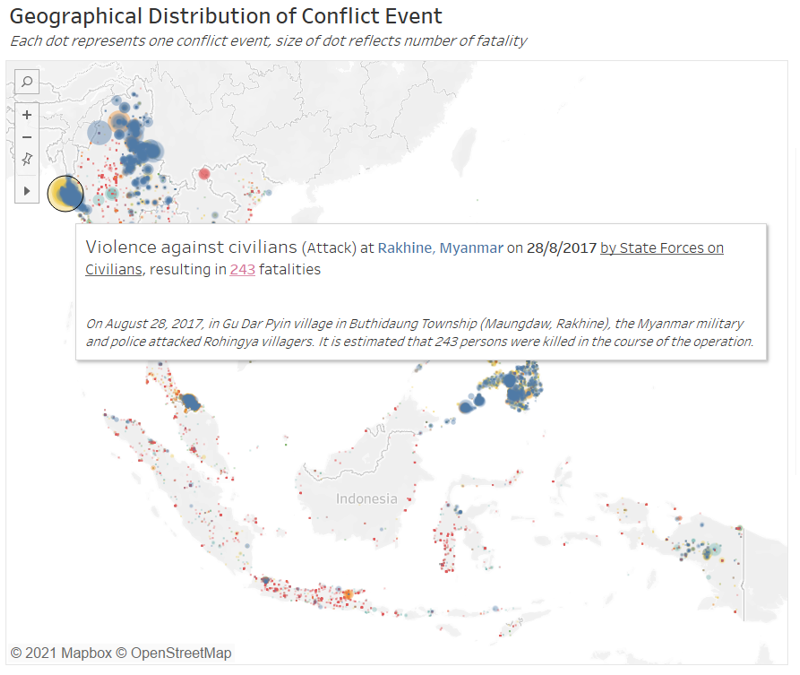

We now have an informative geospatial dot density map of conflict events with proportional representation of the fatalities.

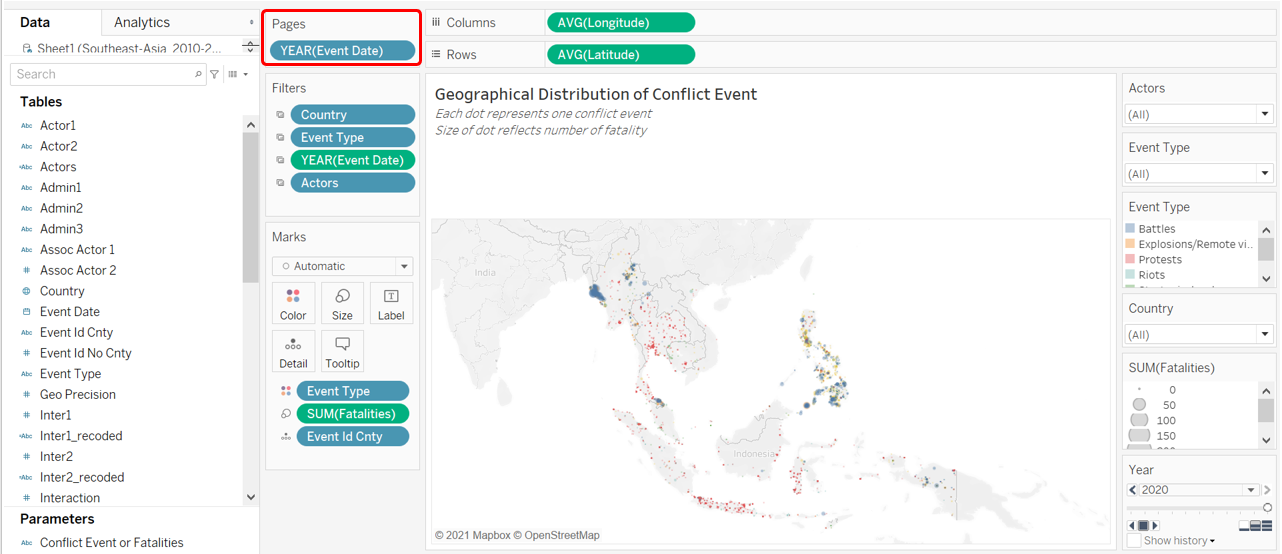

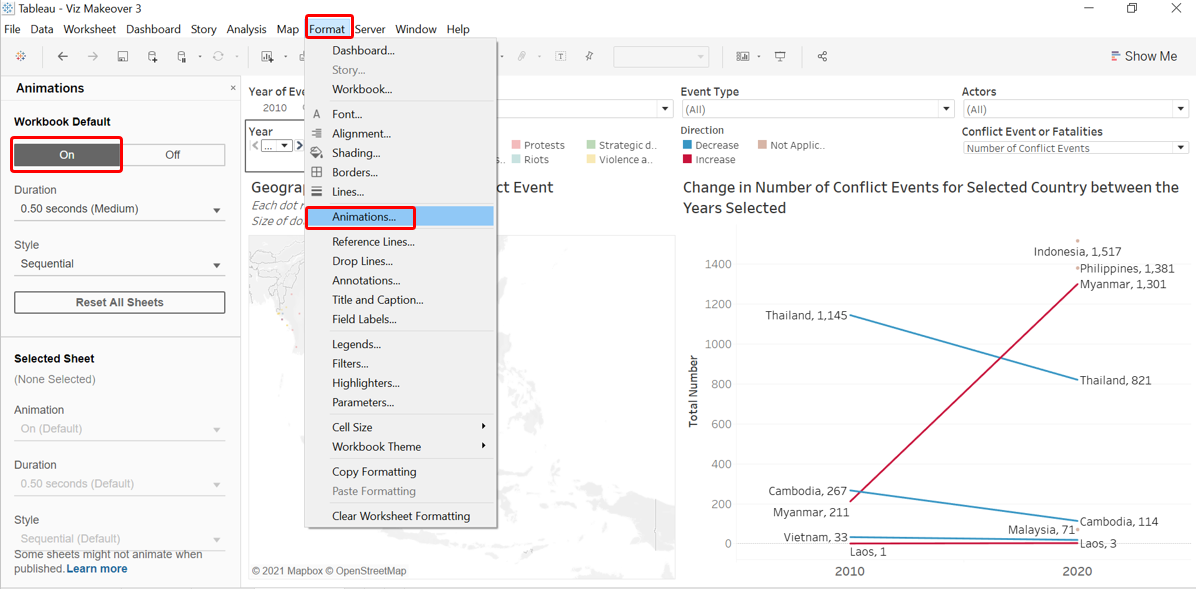

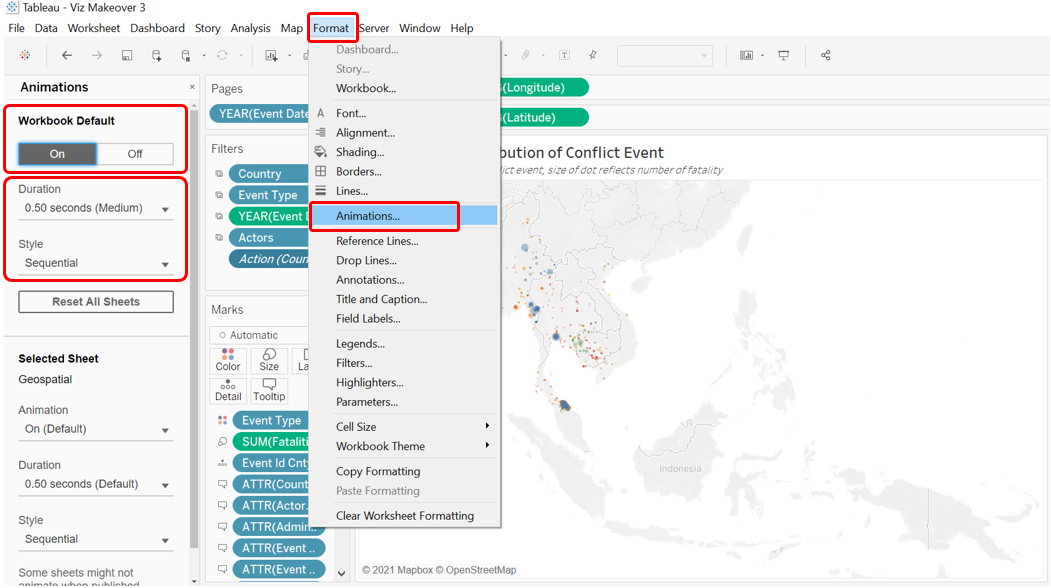

If reader is interested, steps to include Animation on the map for dynamic visualization - which is not recommended for the purpose of this data viz - is documented in the Annex
Part 3 - Visualizing Change using Slopegraph
We next open up a new Worksheet to create the second portion of the overall viz visualizing change using the Slopegraph.
Step 3.1 - Data Preparation & Variable Creation
As usual, before we dive straight into creating the viz, we will do some data wrangling and create some useful variables first.
Year

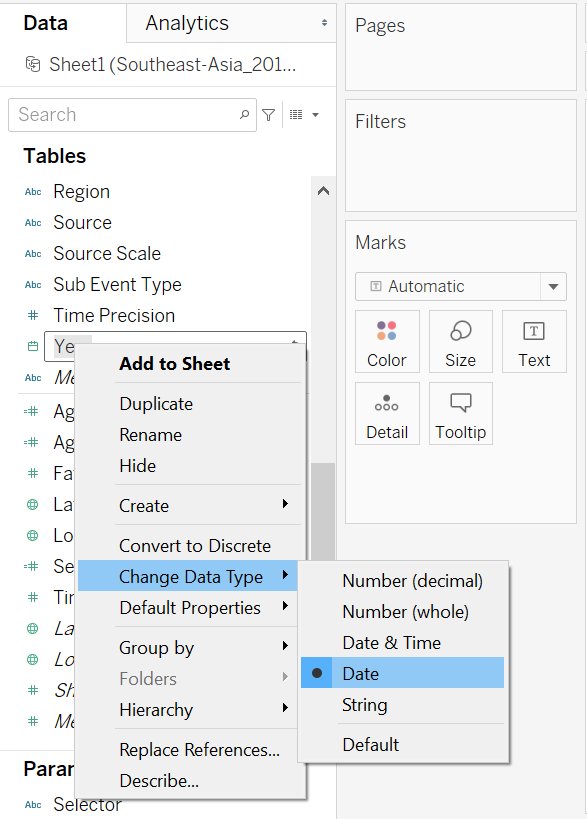

By default, the Year variable is of numeric dimension type, we will first need to change it to the proper Date type.
Aggregating Events

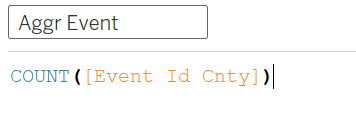

Next, we create a variable that counts the number of events. Without any further specification to the formula, Tableau will include data entry for the count according to the filters applied.
Aggregating Fatalities
We also create another similar variable, this time round to sum up the fatalities
Selector

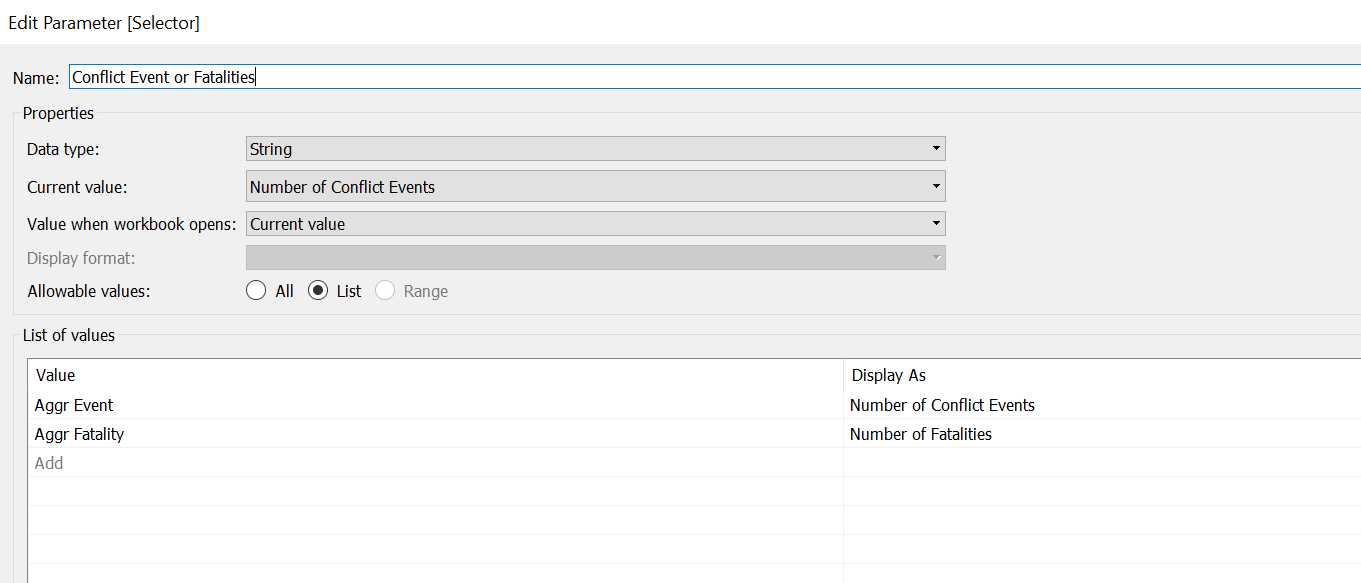

We have two types of change that we can visualize - number of events and number of fatalities. We want to allow viewers to be able to toggle between these two variables to distill relevant insights. We do that by creating a Parameter. Parameters can be created by right-clicking the blank space under the Data tab on the left-most panel and selecting the “Create Parameters…” option. We call this Parameter Conflict Event or Fatalities, taking in String data type with the following list of values:

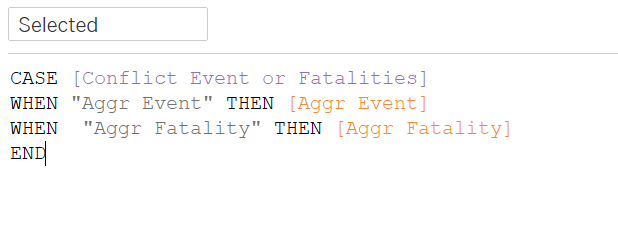

After that, we create a variable called Selected that takes in the option selected by the viewers via the parameter:
Delta & Direction

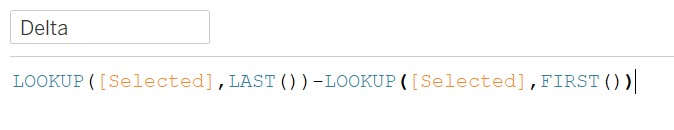

We create a variable Delta that informs us on the change in the numbers (positive if increase, negative if decreased).

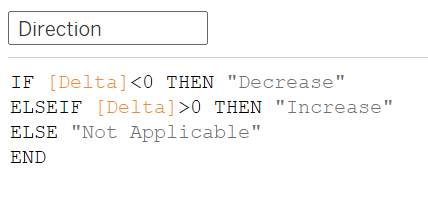

We then use Delta to find out the direction of movement of the numbers of conflict event/fatalities between any two years by creating the following Direction variable
First or Last

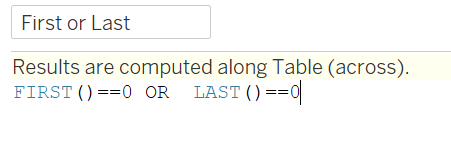

Finally, we create a variable called First or Last - this variable will be useful in allow us to show a line on the Slopegraph for only the starting and ending year; where either one is missing, the data point will only appear as a dot.

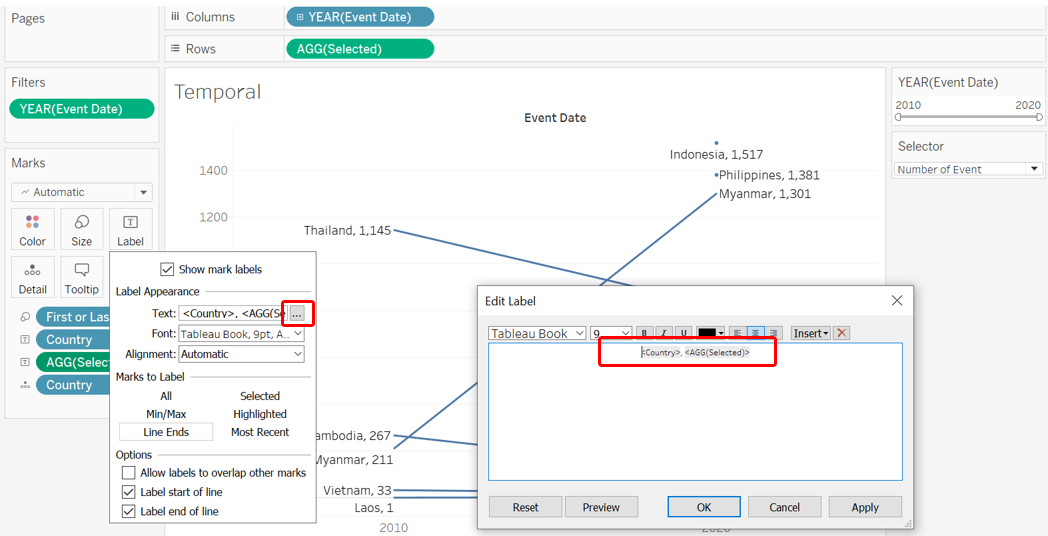

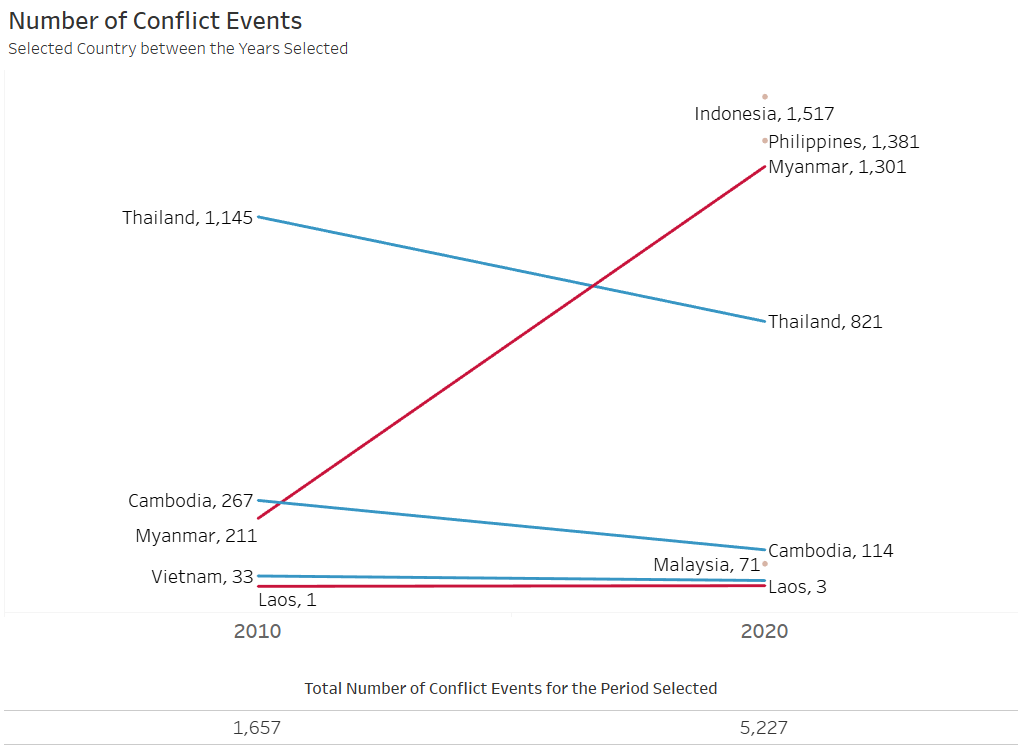

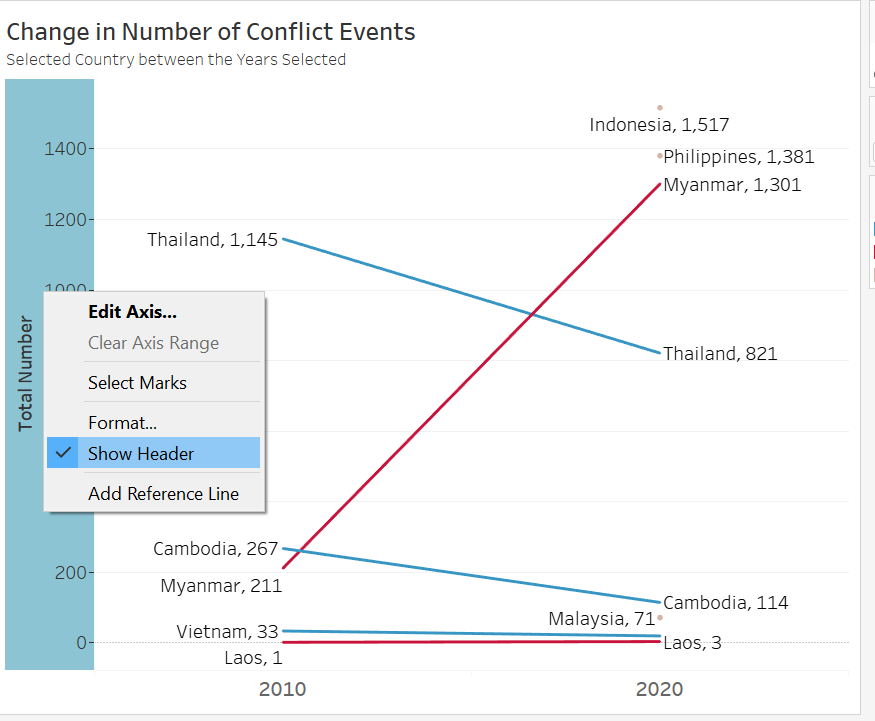

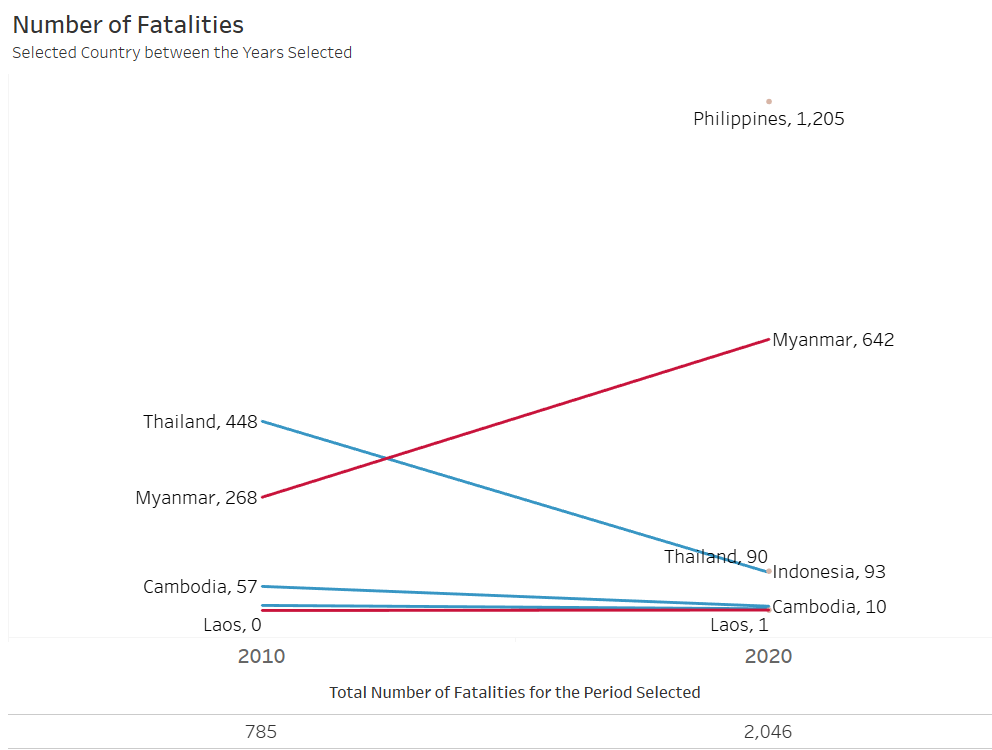

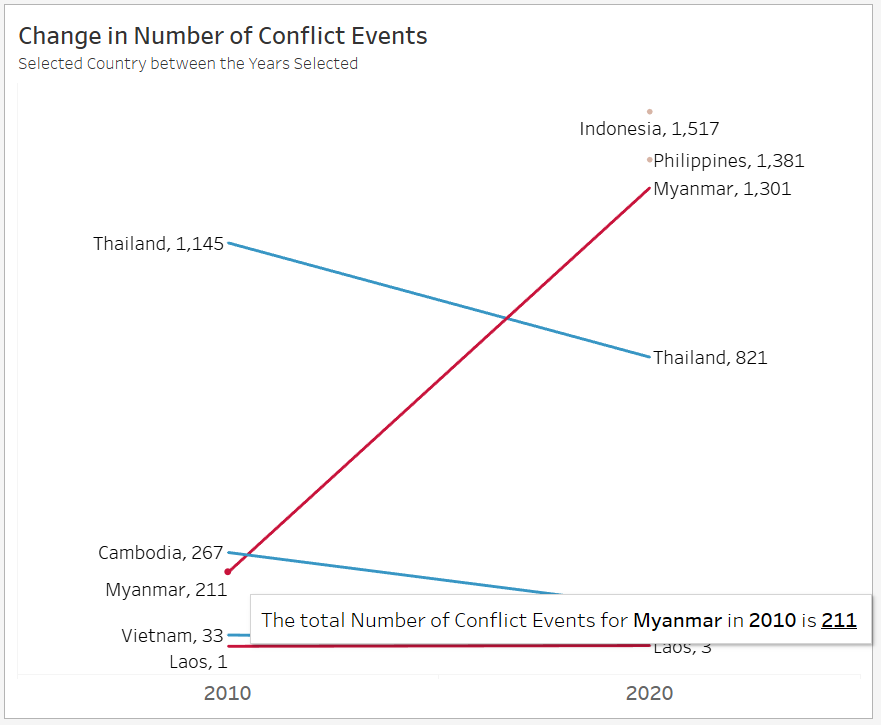

Step 3.2 - Creating Basic Slopegraph

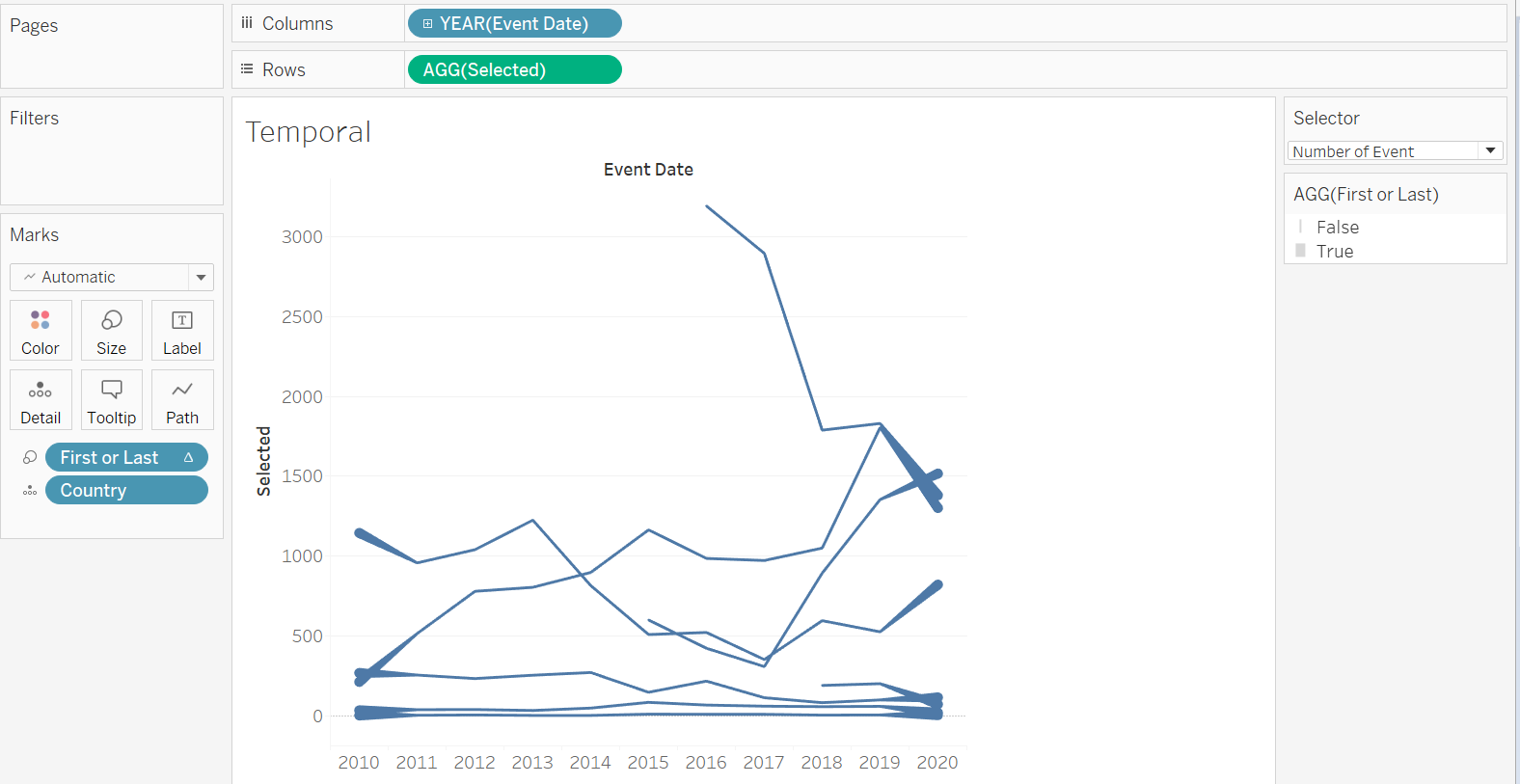

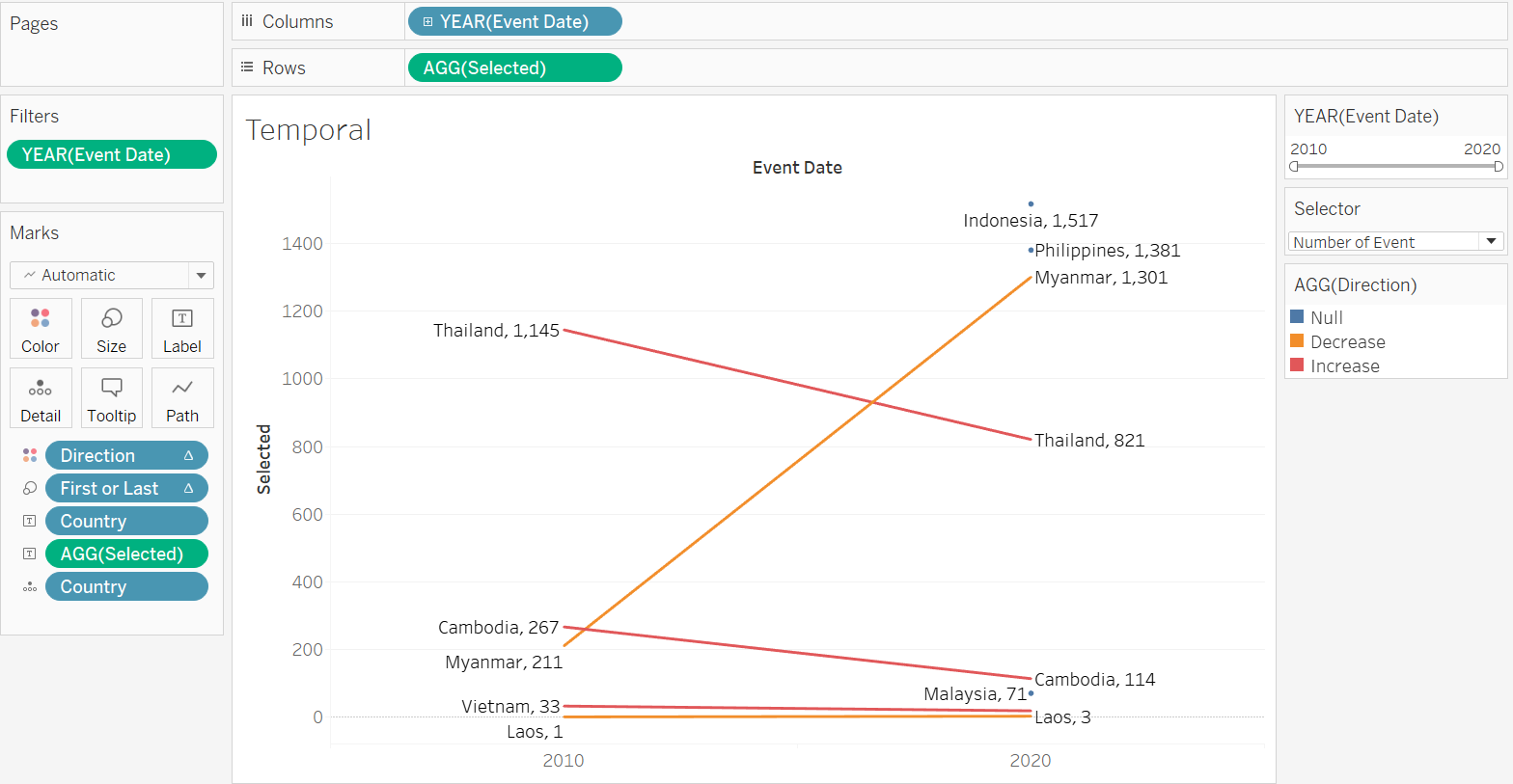

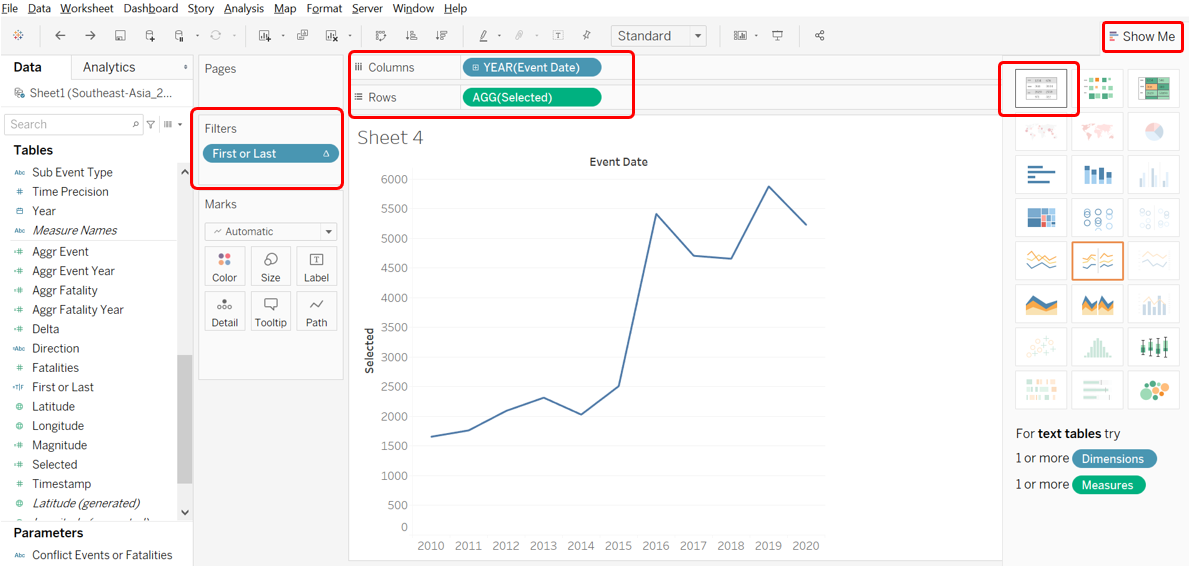

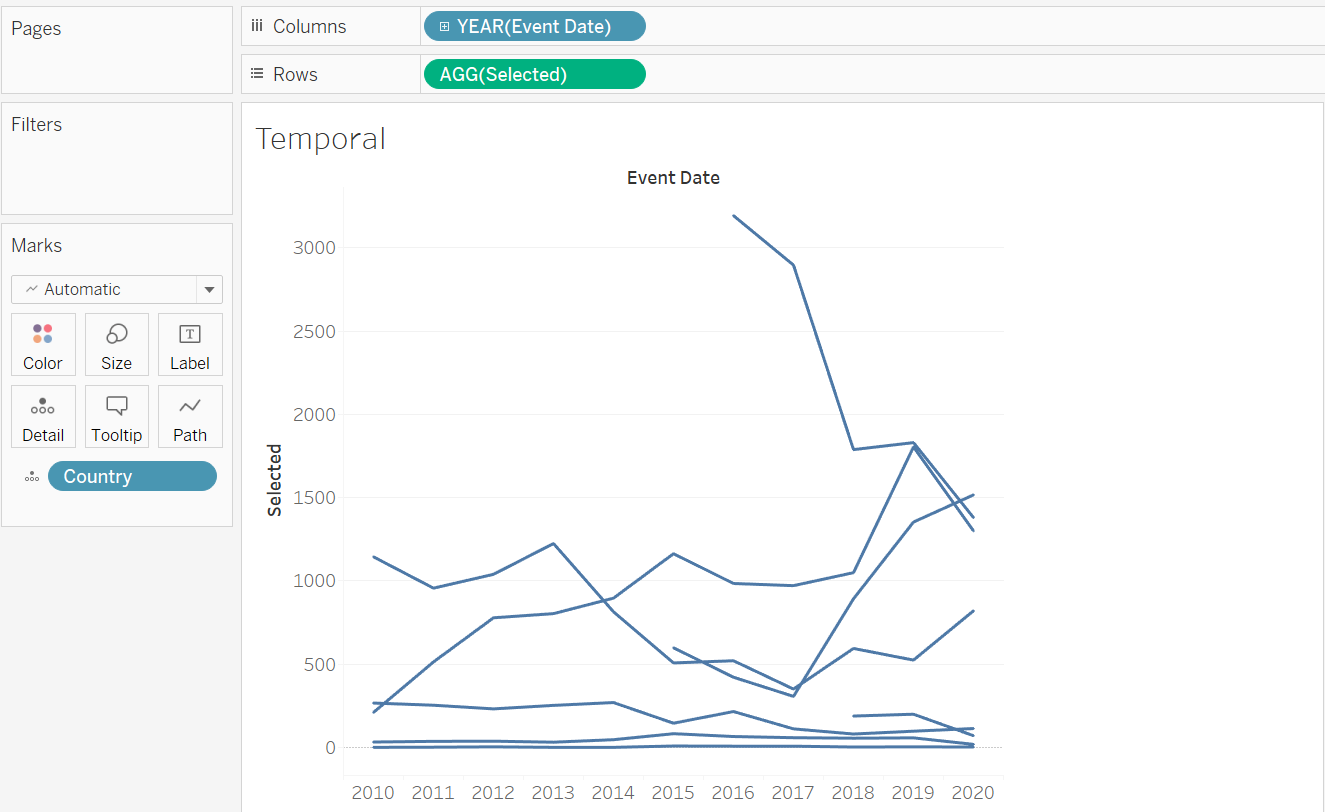

To create a basic Slopegraph, drag-and-drop the Event Date dimension to Columns, the Selected variable (that takes in user selection of either number of fatalities or events) into Rows, and Country into the Detail tab.

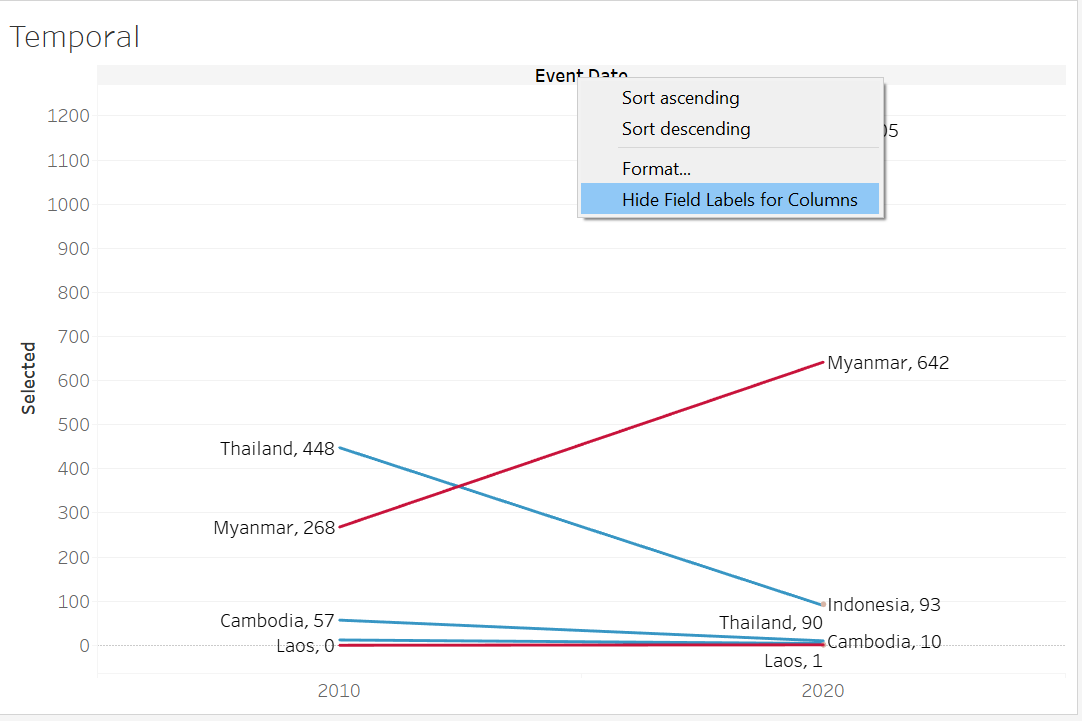

But wait… this looks like a normal line graph (that is rather messy) and nothing like slope graph! Recall earlier we mentioned the need to include the First or Last variable, now is the time. We drag-and-drop it onto the Size tab.

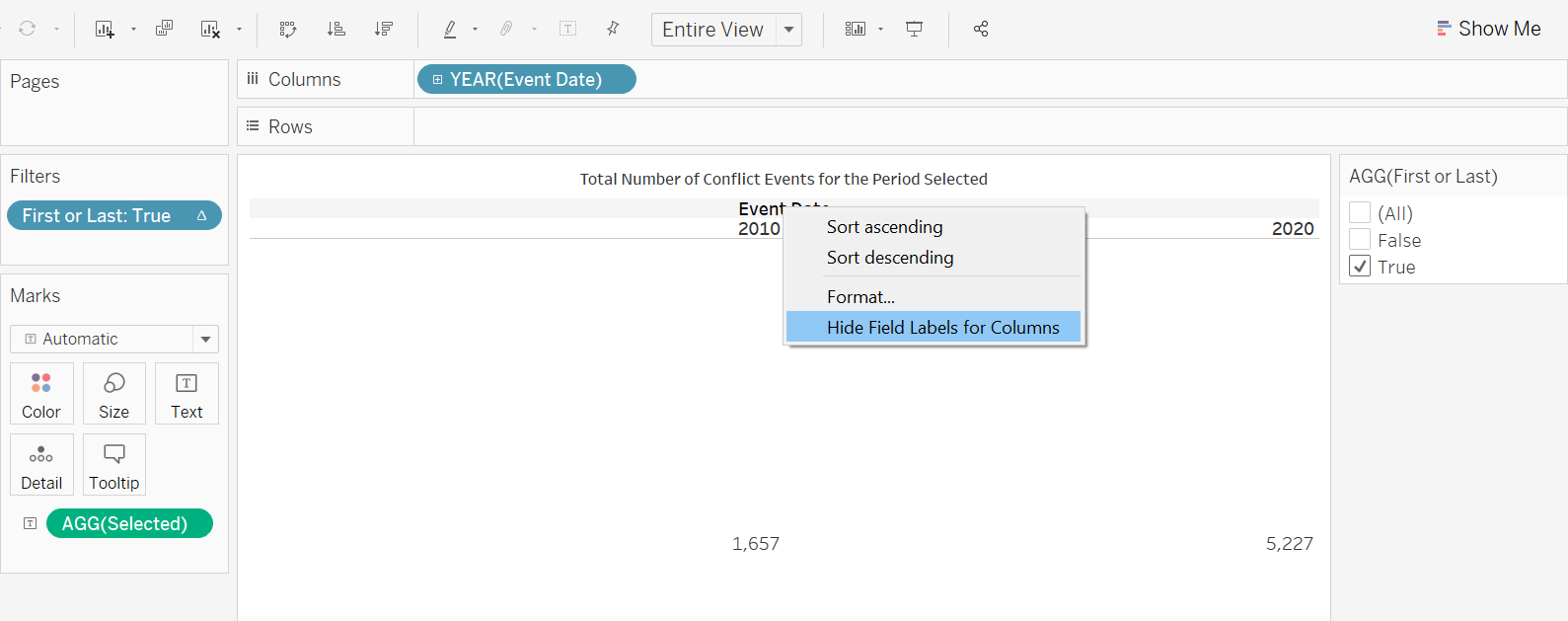

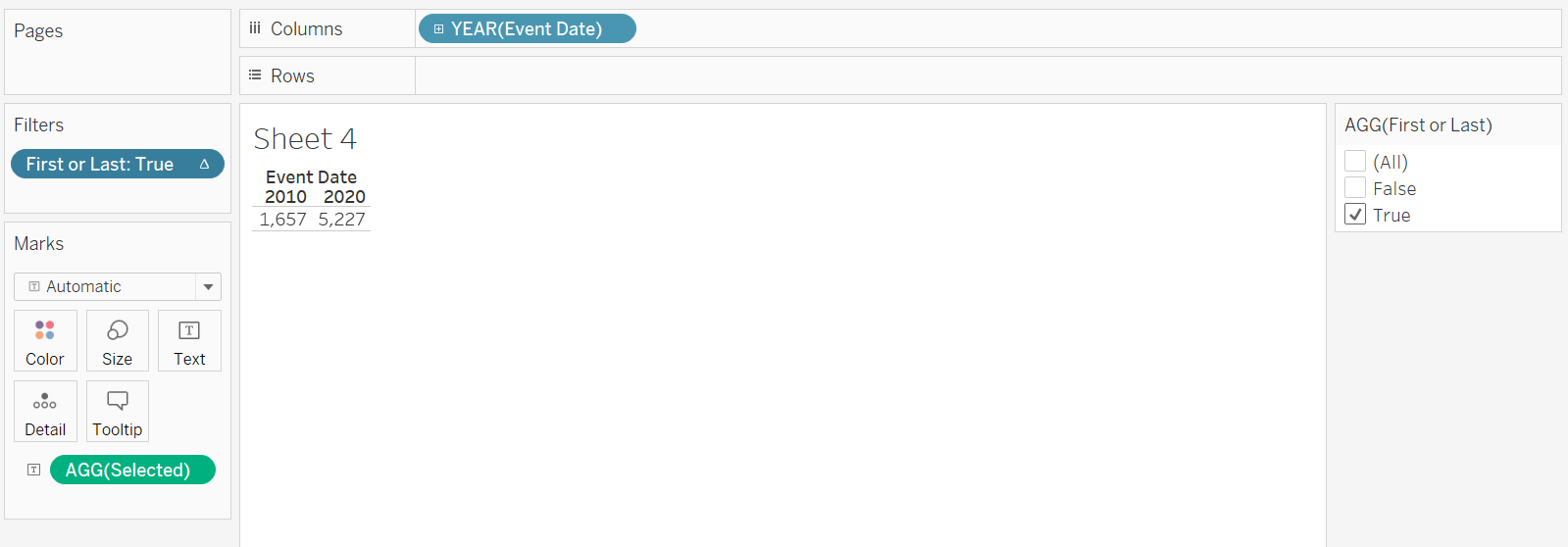

Next, we go to the right hand panel where we find the “AGG(First or Last)” distribution pane; we right-click on the False legend, and select “Hide”

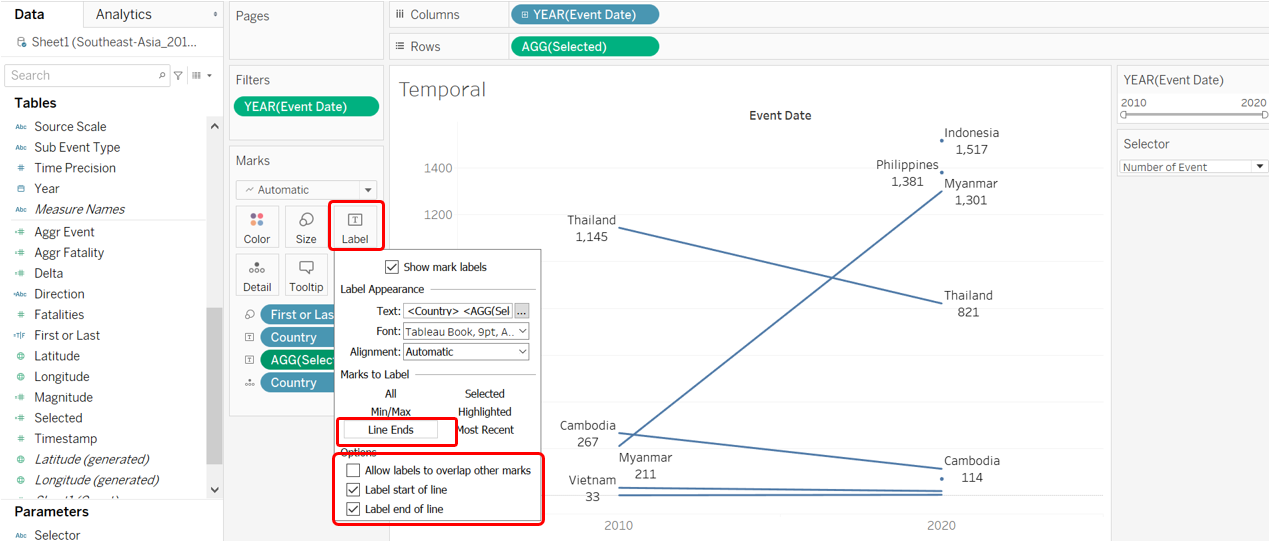

This way, we should see the lines taking shape, with only two columns, one for the starting year, and one the ending. With this, we would also want viewers to be able to change the start and end year.
Step 3.3 - Time Filter
And that brings us to the creation of a Time filter.

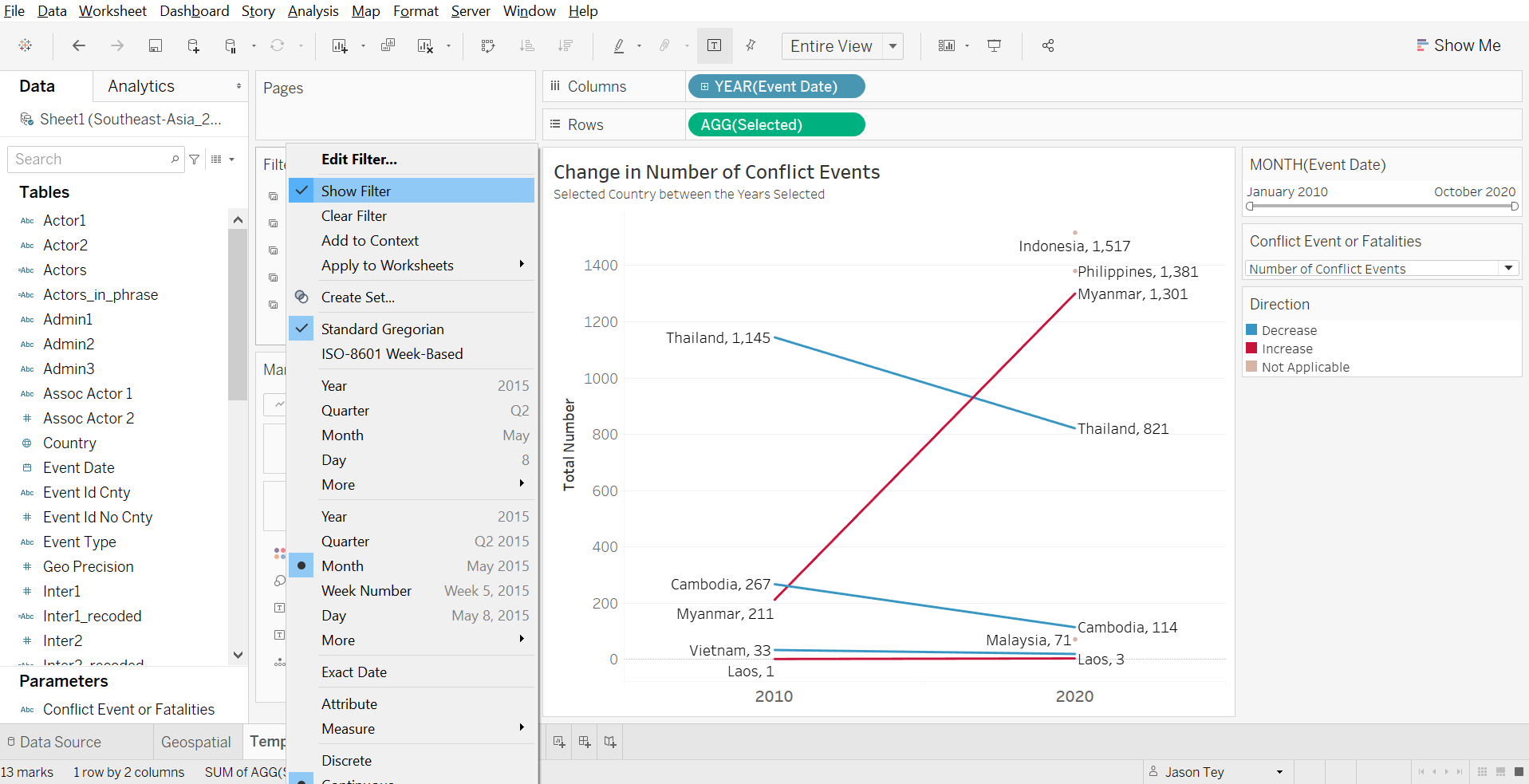

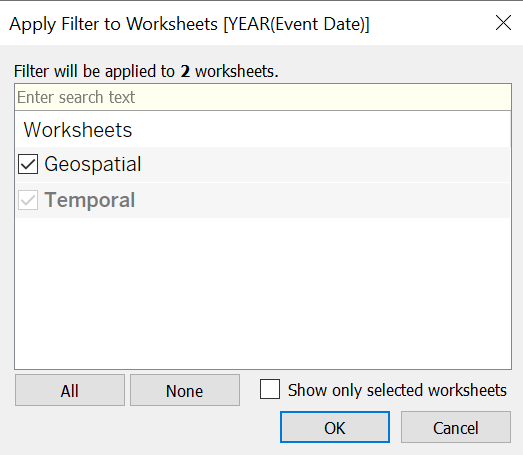

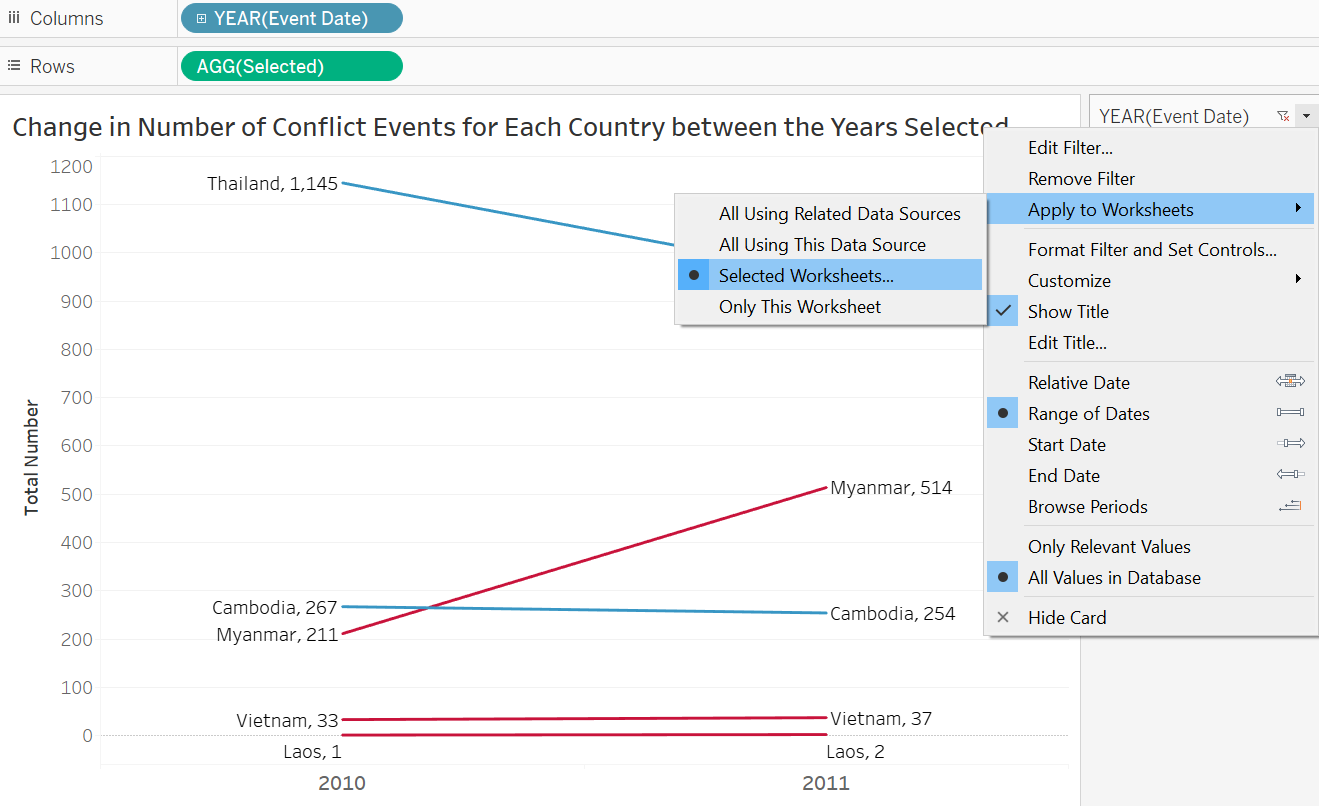

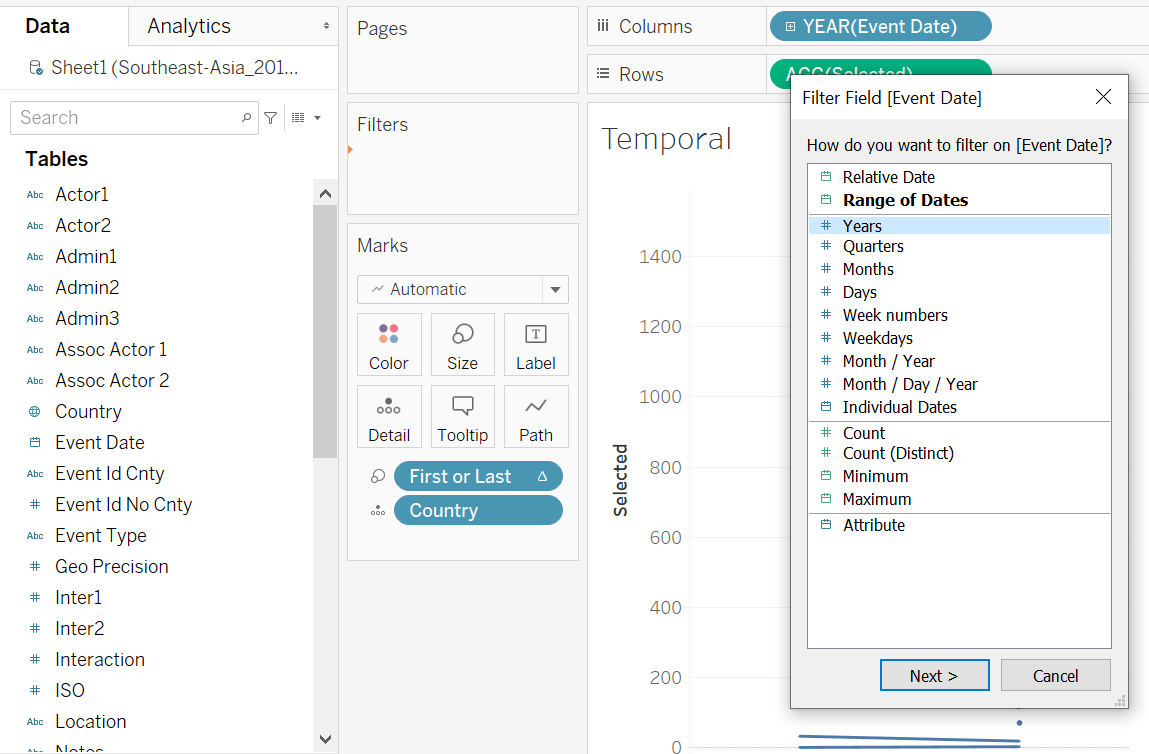

We first drag-and-drop the Event Date variable onto the Filter pane. A pop-up will appear - we select “Years” from the option list (this is just for place-holding, we will change it to month later below, with explanations)

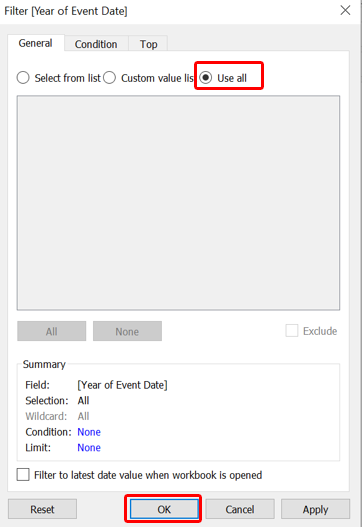

Followed by checking the “Use all” option under the General tab, then click Ok.
We notice that the Year pill under the Filter pane is a dimension (blue pill). We click on the small triangle at the right-end of the blue pill, a list will pop up - we then select the date Month option as shown. Recall in earlier discussion in Section B, there is a need for more specific temporal filter to analyze changes for particular period of interest (e.g. from June 2016 onwards in the Philippines for President Duderte’s term), hence, while we change the filter date type, we also change to allow more in-depth, per-month analysis (instead of leaving it as Year). The pill should turn green in color.
A window will pop up, and we select the “Range of dates” option, leaving all the other settings unchanged.

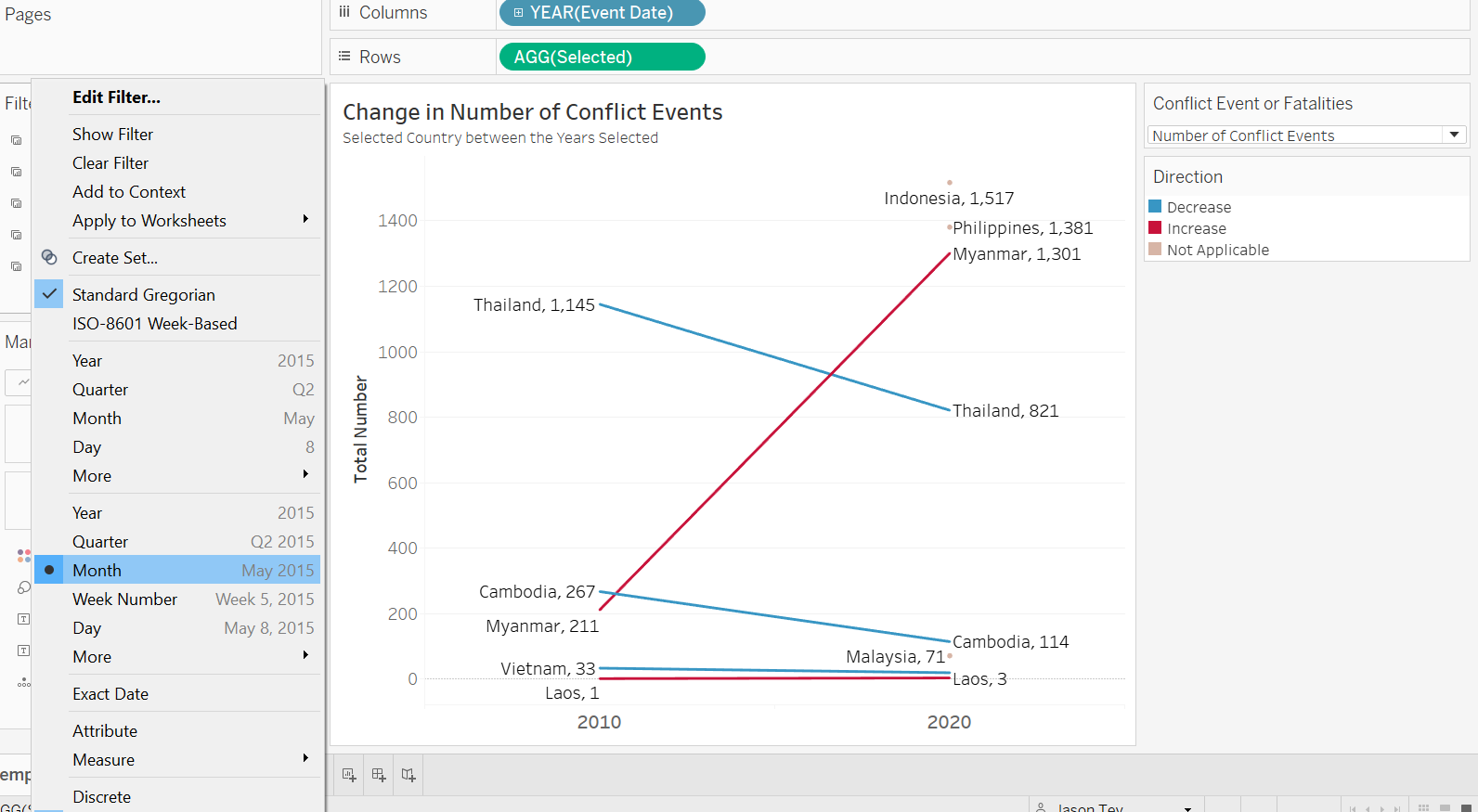

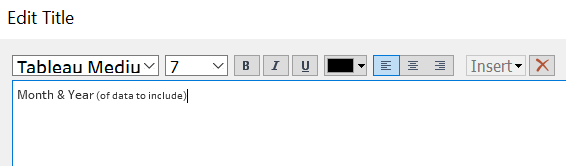

Lastly, we click on the triangle at the right-end of the pill (this time green) again - check on “Show Filter”

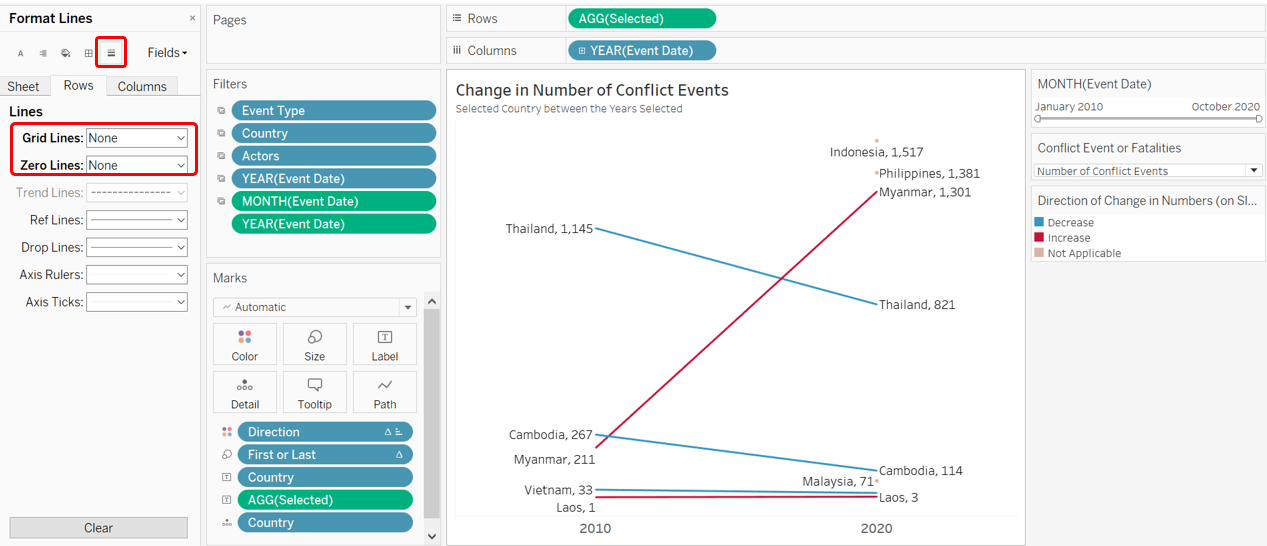

Step 3.4 - Aesthetic Enhancement
Entire View

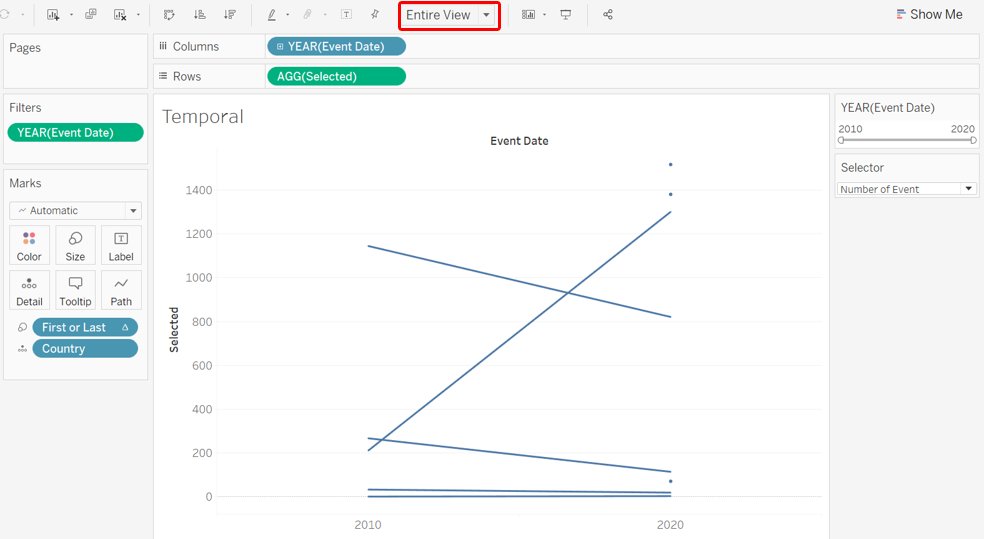

First thing first, we change the view to “Entire View”
Chart Labels
Next, we add in labels on both end of the line to enhance clarity. We click on the Label tab, then select “Line Ends” as the option (see below), unchecking the “Allow labels to overlap other marks” option, and make sure the option for both “Label start of line” and “Label end of line” are checked.
We also want to edit the label to let the country and numbers be in one line
Direction
We make use of colors to make the direction of change more obvious. Drag-and-drop the Direction variable into the Color tab

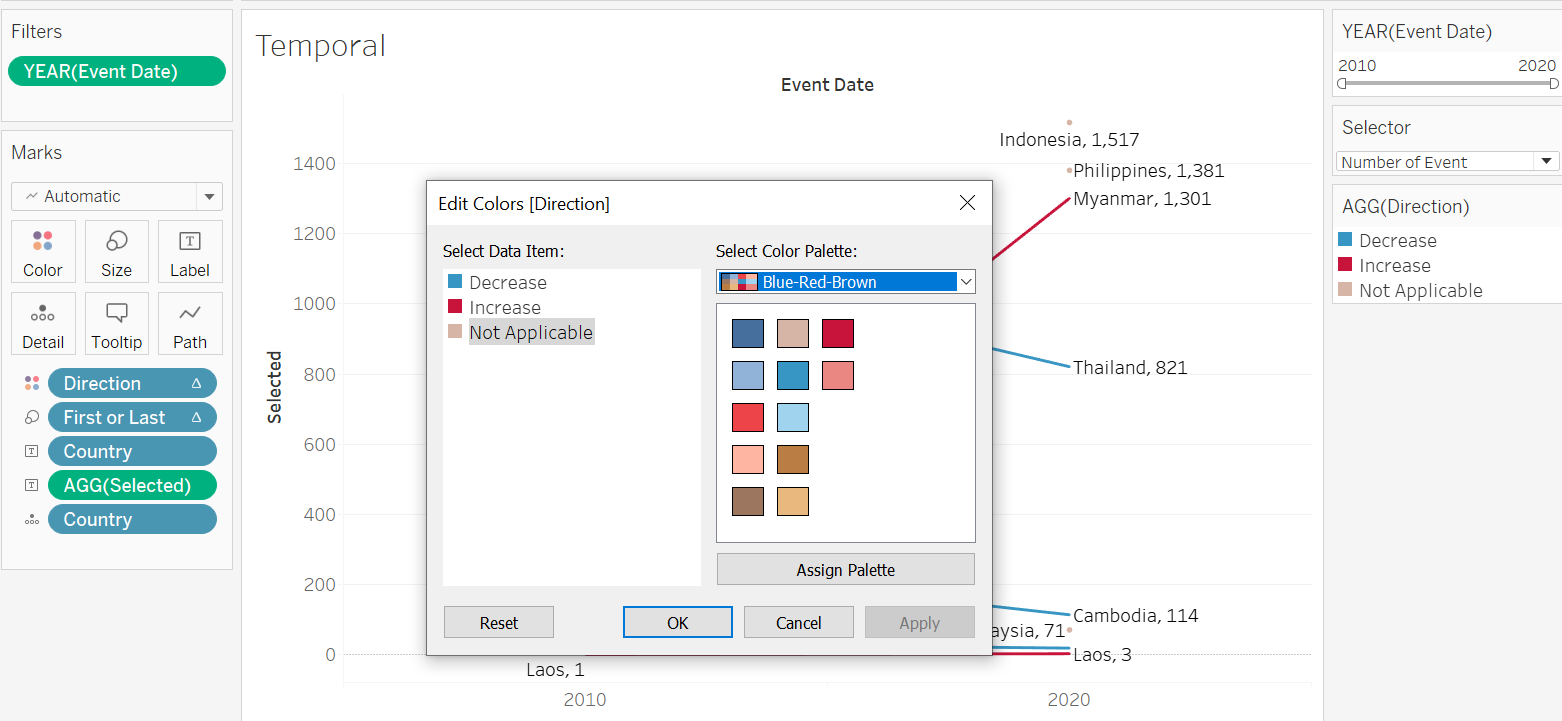

Double-click on the AGG(Direction) legend pane to edit the color - we want blue to denote decrease (since decrease in conflict event or fatality is good), while red to denote increase in the unfortunate numbers. We select the Blue-Red-Brown palette, then make the appropriate changes. “Not Applicable” in this case denotes countries where either the start or the end year data is not found (and hence we cannot visualize the change between the two years)
Title Labels
We hide the field labels for columns by right clicking the lable (“Event Date”), then selecting the “Hide Field Labels for Columns” option

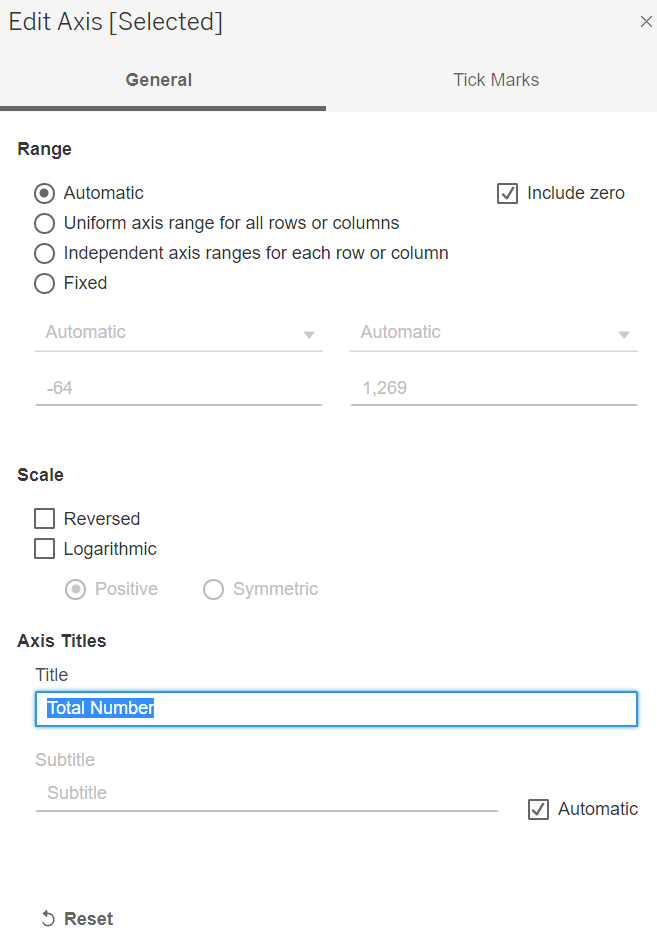

Next, we edit the y-axis title by right-clicking on the axis title, then selecting “Edit Axis”, the screen below will pop up - amend the title to “Total Number” while keeping the other settings unchanged
Title

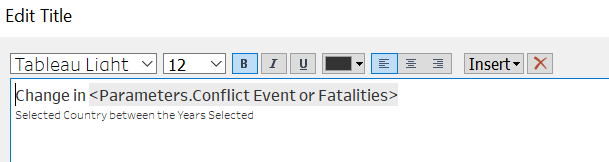

Next, we change the title to something more accurate by double-clicking on the viz title, and changing it to the following:
Step 3.5 - Tooltip

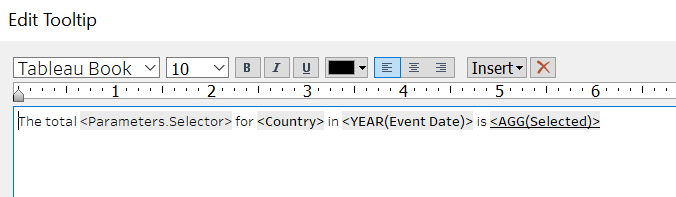

And finally, we include Tooltip by clicking on the Tooltip tab and making the changes as follows (all variables needed should already be within the original Tooltip):
Step 3.6 - Reducing Non-Data Ink
And before we go, we make an effort to reduce the non-data ink. Since we have the label for the count/fatality numbers, we do not really need the axes and the accompanying gridlines. We can proceed to remove them. Firstly, for the axes, we right-click on it, and uncheck the “Show Header” option
Next, we also remove the gridlines. First by right-clicking on the viz, then select the “Format” option - the left panel will change. Select the icon for gridlines, then change the Grid Lines and Zero Lines under the Rows pane to be None.
We now have the final Slopegraph!
Part 4 - Interactive Dashboard
Step 4.1 - Linking Filters
Before we even create the Dashboard, we would need to link up the various filters across the two different sheets in order for the filters to apply across viz from from sheets.
At the Temporal Slopegraph sheet, click on the small triangle on the top-right corner of the Year filter pane. Select the option “Apply to Worksheets”, then choose “Selected Worksheets…”
Next, check the other worksheet (in this case, “Geospatial”), in order for this filter to also apply to the geospatial dot density map viz.
Similarly, we return to the Geospatial Worksheet and do the same to the Actors, Country, and Event Type filters.
Step 4.2 - Creating Dashboard

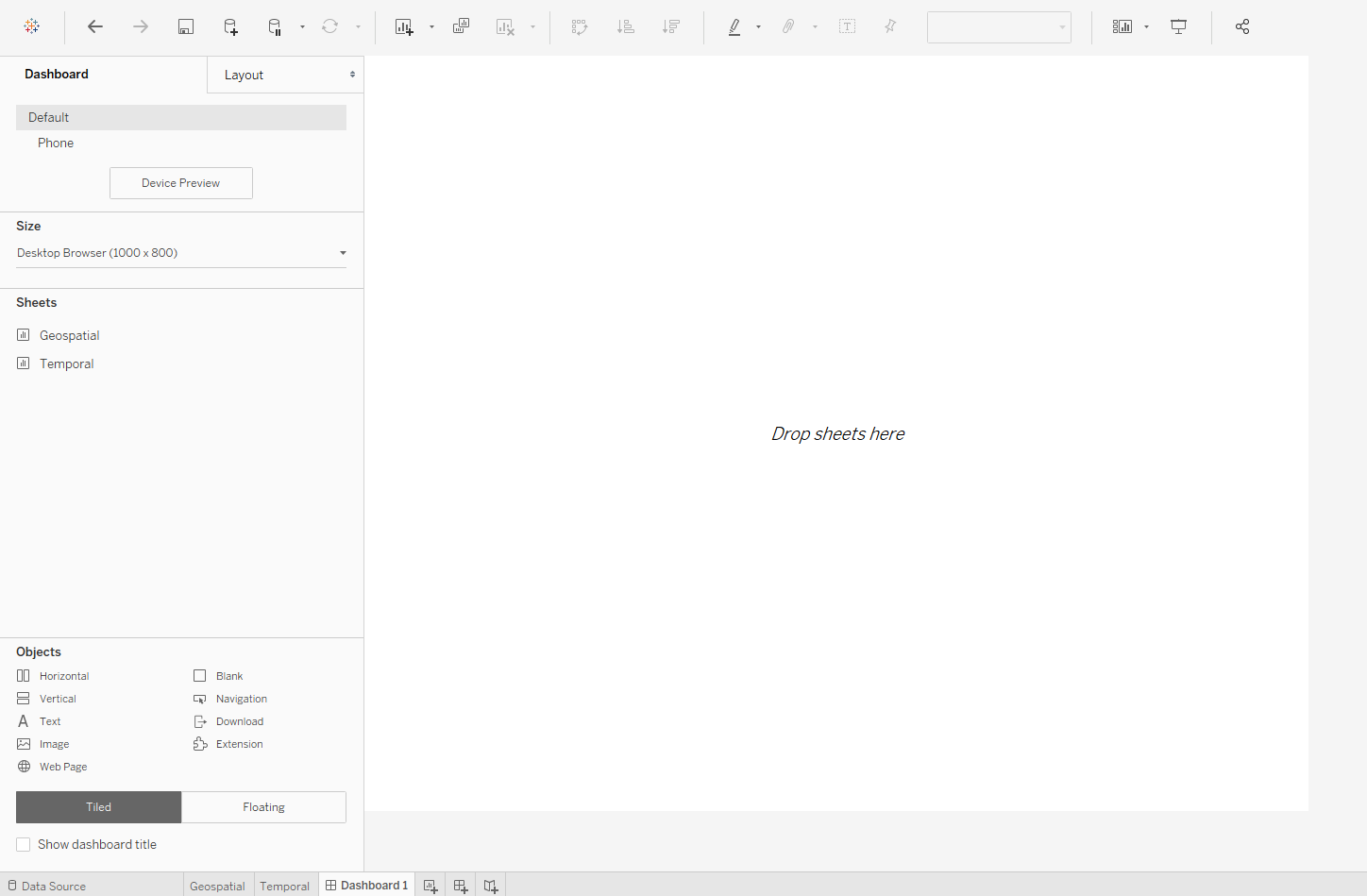

Now we commence with the creation of Dashboard by first clicking on the “New Dashboard” button at the botton of the viz (beside the Worksheet tabs).
Then drag-and-drop both the Worksheets onto the canvas
Change the Size from the default “Fixed Size” to “Automatic”
Rearrange the Filters and Parameters as such:

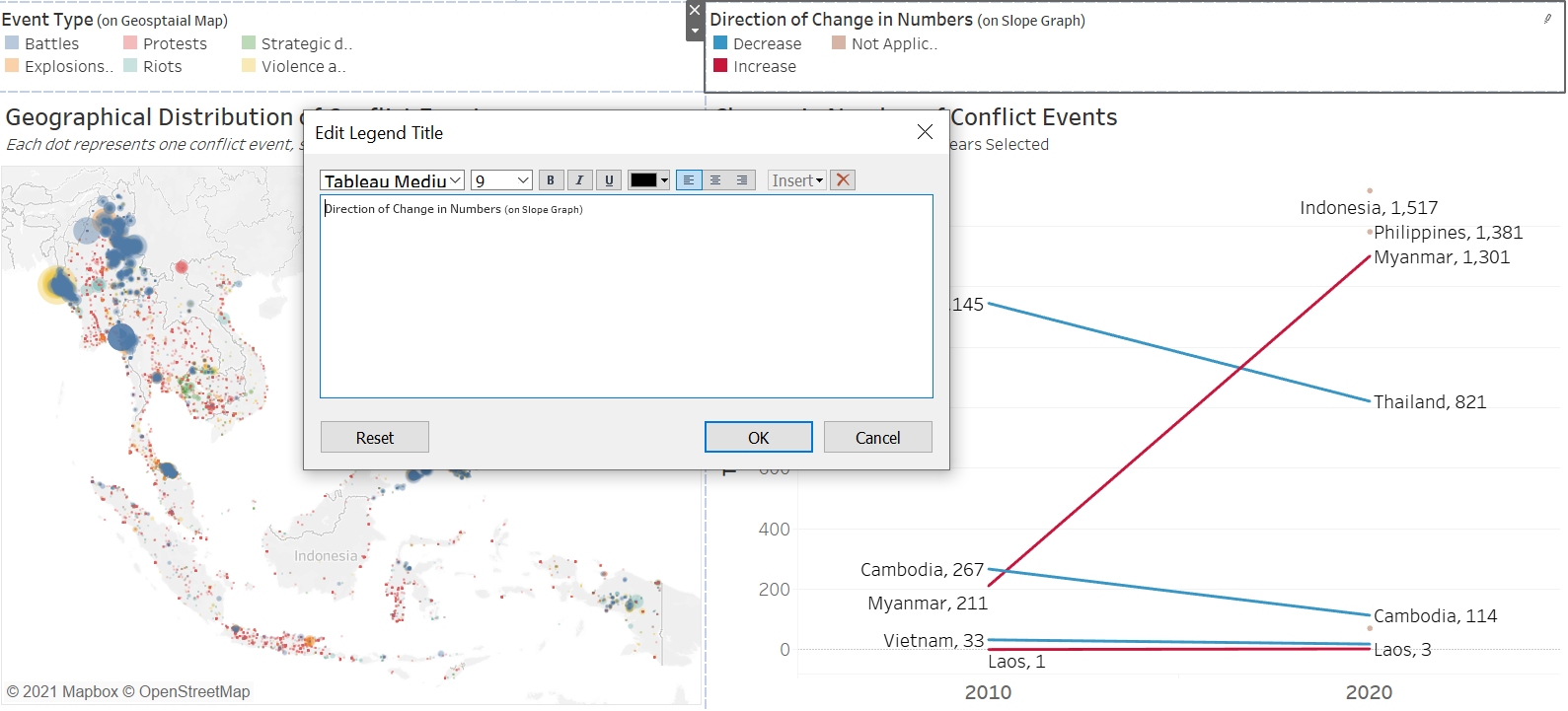

Amend the filter and legend to enhance clarity. For the Month and Year filter:
For the geospatial map color legend for event type:
For the temporal slope graph color legend for direction of change:

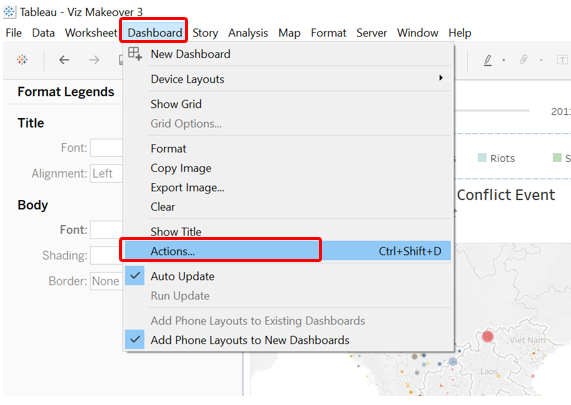

Add in Action to interlink the two sheets. First click on the Dashboard tab at the toolbar, then select “Actions…”

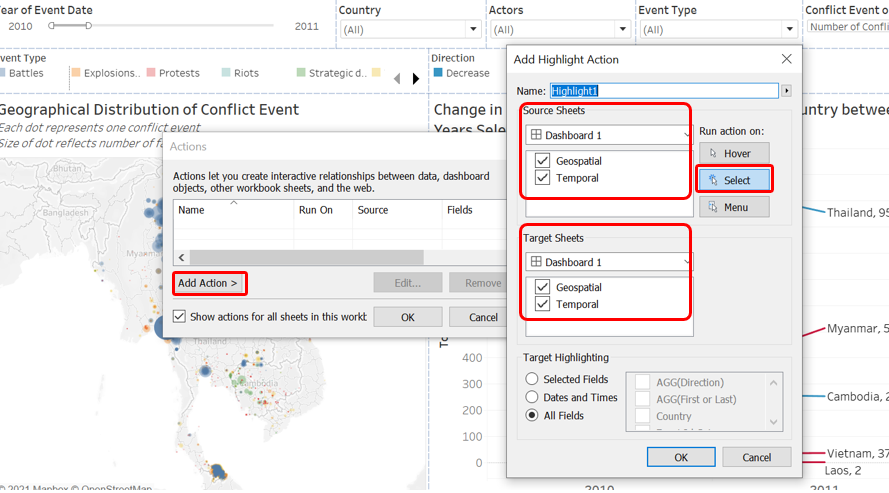

At the popped up window, select “Add Action >” then choose “Highlight”. At the Add Highlight Action window, make sure both sheets are selected for both the Source Sheets pane and the Target Sheets pane. Run action on “Select” then click OK
We check that when the slope line for Myanmar on the temporal viz is selected, only dots in Myanmar are highlighted to confirm the action is working. The converse is also true - when a dot in Myanmar is selected, only the Myanmar slope line should be highlighted.
To bring it a step further, we now want the dots to zoom in on a particular country when we click on one of the slope line. To do this, we click on the Slopegraph Worksheet, and then select the funnel icon to use the temporal viz Worksheet as Filter.
We include one more additional information: the total number of conflict events or fatalities for the period selected. We first open up a new worksheet, drag-and-drop the Event Date onto the column, Selected field onto the Rows, First or Last onto Filters, then under the “Show Me” tab, select the data table option.
On the filter tab, uncheck “False” for the First or Last filter.

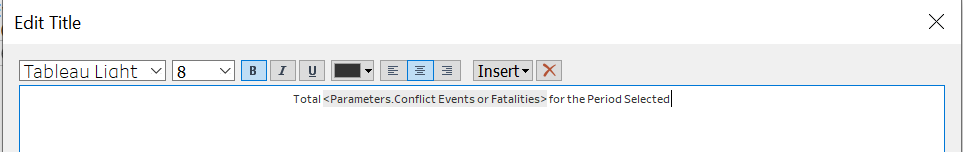

We make an edit to the title to give it a proper name
We right-click on the title, select the Hide Field Labels for Columns to hide away the Column field label, which is not needed. Remember to also select “Entire View” for the view.

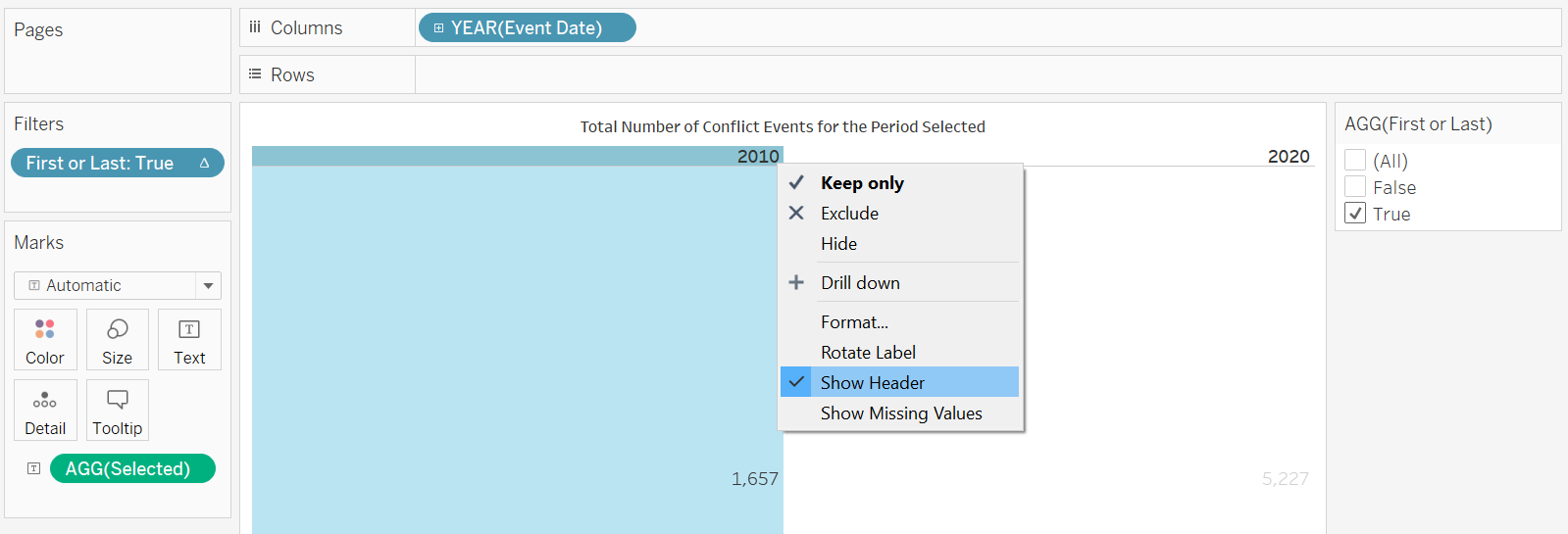

We also high away the column header by right-clicking the header then uncheck the “Show Header” option
Back at the dashboard, we drag-and-drop the Sheet (here named “Number”) onto the bottom of the Slopgraph. Make the necessary re-sizing of the container as follows:
And with that, we have the finalized visualization!
Section E: Observations
Observation 1 - Protests are everywhere within the region
From the geospatial map, one key observation is that Protests (in red colors) are dotted around the region with almost every country visible having some red dots somewhere within its boundaries.
Protests are generally peaceful with no (or very few) casualties as evident in the small dots and verified by hovering over the dots to look at the fatality numbers.
One visible exception, though, is the military crackdown on ethnic Hmong Christians in Dien Bein, Vietnam on 5 May 2011, where 28 protesters were killed (and hundreds missing).
One interesting observation about the protests: for Vietnam, Indonesia, and Malaysia, many of the red dots (protest events) can be found along the coastal area. This is likely due to the fact that civilizations are more likely to start from areas with water sources or coastal areas, and these areas are today more likely to be areas with economic and social weights (e.g. special economic zones, administrative capital, seat of government, or heritage city)
Observation 2 - Battles are the most deadly event types
While Protests are the most ubiquitous, Battles (in blue dots), on the other hand, are less widely-spread within the region; it is more commonly observed only in Myanmar and the Philippines in the last decade. However, dots representing battles are visibly much bigger in size than any other colors (Event Types) - that is, many of these individual battle events are very deadly.
Even while the battle events concentrate only in Myanmar and the Philippines, there appears to be some difference in their deadliness - blue dots in Myanmar are visibly much bigger than those in the Philippines.
One of the biggest blue dots (i.e. battle event) in the Philippines saw 39 fatalities reported resulting from a clash between rebel group Abu Sayyaf and the state force.
On the other hand, the two deadliest battle events in Myanmar (one in Kayin in Jan 2011, the other in Sagaing in Jun 2015) both lead to 115 estimated deaths each.
The single most deadly event in the past decade within the region, though, is an infamous Violence against Civilian event (yellow dot), that saw 243 fatalities during Myanmar military and police force’s killing of Rohinya villagers in the Rakhine state on 28 August 2017.
There also appears to an anomalously large blue dot in Southern Thailand (see figure above), however, on closer examination, this “dot” is actually formed by numerous smaller but highly concentrated blue and yellow (Violence against Civilians) within the southern Thailand states.
While dot density provides a nifty overview of the geographical spread, there is definitely still a need for viewers to conduct due diligence to explore the visualization to make sure they are not misinterpreting what they appear to be seeing.
Observation 3 - Number of conflict events increased manyfolds through the 2010 decade, mainly driven by conflicts in Indonesia, Myanmar and the Philippines
At the start of the 2010 decade, Thailand had the most annual number of conflict events at 1,145 (the Yellow Shirts vs Black Shirt supporters), followed by Cambodia (267 events), Myanmar (211). Vietnam (33), and Laos (1).
From the start of the 2010s to the start of the 2020s, we see the annual numbers of conflict events decrease for Thailand, Cambodia and Vietnam, while Laos saw a slight increase (from 1 to 3 events). The one big increase in conflict event (the red line with steep slope) is in Myanmar, which increased almost 400% from 211 to 1,158, surpassing Thailand’s 1,145 (which was the highest in 2010) at the start of the decade. Total number of conflict events also more than tripled from 1,657 at the start of the 2010s to 5,227 at the start of the 2020s. Indeed, the 2020 numbers looks even more worrying considering that it was only based on 10 months of records available.
In fact, Myanmar was not even the country with the most conflict events for the first 10 months of the 2020s - Indonesia with 1,517 and the Philippines at 1,381 ranked first and second respectively. The reason we see them as a dot instead of connecting lines is only because there were no data available back from 2010.
Number of fatalities also showed similar patterns: with Myanmar’s numbers rising sharply and Thailand’s decreasing.
The four countries with the highest number of event counts also coincides with the four countries with the highest fatality counts.
One curious observation, though, is that Indonesia has a relatively lower number of fatalities (93) even though it has the largest number of conflict event (1,517). This is in contrast with Philippines, which has lesser events (1,381) but largest number of fatalities (1,205). It shows that events in Indonesia are much are “peaceful” in comparison to the deadly ones in the Philippines, even though they both rank high on the event counts.
This once again points to the importance of distinguishing the number of events from the number of fatalities - having a lot of conflict events may not necessarily say anything about the impact/deadliness of the conflicts.
Observation 4 - Between 2018 and 2019, Myanmar saw the steepest increase in both conflict events and fatalities
We next shift our focus to the years with full data for all countries: 2018-2019.
From a broader perspective, we observe that most of the countries had an increase in number of conflict events from 2018 to 2019. The largest increase in conflict event is in Myanmar, where we notice a very steep incline, with the numbers almost doubling. Only Thailand, in blue, saw a slight (almost horizontal) decline. The Slopegraph did not show any of the lines criss-crossing, reflecting that the rank in terms of conflict event counts did not change among the countries between the two years.
We once again observe similar trends in the fatality Slopegraph - in fact, the steep increase for Myanmar is even more pronounced for the fatality counts:
From the geospatial map, we notice that these events are mainly concentrated in two regions in Myanmar surrounding two separate conflicts - the Shan region conflict between the State and Rebel Group (Brotherhood Alliance) and the Rhakhine state clash also between the State and another Rebel Group (Arakan Army) - both deadly conflicts that resulted in high death counts (as evident in the big dots, large fatality numbers, and also widely reported news by state and international media)
Observation 5 - The Philippines’ War on Drugs: Duterte’s term from June 2016
While Myanmar saw a large increase in both event and fatality counts, the Philippines are the ones who have ‘retained’ the top spot for both counts. In fact, the country saw high numbers that ranked them top since their data became available from 2016. In 2016 and 2017 (before the intensification of conflict in Myanmar in 2019), the event counts in the Philippines are more than 3 times that of the country with the next highest count (Myanmar).
Unfortunately, we do not have data before 2016. However, we can still compare the numbers before and after 1 July 2016 - the day that current President Duterte assumed office.
From January to June 2016, we see that the Philippines is already the Southeast Asian country with the highest number of conflict event, at 578 counts. There are some yellow dots (i.e. Violence against Civilians) but there appears to be slightly more blue dots (Battles) in the country.
Come July 2016, the conflict event numbers shot up more than 3-fold: conflict event counts for the second half of 2016, or the first 6 months of President Duterte’s reign, was 1,851. There is also a shift in the event type, with most of the events being Violence against Civilians (yellow dots).
Fatality counts grew even steeper: from 530 in the first half of the year, to 3,612 deaths in the second half.
Hovering over the dots, it is easy to identify that many of these events are police raids on drug suspects - operations commissioned by President Duterte as part of his “War on Drugs”

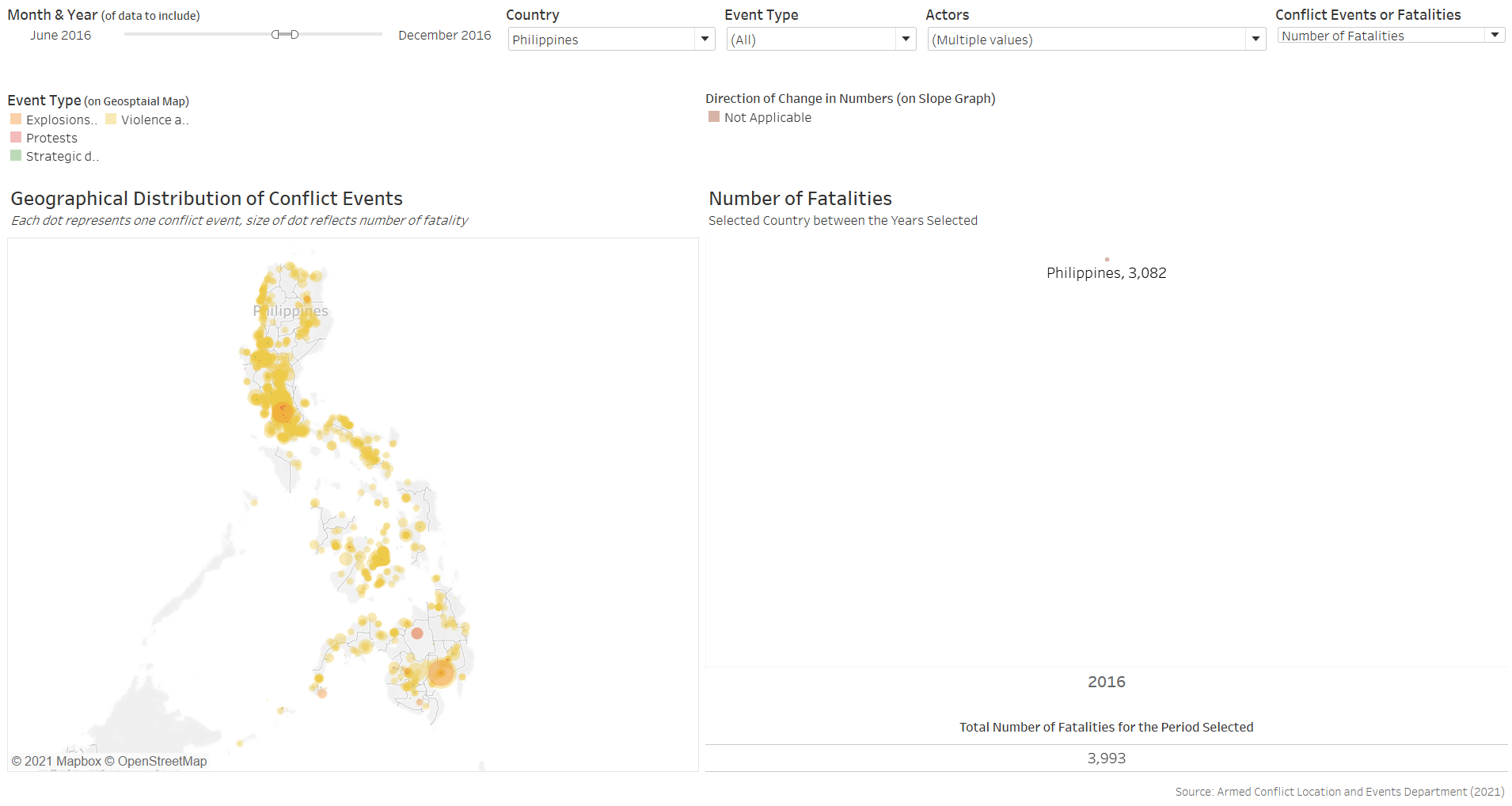

Of the 3,612 deaths in the first 6 months of Duterte’s term, 3,082 (or 85%) involved civilians or protesters.
In fact, 1,516 (or 42% of the total death due to conflict events) were by State Force on Civilians - almost all attributable to Duterte’s War on Drugs.
The program slowed thereafter, with the annual numbers dropping from 2017’s 911 death to 2018’s 749 deaths

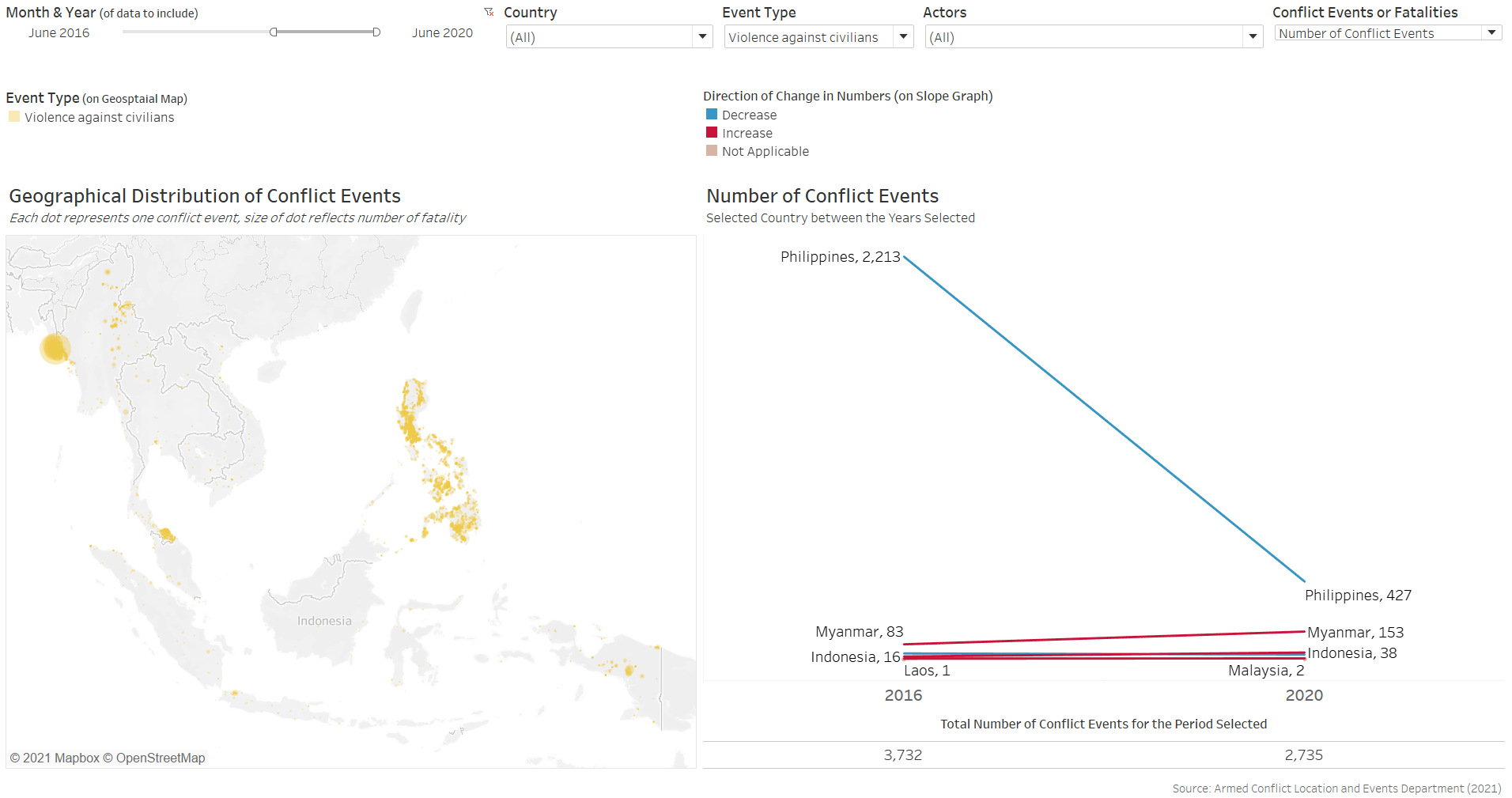

While both the numbers of events and deaths due to violence against civilians in the Philippines have seen steep decline from the second-half of 2016 (2,213 events, 3,049 deaths) to the first-half of 2020 (427 events, 493 deaths), it remains a league above the rest.
The visualization provides opportunities for user to zoom in and out to understand impact of specific events in particular country, such as President Duterte’s War on Drugs as discussed in this segment.
Additional Remarks
One of the major flaw of the existing dataset, however, is its lack of complete information for certain countries (e.g. the Philippines, with full data available only from 2016 onwards). Efforts could be put in to include these data to allow a more holistic and robust analysis of the situation in the region, especially in relation to key socio-political events.
Annex - Animating Changes on Geospatial Map
As mentioned in Section B on the further discussion on “Animating Changes on Geospatial Visualization”, the costs to animating the geospatial viz in the context of this dataset outweighs its benefits, and we will not be incorporating animation for the purpose of the makeover. However, should reader be interested, animation can be added rather easily in Tableau as the steps are straight forward.
First, we drag-and-drop the Event Date variable onto the Pages tab
Next, go to the Format tab on the tool bar, select “Animation” from the drop-down, then turn Workbook Default “On”. Change the Duration to “0.50 seconds (Medium)” and Style to “Sequential” if not already done
Finally, we head to the Dashboard and confirm that the animation is on by clicking on the Format tab on the Toolbar, selecting “Animations…” then check that it is on “On”
Do note, though, that this method would also mean the viz is unable to show the full decade long data altogether (as each year is now a page on its own that is being automatically flipped by Tableau via the animation).
